Block Ice Making Plant For Cooling Foods Vegetable Fish (MB20)
Koller MB series ice block making machines have the following types of ice blocks: 5 kg/PC, 10kg/PC, 15kg/PC, 20kg/PC, 25kg/PC, 30kg/PC, 50kg/PC , 100kg/PC . Meanwhile, we also can produce in compliance with the customers' requirements.

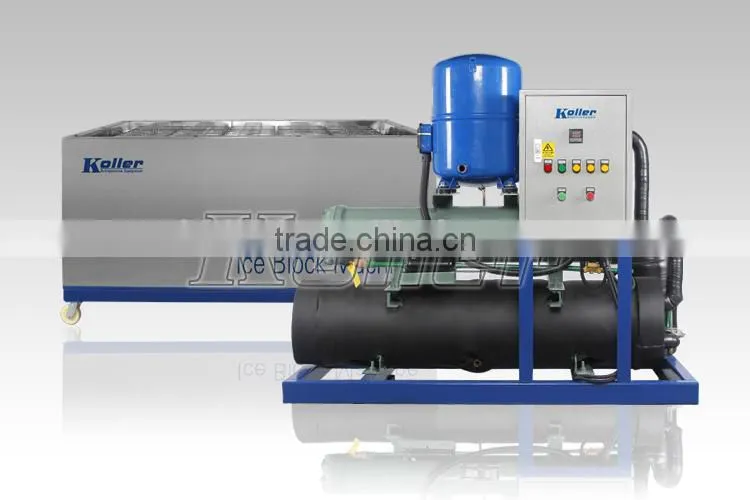

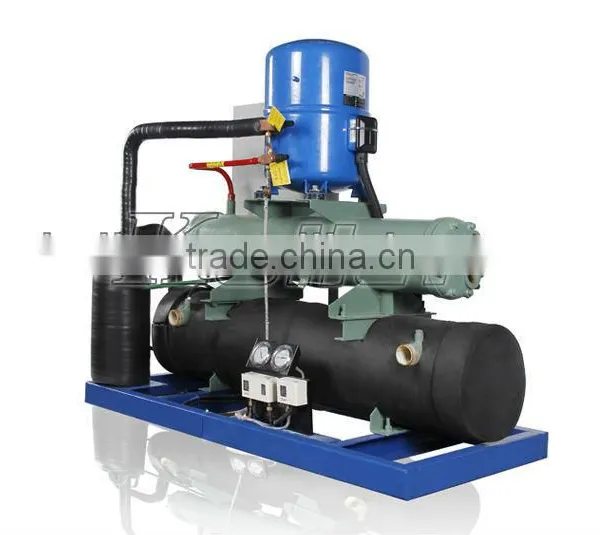

1.Industrial ice block making machine structure: Compressor unit, ice making pool and cooling tower-water cooled system(air condenser-air cooled system).It is easy to install, just need to connect the water pipes between the three parts, and supply the power wire to the machine
2. Weight of ice:5kg..10kg..20kg….. also can be done as customers’ requirement.
Standard Ice Block Size:
| Ice Size(kg) | Ice Dimension(mm) |
| 5 | 80*160*500 |
| 10 | 100*200*610 |
| 15 | 100*300*610 |
| 15 | 120*255*610 |
| 20 | 120*300*750 |
| 25 | 120*350*750 |
| 25 | 150*300*750 |
| 30 | 150*300*950 |
| 50 | 150*450*1000 |
| 100 | 220*550*1100 |
Block Ice Making Plant For Cooling Foods Vegetable Fish
Model |
Capacity tons/24hours |
Compressor Power (KW) |
Compressor Brand |
Total Power (KW) |
Cooling way |
Outer Dimension |
MB10 |
1 |
4.5 |
Manevrop/Bitzer/ Refcomp |
6 |
Air/water Cooling |
Main unit and water tanK: 2820*1480*1040 |
MB20 |
2 |
8.1 |
Manevorp/Bitzer/ Refcomp |
11 |
Air/water cooling |
main unit:1630*720*1530 Water Tank: 2300*1430*1090 |
MB30 |
3 |
11.1 |
Bitzer/Refcomp/ Copeland |
14 |
Air/Water cooling |
Main unit: 1660*860*1450 water tank: 2460*1550*970 |
MB40 |
4 |
17.2 |
Bitzer/Refcomp/ Copeland |
22.5 |
water cooling |
Main unit: 1630*730*1520 water tank:4000*1356*900 |
MB50 |
5 |
22.1 |
Bitzer/Refcomp/ Copeland |
31 |
water cooling |
main unit:1630*830*1520 water tank:3700*1450*1100 |
MB60 |
6 |
23.5 |
Bitzer/Refcomp/ Copeland |
32 |
water cooling |
main unit:1750*900*1700 water tank:3100*1630*1420 |
MB80 |
8 |
31.4 |
Bitzer/Refcomp/ Copeland |
45 |
water cooling |
main unit: 2000*850*1300 water tank:5200*1850*1100 |
MB100 |
10 |
44.2 |
Bitzer/Refcomp/ Copeland |
58 |
water cooling |
main unit: 2300*1750*1300 water tank: 6000*1750*1300 |
MB150 |
15 |
62.5 |
Bitzer/Refcomp/ Copeland |
78 |
water cooling |
main unit:2300*1750*1300 water tank:8000*2100*1200 |
MB200 |
20 |
84.6 |
Bitzer/Refcomp/ Copeland |
96 |
water cooling |
main unit:2260*1350*1330 water tank: 9380*1770*1380 |
MB250 |
25 |
102 |
Bitzer/Refcomp/ Copeland/Hanbell |
125 |
water cooling |
main unit:2300*1500*1680 water tank: (8250*1980*1350)*2 |
MB300 |
30 |
112 |
Bitzer/Refcomp/ Copeland/Hanbell |
150 |
water cooling |
main unit:2260*1800*1480 water tank:(8770*1770*1125)*2 |
MB350 |
35 |
136 |
Bitzer/Refcomp/ Coepland/Hanbell |
190 |
water cooling |
main unit:2260*1800*1480 water tank:(9000*2100*1200)*3 |
MB800 |
80 |
262 |
Bitzer/Refcomp Copeland/Hanbell |
251 |
water cooling |
main unit:5500*2000*2000 water tank:(11600*2080*1400)*3 |
MB1000 |
100 |
328 |
Bitzer/Refcomp Copeland/Hanbell |
390 |
water cooling |
main unit:5500*2000*2000 water tank:(10000*2080*1400)*4 |
- 12 months warranty after delivery.
- Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
- Over 10 engineers available to service machinery overseas.
- Free spare parts replacement within warranty period.
- Beyond guarantee period, we will charge market price for spare parts.
5.Why choose us?
- So far, we have exported ice machines to 150 countries in the world.
- Excellent Brand of Chinese Ice Machine Industry.
- The Drafting Committee of National Ice Machine Industry Standard.
- Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
- Independent after-sales department, 8 engineers are ready to service abroad.
Block Ice Making Plant For Cooling Foods Vegetable Fish
