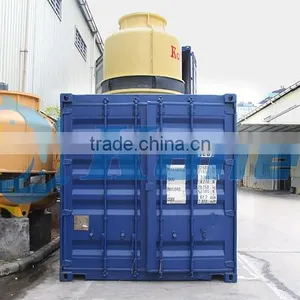

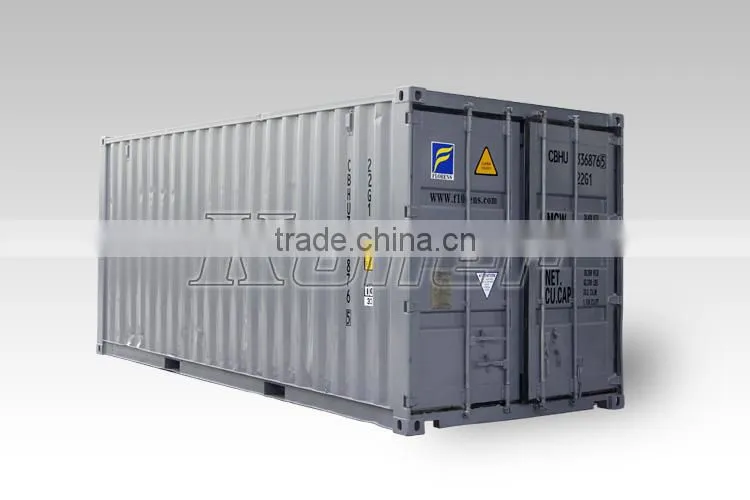

Containerized Ice Block Machine JMB50
The Koller JMB series containerized ice block machine is emerged because of the demands, feedback from our customers and our long term follow-up investigation.

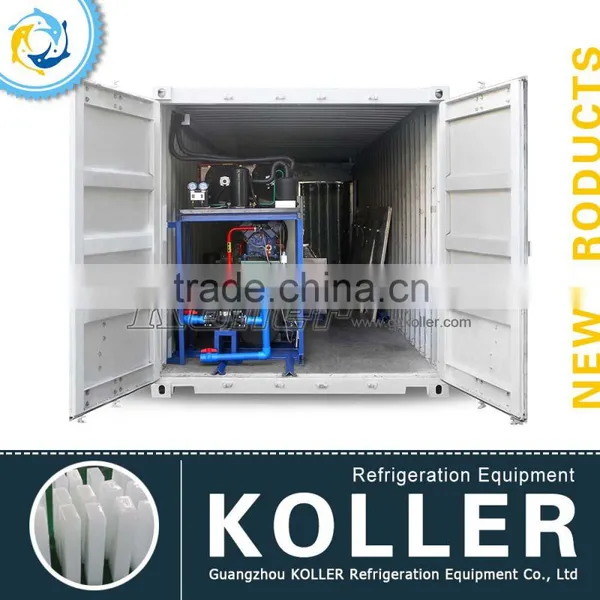

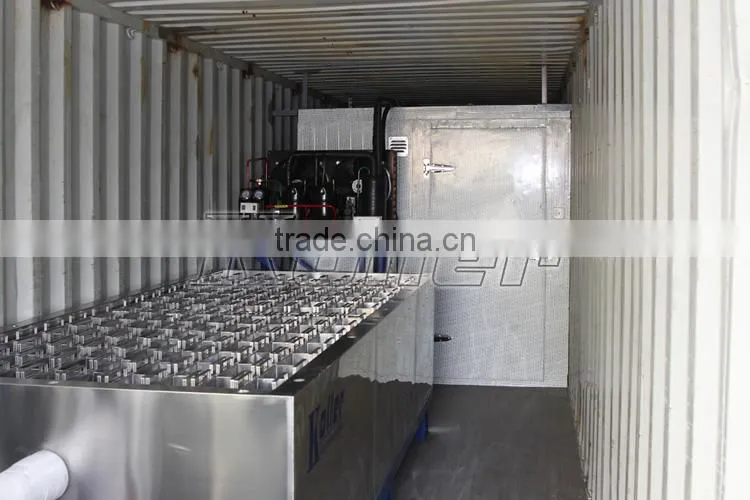

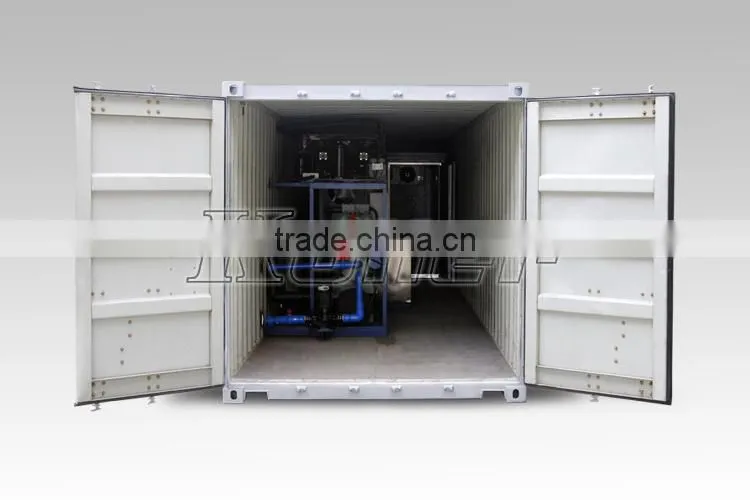

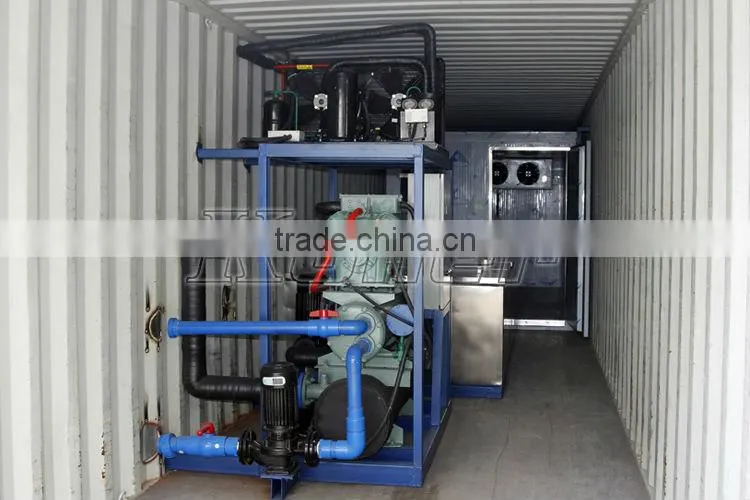

Adopt integrated refrigeration system, all equipments all are installed well inside the container. it is very easy and convenient for transportation.
It passed the ISO certificate, flat in container and broad space. Saving cost, safe and convenient,easy operation, transported by Truch and Vessel. All designs are made by your requirements.
1. Product Description
(1). Special design for the Africa, Middle East and Oceania market, performance well in the hot environment;
(2). Adopt stainless steel SUS304 for the salt water tank and ice moulds, no corrosion and low maintenance
(3). Reasonable and separated design for the structure, save space, easy to install;
(4). All dimensions of ice block machine are designed according to international standard size of the container, very easy and convenient for transportation;

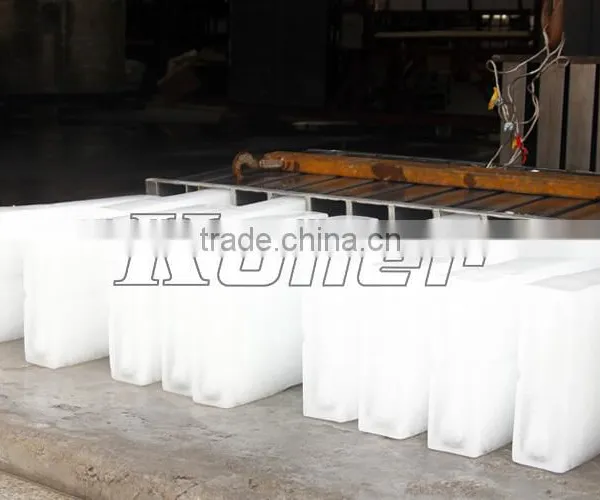

(5). Ice block size: 10kg/piece;
(6). Install according to the operation manual and CD, Supply failure alarming system, and no need worker to monitor.
2. Supply Power Form: 380V, 50Hz, 3P or 220~240V, 60Hz, 3P.

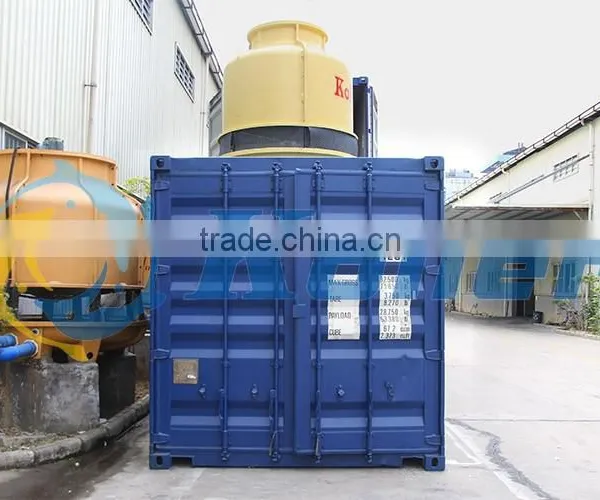

3. Cooling System: Water cooled system.
4. Installation: The machine has been installed and tested before delivery, only needs customer to connect water pipes and power, the accessory spared parts are offered free of charge.
5. Guarantee Period:
During 12 months after selling, maintenance and parts free of charge.
6. Koller Containerized Ice Block Machine Product Model:
| Model | Capacity(Tons/24H) | Ice Size(KG) | Compressor Power(KW) | Compressor Brand(France/Germany/America/Taiwan/Italy) | Total Power(KW) | Cooling Way | Notice |
|
20feet Standard Contianer | |||||||
| JMB20 | 2 | 10 | 8.1 | Manevrop/Bizter | 11 | Air Cooling | it can equip with cold room |
| JMB30 | 3 | 10 | 11.1 | Bizter/Copeland/Refcomp | 14 | Air Cooling | it can equip with cold room |
| JMB40 | 4 | 10 | 17.2 | Bizter/Copeland/Refcomp | 22.5 | Water Cooling | it can not equip with cold room |
| JMB50 | 5 | 10 | 22.1 | Bizter/Copeland/Refcomp | 31 | Water Cooling | it can not equip with cold room |
|
40feet Standard Contianer | |||||||
| JMB40 | 4 | 10 | 17.2 | Bizter/Copeland/Refcomp | 22.5 | Water Cooling | it can equip with cold room |
| JMB50 | 5 | 10 | 22.1 | Bizter/Copeland/Refcomp | 31 | Water Cooling | it can equip with cold room |
| JMB60 | 6 | 10 | 23.5 | Bizter/Copeland/Refcomp | 32 | Water Cooling | it can equip with crane but it can not equip with cold room |
| JMB80 | 8 | 20 | 31.4 | Bizter/Copeland/Refcomp | 45 | Water Cooling | it can equip with crane but it can not equip with cold room |
| JMB100 | 10 | 20 | 44.2 | Bizter/Copeland/Refcomp | 58 | Water Cooling | it can equip with crane but it can not equip with cold room |
