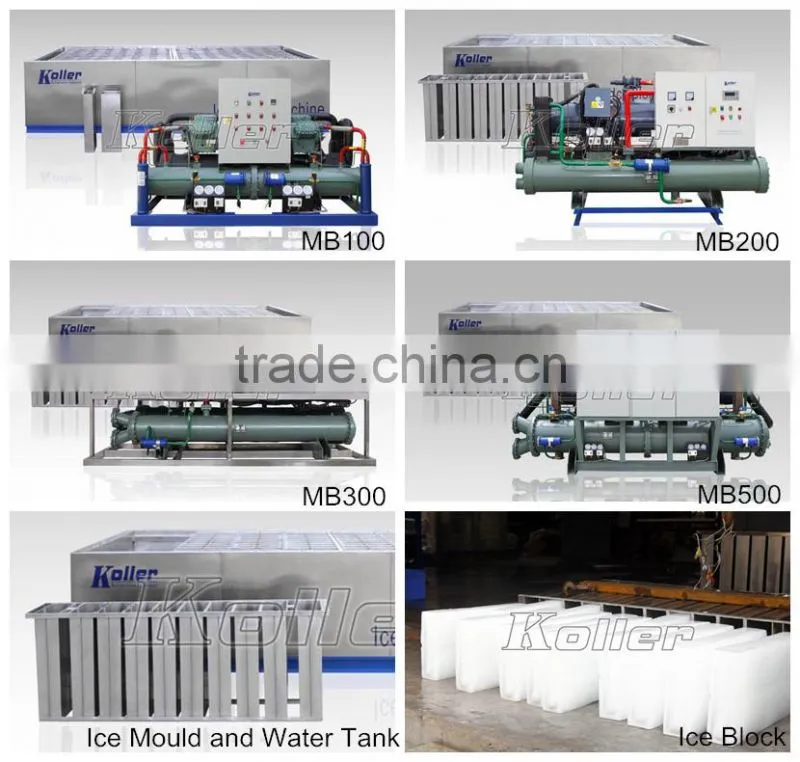

Koller large capacity ice block making machine 10 TPD with stainless steel ice mould MB100
- 50 Set / Sets per Month
- Guangzhou Port
- T/T D/P D/A Credit Card PayPal
- 200kg Dry ice pellets making machine for dry ice production
- New York Liquid Flowmeter 024W26116-002 Flow Switch HF68 Mechanical Target
- New slide valve potentiometer coupling 111Q0451313
- New Kunteng 5 motherboard 649C1152G01 York FRICK circuit board 649C1158G01
- New York FRICK Industrial Refrigeration Unit 649C1091G01 Kunteng 4-LX Control System Main Board
- New GEA explosion-proof energy level sensor model 62750016
Product Details
Condition: | New | Capacity: | 10 tons / 24 hours | Place of Origin: | Guangdong, China |
Brand Name: | Koller | Model Number: | MB100 | Ice Shape: | Other, block ice |
Voltage: | 3380V,50HZ,3P/220V,60HZ,3P | Power(W): | 84600 | Dimension(L*W*H): | 2260mm*1350mm*1330mm |
Weight: | About 5000kg | Certification: | CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
KOLLER MB Series Ice Block Machines are new-type design with high efficiency and stable capacity,
perform well in Tropical area such as Africe, Middle East and Oceonia. This kind of ice block machine uses

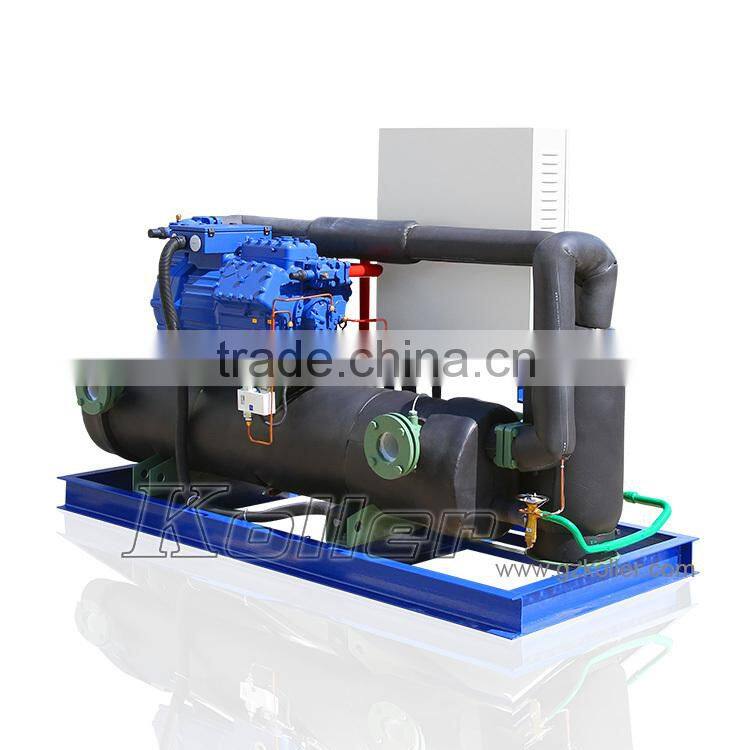

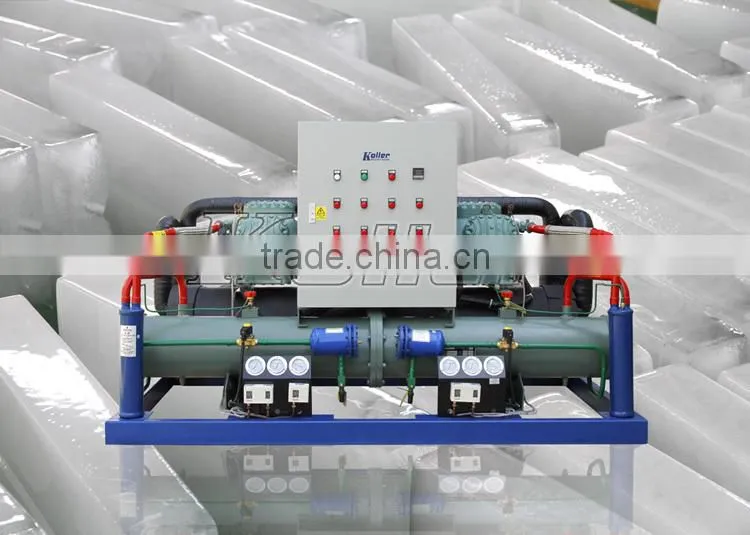

brine water as cooling medium in making ice. So a whole set of ice block machine may consists of 2 parts:
machinery unit and brine water tank.
You just need to connect it well with water and power then you can begin to make ice.
Koller large capacity ice block making machine 10 TPD with stainless steel ice mould MB100
Ice blocks Application:
- To fishman or fishboat at the harbor.
- Wholesale to food markets, restaurants, hotels for fish, meat, vegetable storage.
- Long-distance transport truck for food storage.
- Concrete cooling in construction projects.
- To small retailers for resale.
- To end users for cooling drink, keep food fresh.

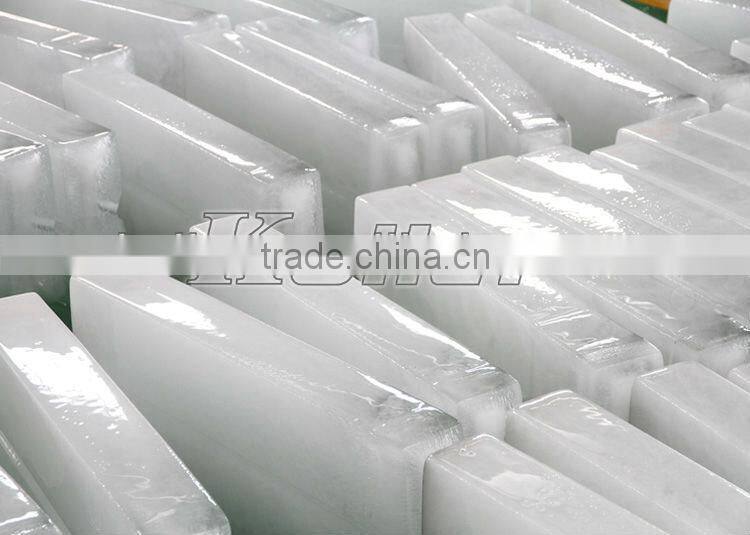

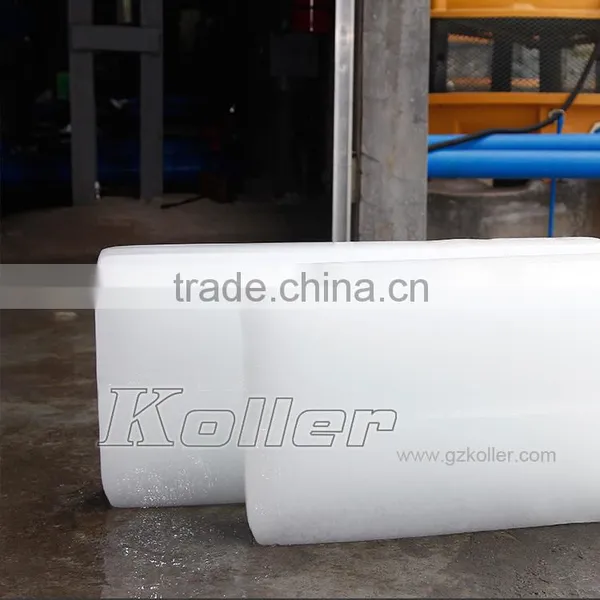

For MB100 block ice machine, the standard block ice size is 25kg/piece
Working condition for ice block machine:
Max. Ambient Temp | +40°C |
Max Relative Humidity | 85% |
Supply water temp | 21°C |
Power supply | 380V 50/60HZ 3P or 220V 60HZ 3P |
Refrigerant | R22/R404a |

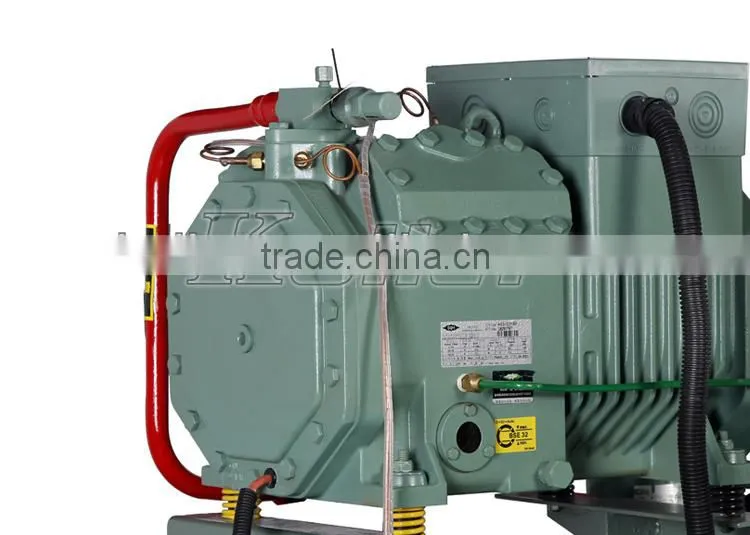

Compressor type | Semi-hermetic piston or Screw compressor |
Cooling system | Water cooling condenser |
Koller block ice machine introduction:
1. HIGH EFFICIENCY:
The production of our ice block machine can reach at least 80% in summer. When the environment temperature is below 23°C, the production of our ice cube machine can reach 100%.
2. Low Power Consumption:
The biggest feature of our ice block machine is lower power consumption. The power consumption of our ice block machine only reaches about 85kW.H for producing 1 ton ice cube. When the environment temperature is below 23°C, the power consumption of our ice block machine is from 70kW.H to 80kW.H.
3. Easy Operation:

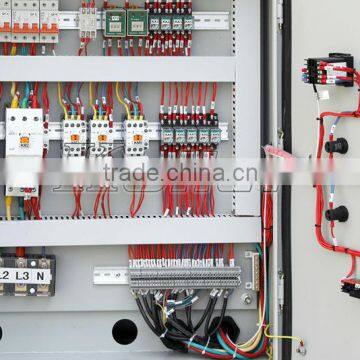

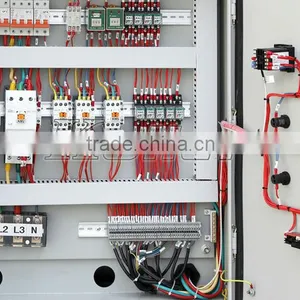

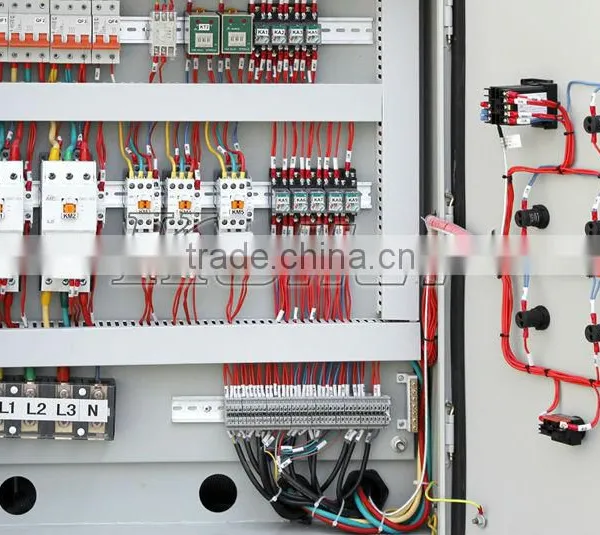

Our ice block machine has been adopted Germany Siemens PLC microcomputer controller, self-adjustment for ice thickness, self-adaptation for ambient temperature and balance between automatic ice forming and water supply. Manual operation is not required.
4. Optional Equipment:

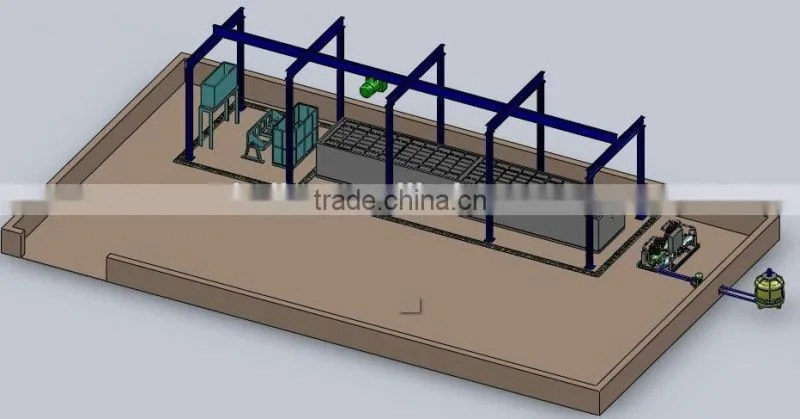

we can also provide the related products, like ice storage room,and crane systeem, etc
This kind of ice block is strong and hard, do not melt easily, which is suitable for long-termand long-distance storage. When using it, you can cut it into small pieces for fishery or cool your drinks and beverage.
It is the best choice for bars, hotel, restaurant and any oher places where need ice.
Installation for block ice machine:
1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by Koller engineers:
We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
Warranty:
- 12 months warranty after delivery.
- Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
- Over 10 engineers available to service machinery overseas.
- Free spare parts replacement within warranty period.
- Beyond guarantee period, we will charge market price for spare parts.
Why choose us?
- So far, we have exported ice machines to 150 countries in the world.
Our clients is widely-spread in over 150 countries like Malaysia, Philippine, Indonesia, Vietnam, Papua New Guinea, Australia, Fiji, French Polynesia, South Korea, Cyprus, Greece, Belgium, Croatia, Ireland, UK, Jordan, Iran, Syria, Saudi Arabia, Bahrain, Lebanon, Sudan, Nigeria, Angola, Congo, Guinea, Guinea Bissau, Ghana, Cote D'Ivoire, South Africa, Mozambique, Tanzania, Venezuela, Surinam, Chile, Haiti and so on.
- Excellent Brand of Chinese Ice Machine Industry.
- The Drafting Committee of National Ice Machine Industry Standard.
- Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
- Independent after-sales department, 8 engineers are ready to service abroad.
FAQ:
1. How to choose a true manufactuerer among hundreds of suppliers?
Step 1: A good supplier should be at least 5 years history and have export/import business at least 3 years. We are 6 year gold supplier in alibaba and specialized in ice machine export since 2004.
Step 2: Request your suppliers to provide their certification of corresponding machines such as CE, ISO9001, UL and so on, it wil help you tell that they are ture manufacturer, trading company or SOHO.
Step 3: Ask supplier to provide more pictures about their facotry and products with their company logo on it. Don't define a manufactuerer with simple picture, they can download some picturers on the internet and claim it is their machines. If the suppliers only show pictures without any logo on it, just pass them.
Step4: If possible and you are willing to, visit the factory and see the workshop.
2. What is the power consumption to produce 1 ton ice blocks?
75-80KWH to produce 1 ton ice blocks.
3. Can your ice block maker work with 220V, 50Hz, single phase power?
No, all our ice block machines adopt 3 phases industrial power, such as 380V, 50/60Hz, 3 phases or 220V, 60Hz, 3 phases supply power.
4. Would inlet water temp affect production?
Yes. Our standard input water temperature for the ice block machine is 21 degree, higher the inlet water temperarature, less the capacity.

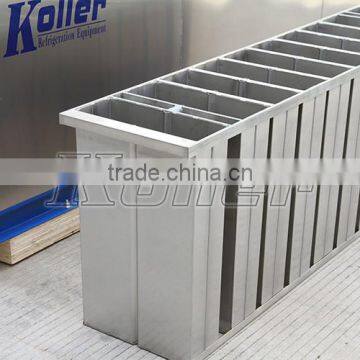

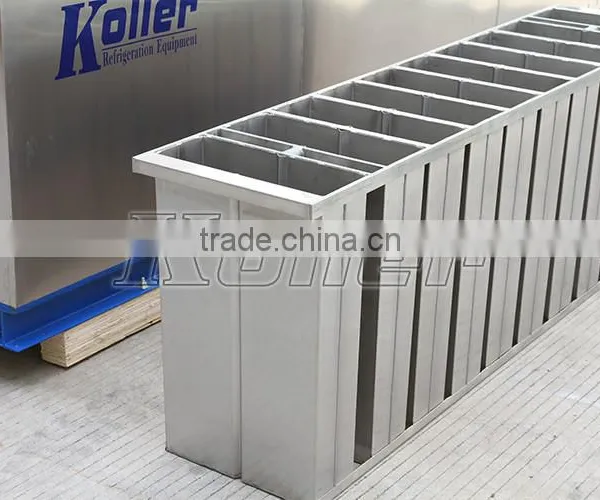

5. Why adopt 304 stainless steel for water tank and ice cans?
We will adopt insdustrial salt water in the water tank to freeze the fresh water in the ice cans and turn them into ice blocks. As brine system has great corrosion to the machine, all material contacting salt water incluidng water tank and ice moulds is made of SUS304 stainless steel, it is the best material in anti-rust and anti-corrosion. SUS304 stainless steel is much better than galvanized steel, carbon steel (iron plate) and coated steel. If with 304 stainless steel, the machine's working life can be over 10 years under proper maintenance, while galvanized steel and carbon steel will easily corroded in 3-4 years.
