Specifications
1.Min Order:1 set2.FOB price: US $1-100000
3.Payment Terms:T/T,D/P,L/C,Western Union
4.Suppuly Ability: 50 sets per month

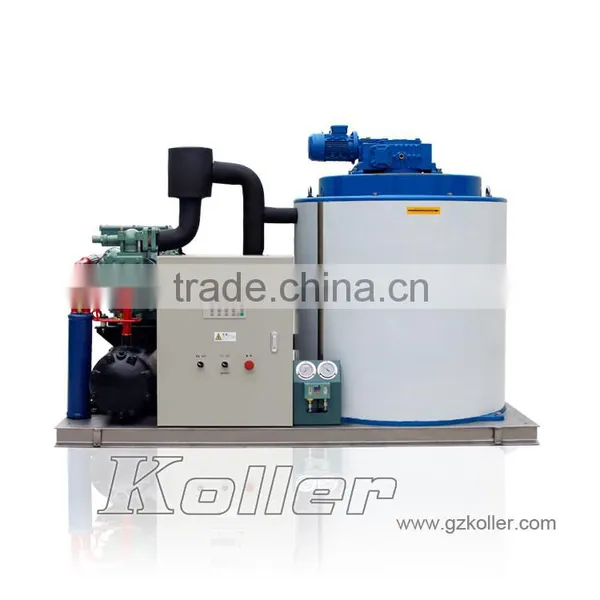

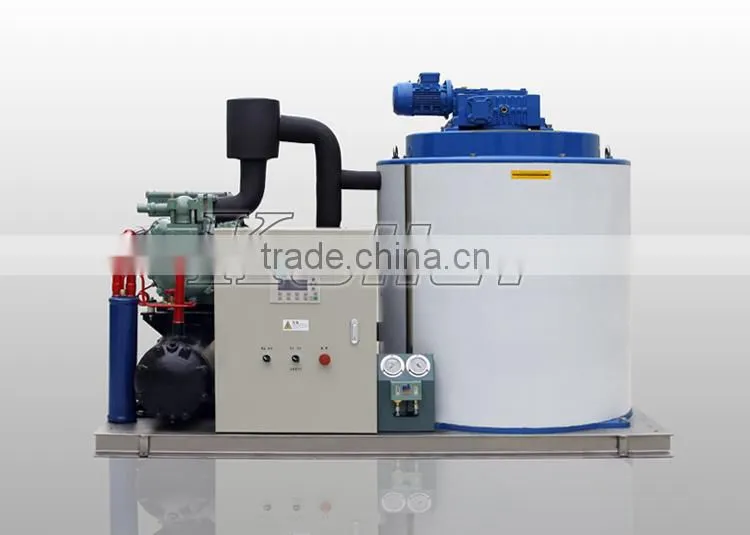

Flake Ice Machine KP30
Koller Flake Ice Machine Features:

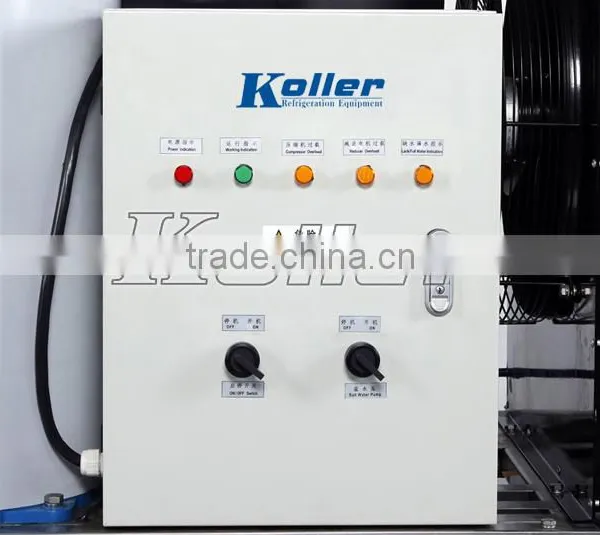

1. Automatic monitoring system: Intelligentized PLC control, don’t need to arrange people to monitor the machine
2. Emergency Alarm: It makes you know immediately once the emergency happens
3. Cable Channel: All the wires packed in stainless steel channel, protects the wire, also makes the machine look neat and tidy
4. Energy Guide: You can see clearly the energy consumption of the machine

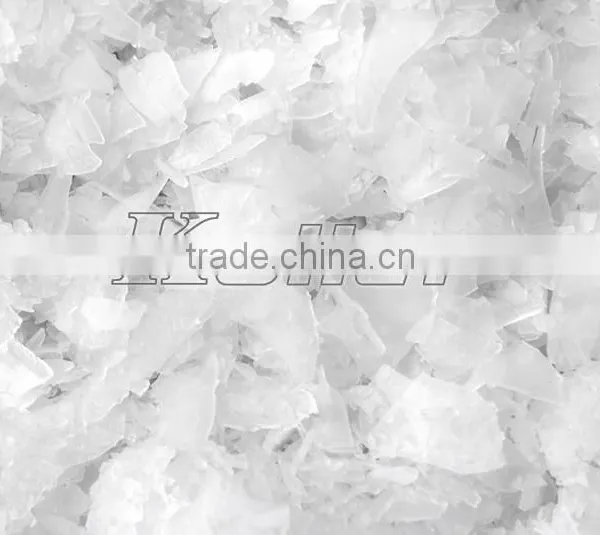

Flake Ice: Flake ice is dry, pure, powder-less, not easy to block.Its thickness is about 1.5mm-2.2mm, without edges or corners which can produce the cooling food, fish, seafood ad other products
Evaporator Drum: Use stainless steel 304 or carbon steel chrominum. The scartch-style system of inside machine ensures constant running at the lowest power comsumption, exquisite welding and processing technology ensure high-efficent heat transfer and energy saving.
Technical Parameters:
| Model | KP10 | KP20 | KP30 | KP50 | KP80 | KP100 | KP200 |
|
Capacity (tons/24 hours) |
1 | 2 | 3 | 5 | 8 | 10 | 20 |
| Refrigrant | R22/R404a | ||||||
|
Compressor Power (KW) |
4.5 | 7.5 | 9 | 15 | 22.5 | 30 | 66.5 |
Motor power(KW) |
0.37 | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 |
|
Circulating Water pump power (KW) |
0.15 | 0.15 | 0.15 | 1.5 | 1.5 | 1.5 | 2.2 |
|
Cooling Water pump power (KW) |
// | // | // | 2.2 | 4 | 4 | 5.5 |
| Cooling fan power | 0.22 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 |
| Weight (kg) | 750 | 980 | 1100 | 1400 | 1900 | 2600 | 3600 |
| Length (mm) | 1420 | 1770 | 1770 | 2100 | 2400 | 2800 | 3600 |
| Width (mm) | 840 | 1120 | 1130 | 1500 | 2200 | 2200 | 2200 |
| Height (mm) | 1080 | 1220 | 1330 | 1580 | 1850 | 2020 | 2560 |
Application: Freshwater Flake ice makers for Fishery, seafood processing.
Warranty: 12 months after the delivery; During the warranty periods, if there is any malfuction, we would try our best to solve the problem at our fastest speed. If some spare parts are needed to be replaced without artificial damage, then we would provide the spare parts free of charge. We also provide the life long technical support.

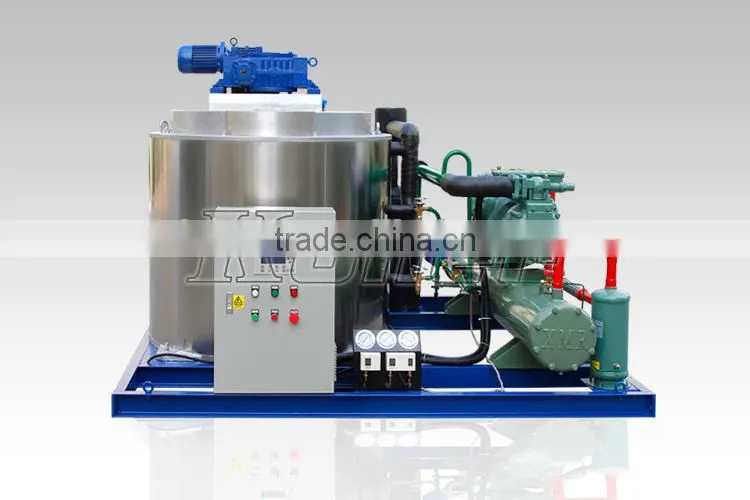

Pictures of other flake ice machine:

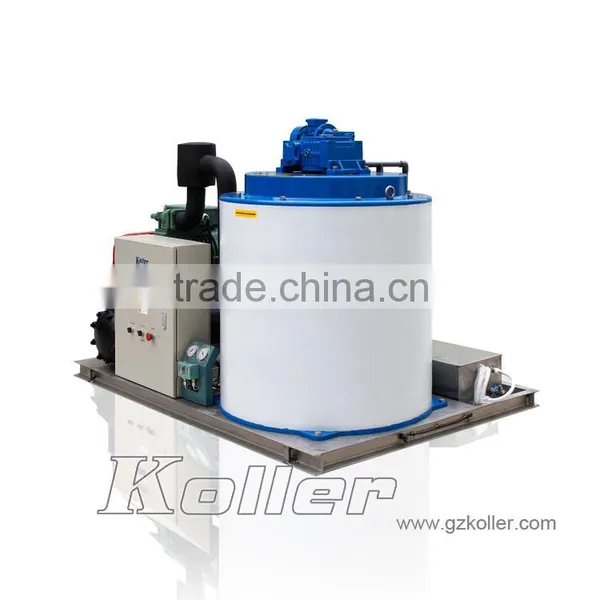

KP10 flake ice machine

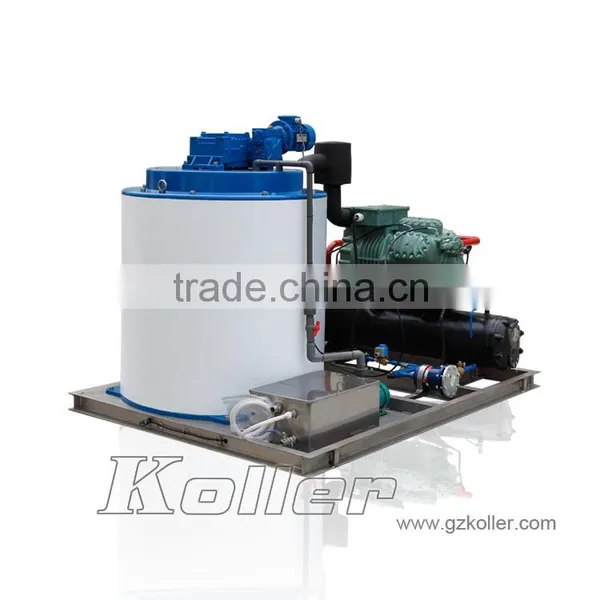

KP50 flake ice machine with water cooling system
Cooling tower
8 tons KP80 flake ice machine
