Specifications
Flake Ice Maker Machine1.Dry & pure flake ice
2.PLC program control
3.Stable performance & CE Approved
4. Saving Space
Flake Ice Maker Machine KP50
Koller Flake Ice Machine Features:
1. Automatic monitoring system: Intelligentized PLC control, don’t need to arrange people to monitor the machine
2. Emergency Alarm: It makes you know immediately once the emergency happens
3. Cable Channel: All the wires packed in stainless steel channel, protects the wire, also makes the machine look neat and tidy
4. Energy Guide: You can see clearly the energy consumption of the machine

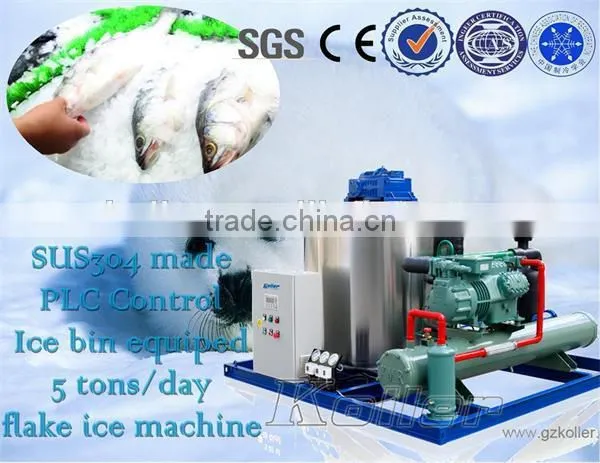

5tons flake ice machine with water cooling system
Flake Ice: Flake ice is dry, pure, powder-less, not easy to melt and its temperature can reach -5 degrees. Its thickness is about 1.5mm-2.2mm, without edges or corners which can produce the cooling food, fish, seafood ad other products
Evaporator Drum: Use stainless steel 304 or carbon steel chrominum. The scartch-style system of inside machine ensures constant running at the lowest power comsumption, exquisite welding and processing technology ensure high-efficent heat transfer and energy saving.
Technical Parameters:
| Model | KP10 | KP20 | KP30 | KP50 | KP80 | KP100 | KP200 |
|
Capacity (tons/24 hours) |
1 | 2 | 3 | 5 | 8 | 10 | 20 |
| Refrigrant | R22/R404a | ||||||
|
Compressor Power (KW) |
3 | 6 | 9 | 18.75 | 27 | 37.6 | 64.8 |
Motor power(KW) |
0.75 | 0.75 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 |
|
Circulating Water pump power (KW) |
0.75 | 0.75 | 0.7 | 1.5 | 1.5 | 1.5 | 1.5 |
|
Cooling Water pump power (KW) |
1.5 | 2.2 | 2.2 | 4 | 5.5 | 5.5 | 7.5 |
| Cooling fan power | 0.37 | 0.55 | 0.75 | 1.5 | 2.2 | 2.2 | 2.2 |
|
wate supply pipe diameter (mm) |
25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Weight (kg) | 380 | 500 | 980 | 1300 | 1800 | 2200 | 3600 |
| Length (mm) | 1200 | 1560 | 1700 | 2200 | 3300 | 3600 | 4100 |
| Width (mm) | 740 | 1200 | 910 | 1050 | 1600 | 1600 | 2100 |
| Height (mm) | 780 | 880 | 1200 | 1600 | 1800 | 2100 | 2800 |
Application: Freshwater Flake ice makers for Fishery, seafood processing.
Warranty: 12 months after the delivery; During the warranty periods, if there is any malfuction, we would try our best to solve the problem at our fastest speed. If some spare parts are needed to be replaced without artificial damage, then we would provide the spare parts free of charge. We also provide the life long technical support.

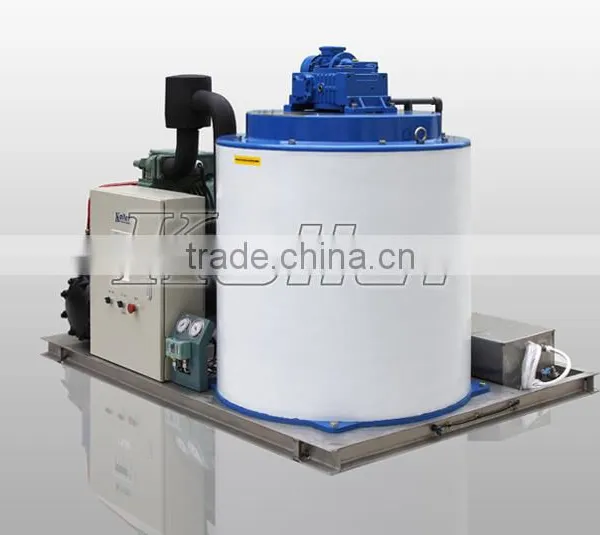

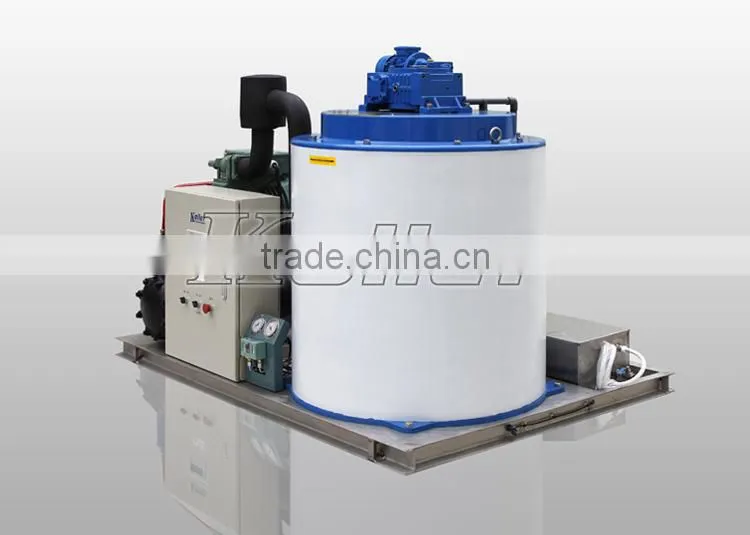

Pictures of other flake ice machine:
Koller Company & Sales Team
Excellent Brand of Chinese Ice Machine Industry.
The Drafting Committee of National Ice Machine Industry Standard.
Produce & Academic Research Strategy Cooperating Partner with Tsinghua University.
Independent after-sales department, 8 engineers are ready to service abroad.
