Track Winch

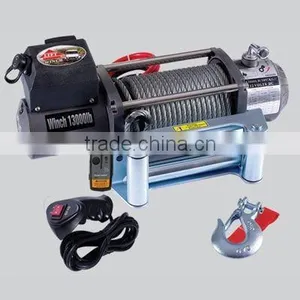

Track Winch thumbnail-1
Track Winch photo-1
US$ 130 - 180 MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
weknown
Model Number:
SEC13000W
Contact Supplier Request Quote Chat Now
Shanghai Weknown Auto Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name weknown
Model Number SEC13000W
Power Source Electric
Application Auto
Capacity 13000Ibs





track winch

Model:SEC13000(12/24V)

Name:auto electric winch

Rated Line Pull 13000LBS (5897kgs) single line
Motor 5.5hp/4.0kw 12V, 6.44hp/4.8kw 24V Series Wound
Control Remote switch, 12ft(3.7m)lead
Gear train 3 Stage Planetary
Gear train ratio 218.4:1
Clutch Flexible operation,water-resistent
Braking Action Automatic In-The-Drum
Drum Size Φ64mm×L223mm
Cable Φ9.5mm,26m
Fairlead 4-Way Roller Fairlead
Remote Control Included
Battery Recommended:650CCA minimum for winching
Battery Leads 2 gauge,72"(183mm)
Finish Dark gray powder coat
Overall Dimensions 21.3"×6.3"×8.6"(540mm×160mm×218mm)
Mounting Bolt Pattern 254mm×114.3mm
Weight N.W.39kg     G.W.41kg
Packing Size 57×19×34.5cm    1PC/CTN

13000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 12V

Line Pull
lbs
 0
2000
4000
6000
 8000 10000 13000
kg
 0
907
1814
2721
 3628 4536 5897
Line Speed
ft/min
 22.5 12.4 9.8 8.5 7.5 6.56 4.8
m/min
 6.85 3.8 3.0 2.6 2.3 2.0 1.48
Motor
Amps
 65 110 165 220 270 340 430

13000LBS LINE SPEED AND AMP DRAW (FIRST LAYER) 24V

Line Pull
lbs
 0
2000
4000
6000
 8000 10000 13000
kg
 0
907
1814
2721
 3628 4536 5897
Line Speed
ft/min
 24.86 12.79 10.23 8.79 8.04 6.89 5.12
m/min
 7.85 3.9 3.12 2.68 2.45 2.1 1.56
Motor
Amps
 52 107 146 178 205 235 305

 13000LBS LINE PULL AND CABLE CAPACITY

Layers of cable 1 2 3 4
Rated line pull per layer lbs 13000 10010 8840 7410
kg 5897 4541 4010 3361
Cumulative cable capacity ft 15 34.6 58.6 85.3
m 4.58 10.54 17.87 26
