Help CenterAuto Winch
US$ 130 - 180
MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
weknown
Model Number:
SC9500
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Shanghai, China
Brand Name
weknown
Model Number
SC9500
Power Source
Electric
Application
Auto
Capacity
9500Ibs

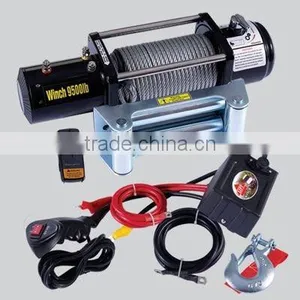

Model:SC9500(12/24V)
Name:auto electric winch
| SPECIFICATIONS | |
| Rated Line Pull | 9500LB (4300kgs) single line |
| Motor | 5.5hp/4.0kw(12V) Series Wound |
| Control | Remote switch, 12ft(3.7m)lead |
| Gear train | 3 Stage Planetary |
| Gear train ratio | 195.4:1 |
| Clutch | Sliding Ring Gear |
| Braking Action | Two-way, Automatic In-The-Drum |
| Drum Size | Φ2.5"*8.8"(Φ63.5mm*224mm) |
| Cable | 5/16"of 94ft diameter(Φ8.3m*28m) |
| Fairlead | 4-Way Roller Fairlead |
| Wireless Remote Control | Optional |
| Battery | Recommended:650CCA minimum for winching |
| Battery Leads | 2 gauge,72"(183mm) |
| Finish | Black powder coat |
| Overall Dimensions | 21.1"×6.3"×8.6"(537mm×160mm×218mm) |
| Mounting Bolt Pattern | 254mm×114.3mm |
| Weight | N.W.81lb(37kg) G.W.84lb(38kg) |
| Packing Size | 57×19×34.5cm 1PC/CTN |
9500LB LINE SPEED AND AMP DRAW (FIRST LAYER) 12V
| Line Pull | lbs |
No LOAD | 2000 |
4000 |
6000 |
9500 |
kg |
907 |
1814 |
2721 |
4300 | ||
| Line Speed | ft/min |
16.5 | 13.86 | 11.55 | 8.9 | 6.43 |
m/min |
5 | 4.2 | 3.5 | 2.7 | 1.95 | |
| Motor | Amps |
73 | 120 | 165 | 260 | 410 |
9500LB LINE PULL AND CABLE CAPACITY
| Layers of cable | 1 | 2 | 3 | 4 | |
| Rated line pull per layer | lbs | 9500 | 6600 | 5300 | 4500 |
| kg | 4300 | 2993 | 2404 | 2041 | |
| Cumulative cable capacity | ft | 18.5 | 41.2 | 68 | 92.4 |
| m | 5.6 | 12.5 | 20.6 | 28 | |
