1 Ton/day Best Popular Edible Block Ice Machine For Fishery/Meat
Negotiable
/ Set
1 Set(Min. Order)
- Guangzhou Port
- T/T D/P D/A Credit Card PayPal
You May Like
-
CE Approval Direct Cooling Block Ice Machine for Beverage
-
3 Tons Low Power Consumption Directly Aluminum Plate Ice Block Machine
-
Directly Aluminum Plate Ice Block Machine With Brand Name Accessories
-
Direct Cooling Block Ice Machine With Lower Power Consumption
-
Human Consumption Block Ice Machine Canton Factory
-
1 Ton Directly Evaporated Block Ice Machine With Automatic Control System
Product Details
| Condition | New | Capacity | 1 tons capacity per day | |
| Place of Origin | Guangdong, China | Brand Name | Koller | |
| Model Number | DK10 | Ice Shape | Ice Block | |
| Voltage | 380V,50HZ,3P/220V,60HZ,3P | Power(W) | 3.75KW | |
| Dimension(L*W*H) | 1820mm*1070mm*1365mm | Weight | 2500KG | |
| Certification | CE | Warranty | 12months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1,Name: Block Ice Machine2,FOB Price: US $1-100000 / Set
3,Payment Terms: L/C,T/T,Western Union
4,Supply Ability: 50 Sets

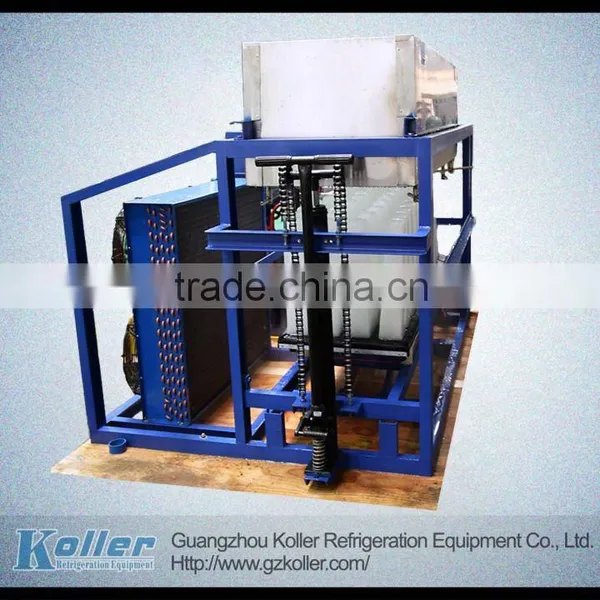

1 Ton/day Best Popular Edible Block Ice Machine DK10
1. Specifications
- ice block machine Capacity: 1000kg ice blocks per day;
- Without brine water for freezing ice;
- freezing time: 2-3hrs newest tech;
- ice block size: 5kg per piece.
2. Advantages:
Our DK series ice block machine adopt aluminum plate as ice can, the refrigerant will evaporate inside the aluminum plate so the plate can freeze ice making water quickly. This is the intergrated system, meanwhile, we design the lifting system to harvest ice blocks directly, no need hands to harvest ice blocks one by one.
3. Features:
| DK10 Block ice machine | ||
| Technical parameters | ||
| NO. | Description | Details |
| 1 | Freezing time per cycle | 2-3 hours(approx) |
| 2 | Weight of each ice block | 5kg,11×9.3×50cm |
| 3 | Outdimensions | 1820×1070×1365mm |
| 4 | Ice making capacity | 1000kg/day |
| 5 | Evaporator for ice tank | Aluminum plate |
| 6 | Cover | Stainless steel sheet |
| 7 | Compressor | Copeland (ZB45KQ/ZB45KQE) |
| 8 | Refrigerant | R22 |
| 9 | Condenser | Air cooler |
| 10 | water inlet temperature | 20-25°C |
| 11 | ambient operating temperature | 35-40°C |
| 12 | Control and safety devices | autormatic electic control panel box; |
| HP/LP switch with automatic reset | ||
| 13 | Cooling systerm | Copper pipes, liquid separator, |
| solenoid valve,filter and so on | ||
| 14 | Install power | 4.5KW,380-450V/3ph/50HZ |
4. Pictures:
