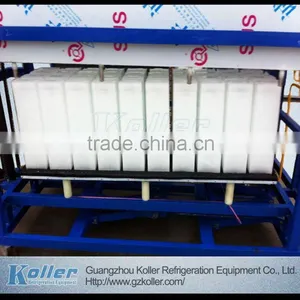

Direct Cooling Block Ice Machine With Lower Power Consumption
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Capacity:
1 tons capacity per day
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Human Consumption Block Ice Machine Canton FactoryNegotiableMOQ: 1 Set -
1 Ton Directly Evaporated Block Ice Machine With Automatic Control SystemNegotiableMOQ: 1 Set
-
Edible Quick Frozen Ice Block Machine,labor Saving and Easy OperationNegotiableMOQ: 1 Set
-
Labor Saving and Easy Operation Ice Block Machine,NegotiableMOQ: 1 Set
-
Labor Saving and Easy Operation Energy Saving Ice Block Machine,NegotiableMOQ: 1 Set
Condition
New
Capacity
1 tons capacity per day
Place of Origin
Guangdong, China
Brand Name
Koller
Model Number
DK10
Ice Shape
Ice Block
Voltage
380V, 50/60 Hz, 3P or 220V, 60Hz, 3P
Power(W)
3000
Dimension(L*W*H)
1820mm*1070mm*1365mm
Weight
2500kg
Certification
CE
Specifications
1,Min. Order: 1 Set2,FOB Price: US $1-100000 / Set
3,Payment Terms: L/C,T/T,Western Union
4,Supply Ability: 50 Sets/month
Direct Cooling Block Ice Machine With Lower Power Consumption DK101. Specifications
- ice block machine Capacity: 1000kg ice blocks per day;
- Without brine water for freezing ice;
- freezing time: 2-3hrs newest tech;
- ice block size: 5kg per piece.
2. Advantages:
Our DK series ice block machine adopt aluminum plate as ice can, the refrigerant will evaporate inside the aluminum plate so the plate can freeze ice making water quickly. This is the intergrated system, meanwhile, we design the lifting system to harvest ice blocks directly, no need hands to harvest ice blocks one by one.
3. Features:
| DK10 Block ice machine | ||
| Technical parameters | ||
| NO. | Description | Details |
| 1 | Freezing time per cycle | 2-3 hours(approx) |
| 2 | Weight of each ice block | 5kg,11×9.3×50cm |
| 3 | Outdimensions | 1820×1070×1365mm |
| 4 | Ice making capacity | 1000kg/day |
| 5 | Evaporator for ice tank | Aluminum plate |
| 6 | Cover | Stainless steel sheet |
| 7 | Compressor | Copeland (ZB45KQ/ZB45KQE) or Danfoss (MT-80/MTZ-80) |
| 8 | Refrigerant | R22 |
| 9 | Condenser | Air cooler |
| 10 | water inlet temperature | 20-25°C |
| 11 | ambient operating temperature | 35-40°C |
| 12 | Control and safety devices | autormatic electic control panel box; |
| HP/LP switch with automatic reset | ||
| 13 | Cooling systerm | Copper pipes, liquid separator, |
| solenoid valve,filter and so on | ||
| 14 | Install power | 4.5KW,380-450V/3ph/50HZ |
4. Pictures:
