30 CrMoA D grade API Sucker Rod
Sucker Rod API grades
1.Grade C sucker rod: It features moderate strength and good toughness and can be used in sour media environment, it is not susceptible to the sulfide stress cracking.
2.Grade D sucker rod: It is made of quality alloy steel and heat treated, it features high tensile and yield strength, good toughness, it is applicable to non-corrosion or light corrosion environment.
3.Grade V sucker rod: It features good resistance to corrosion, H2S, CO2 and NaCl media, and superior tensile strength. It is newly developed product and applicable to deep well pumping by small pump, forced production by large pump and production of thickened oil.
4.Grade H sucker rod: It is the high strength sucker rod. The structure and the size of Grade H sucker rod are same as those of Grade D sucker rod, but the strength reaches 966-1,136Mpa(140,000-164,720psi) and it is applicable to deep wells and large displacement wells.
API Sucker Rod for oil equipment
Puyang Zhongshi Group is a specialized producer which produces the petroleum machinery such as oil tube, drilling collar, drill pipe and sucker rod etc.
The company had rich technical force with more than 30 specialties technician in the existing over 300 staff.The company certified ISO9001 Quality System Assessment and API Certificate, the number of API Certificate of our company are 11B-0081 for sucker rod and 7-1-0552 for drill collar .Its product and produce ability is:
1.sucker rod 10,000,000/every year
2.drilling collar 10,000 Pcs / every year
3.drill pipe 20,000 tons/ every year
Sucker Rod Introduction:
The sucker rod is a steel rod that used to make up the mechanical assembly between the surface and downhole components of a rod pumping system.
The product conforms to API Specification 11B (Oil extraction rod Standard) and other related standard, authorized to use the API monogram.
All sizes of sucker rod (standard, heavy, polish rod) which conform to API specification latest version 11B are available in grade K, C, D and HL.
Sucker Rod Technical Performances:
Adopting the advanced production line crack detecting, quenching, the continuous overall tempering and sand blasting processes to achieve higher mechanical strength ability with overall good performance.
The thread is cut by the special-purpose numerical control lathe which keeps the rod body still when cutting the threads. The special process could ensure the high precision of the thread with better reliability and life-span.
Specification parameter of sucker rod:
| Nominal Size of Rod (Steel) |
Diameter of Rod Body(mm) |
Outside Diameter of Pin shoulder(mm) |
Nominal Diameter of thread |
Nominal Size of Sucker Rod length(mm) |
Pony Rod (mm) |
| 5/8" | φ15.88 | 31.8 | 15/16" | 7518,9042 | 508 1118 1727 2337 2946 |
| 3/4" | φ19.05 | 38.1 | 1-1/16" | ||
| 7/8" | φ22.23 | 41.3 | 1-3/16" | ||
| 1" | φ25.4 | 50.8 | 1-3/8" | ||
| 1 1/8" | φ28.58 | 57.2 | 1-9/16" |
Sucker Rod Specification of the material:
| Grade | yield strength Rel(Mpa) |
Tensile strength Rm(Mpa) |
Percentage Elongation A(%) |
Contraction Percentage of Area Z(%) |
Impact Toughness |
| C | ≥ 414 | 620-793 | ≥ 12 | ≥ 55 | ≥ 70 |
| D | ≥ 620 | 794-965 | ≥ 10 | ≥ 50 | ≥ 58.8 |
| K | ≥ 414 | 620-793 | ≥ 12 | ≥ 55 | ≥ 70 |
Sucker rod Certification

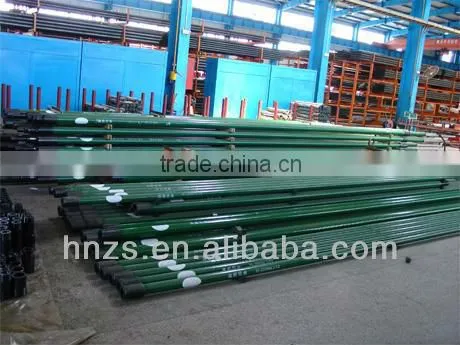

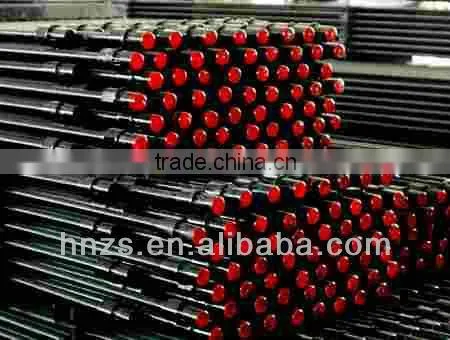

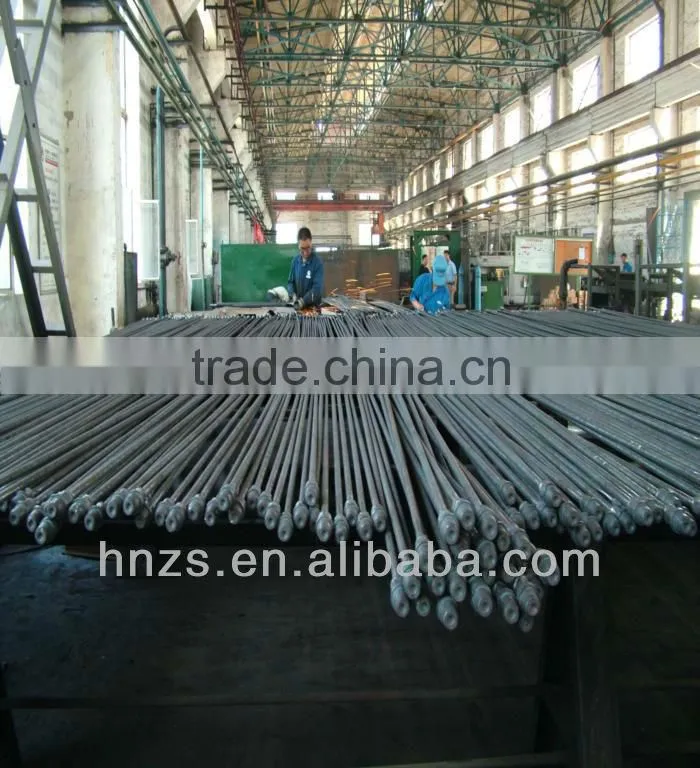

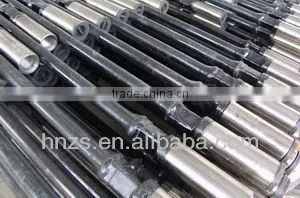

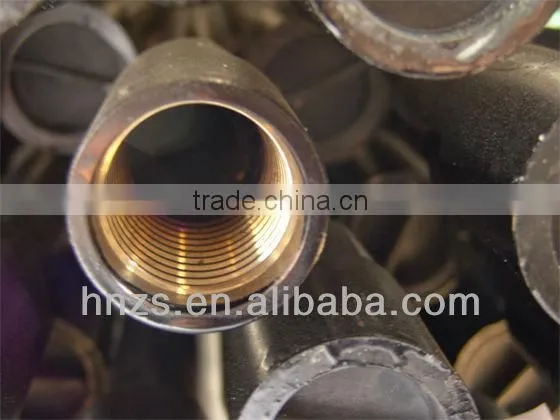

Sucker Rod Picturers
