Specifications
1.API 11AX standard2.longer working life
3.strict quality control
API Petroleum Tubing Pump

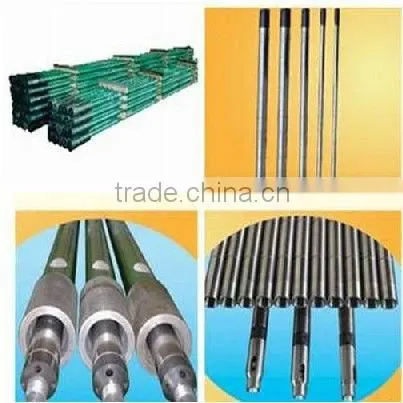

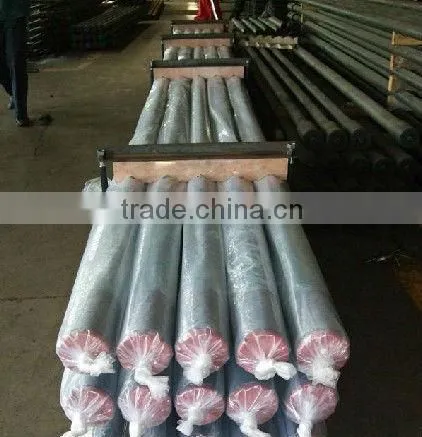

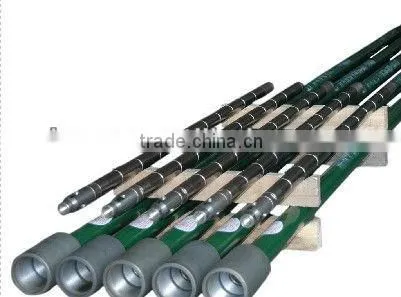

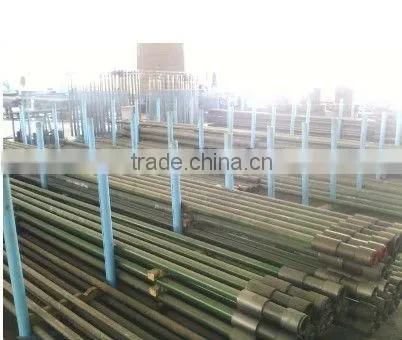

Pictures:

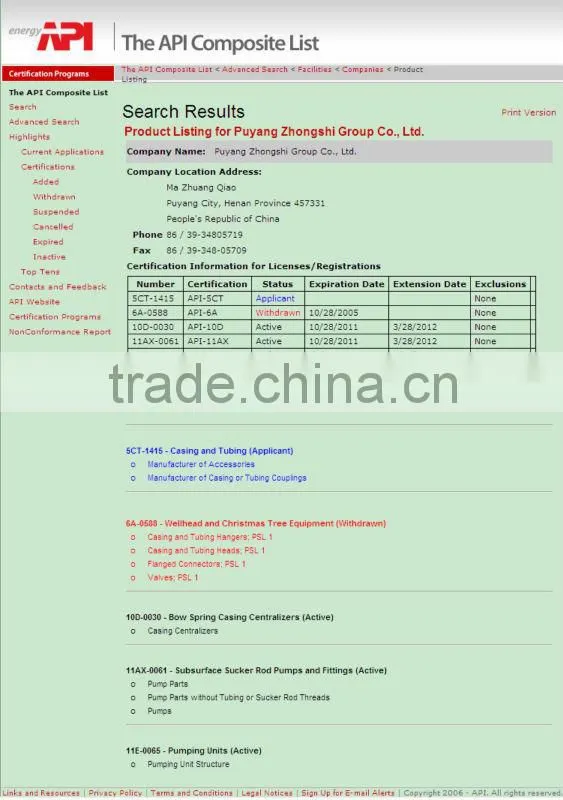

Certification:
Description:
Comparing with conventional tubing pump,The API Tubing Pump has better performance in corrosion resistance & antifriction aspects.Plunger of it is nickel plated on alloy base,inside wall of barrel is plated hard cadmium,key parts,such as valve hood,valve ball,are made of materials with excellent mechanical performance and corrosion resistant property.Compared with conventional pump,the series of pump has a longer working life .
Specification:
1.API 11AX standard
2.longer working life
3.strict quality control
Working Principle:
Plunger move from bottom to top in virtue of fluid pressure from top and bottom traveling valve close .when stroke begins oil flow through inflow valve as different pressure, then oil flow in barrel through standing valve. Down-stroke oil-fluid pressure drive traving-valve ,oil-fluid flow in tube thongh inner hole from bottom of plunger to top of plunger.
Parameters:
|
Dia mm |
Barrel length (m) |
Plunger length |
Tube size (in) |
Sucber rod size |
Pump constant (m3/d) |
28 |
3.3-9.5 |
0.6-6.9 |
27/8 |
3/4 |
0.877 |
32 |
27/8 |
3/4 |
1.140 |
||
38 |
27/8 |
3/4 |
1.642 |
||
44 |
27/8 |
3/4 |
2.235 |
||
50 |
3.3-8 |
0.6-5.4 |
27/8 |
3/4 |
3.012 |
56 |
27/8 |
3/4 |
3.694 |
||
70 |
31/2 |
7/8 |
5.518 |
||
95 |
3.3-6.6 |
0.6-1.8 |
41/2 |
1 |
9.128 |
Stationary Barrel Bottom Anchor Rod Pump-RHBC&RHBM
Spec. |
Tubing Size(in) |
Nominal Pump Bore(in) |
Plunger Length(ft) |
Max. O.D.(mm) |
Pump Constant(m3/d) |
Stroke(m) |
|
20-112RHBC |
2-3/8 |
1.12 |
4-6 |
46.7 |
0.92 |
≤7.5 |
|
20-112RHBM |
44.7 |
|
|||||
20-125RHBC |
2-3/8 |
1-1/4 |
47.5 |
1.14 |
|
||
20-125RHBM |
44.7 |
|
|||||
25-150RHBC |
2-7/8 |
1-1/2 |
59.5 |
1.64 |
|
||
25-150RHBM |
55.6 |
|
|||||
25-175RHBC |
2-7/8 |
1-3/4 |
59.5 |
2.24 |
|
||
25-175RHBM |
55.6 |
|
|||||
30-225RHBC |
3-1/2 |
2-1/4 |
72.1 |
3.69 |
|
||
30-225RHBM |
71.7 |
|
