Specifications
API pumping unit1.Professional mannufacturer
2.strictly QC
3.best craft
4.durable,reliable
specifications:

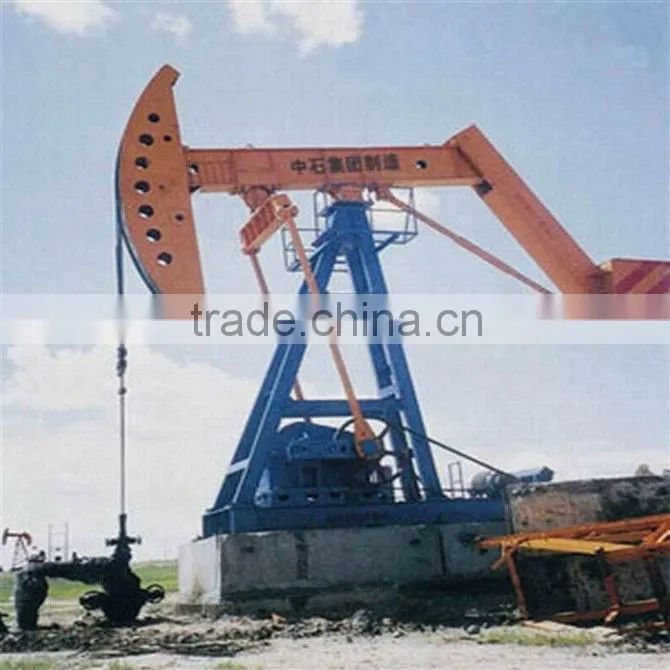

API pumping units/conventional pumping unit/CYJ10-3-53HY Oil field pumping units
1. Estimated load on horse head:100KN
2. Gear stroke length: 3 meter
3. Rate torque of gear: 53KN.M
4. Diameter of gear pulley: 960mm
5. Type of Pulley groove: 5V
Other API Standard Technology parameter
API pumping units/conventional pumping unit/CYJ10-3-53HY Oil field pumping units
1. Description :
API C series Pumping Units is a kind of conventional walking beam pumping units, it’s the ground power equipment used in sucker rod oil extraction.
The products conform to API Spec. 11E “Specification for Pumping Units”, and the relative standards, acquired the authorization to use Official API Monogram.
2. Features:
♦ Strength of critical parts is calculated with the finite element analysis,High reliability. simple operation, easy maintenance, long servicing life.
♦ Gear reducer is involute herring-bone gearing, working smoothly and reliably.
♦ Modularized design, it has high degree of standardization, commonality and seriation with the spare parts.
♦ It is economically priced.
♦ energy-saving, environmental protection.
3. Welcome to visit our factory:
4. Our product range:
♦ pumping unit/ tubing pump/ sucker rod/ X-mas tree/ casing head/ casing pipe/ tubing pipe/ drill pipe/ polished rod/ coupling
♦ production packer/ water flow regulator/ tubing anchor/ safety joint/ screen pipe/ sand screen
♦ float collar/ float shoe/ casing centraliser/ stop collar/ cementing head/ stage collar/ cement basket/ cementing plug
♦ air cannon/ diesel fuel tank/ water jacket heater/ multifunction pressure vessel/ air tank
♦ mud tank/ shale shaker/ vacuum degasser/ desilter/ desander/ gas-luiquid separater/ mud gun/ centrifuge/ sand pump/ slurry agitator/ shear pump/ cyclone mixing device
♦ container house/ color steel sandwich panel house
♦ belt feeder
5. API certificate--we are professional!
We are on contact now, all you have to do is sending me an enquiry or a call, (Tel: 0086 15136286271), you will get reply within 12 hours!
