Oil-Drilling Seating Nipple EUE 8RD from Manufacturer
Product Descriptions:
A completion component fabricated as a short section of heavy wall tubular with a machined internal surface that provides a seal area and a locking profile. Landing nipples are included in most completions at predetermined intervals to enable the installation of flow-control devices, such as plugs and chokes. Three basic types of landing nipple are commonly used: no-go nipples, selective-landing nipples and ported or safety-valve nipples.
Technical Parameters:

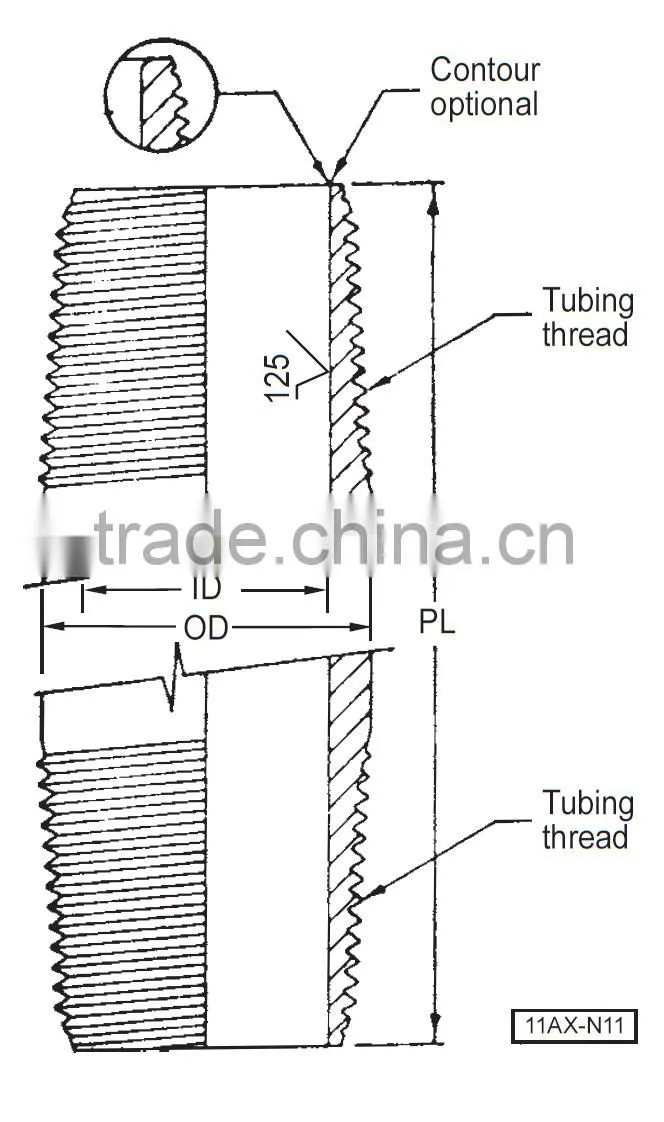

Seating Nipple Cup Type (Rod Pump)
Dimensional Symbol |
Part Number |
|||
N11-15 |
N11-20 |
N11-25 |
N11-30 |
|
Tubing Threada |
1.900-10IJb (48.3-10IJ) |
2 3/8-8EU (60.3-8EU) |
2 7/8-8EU (73.0-8EU) |
3 1/2-8EU (88.9-8EU) |
|
ID+0.010/-0.000 (+0.25/0.00) |
1.460 (37.08) |
1.780 (45.21) |
2.280 (57.91) |
2.780 (70.61) |
PL min |
6 (152.4) |
6 (152.4) |
6 (152.4) |
6 (152.4) |
|
OD+0.062/0.015 (+1.57/-0.38) |
2.094 (53.19) |
2.594 (65.89) |
3.094 (78.59) |
3.750 (95.25) |
Note: All dimensions in inches (followed by equivalent in millimeters).
aSee API Specification 5B for tubing thread details.
bUpper connection may be 1.900-10IJ (48.3-10IJ) box thread, thus eliminating need for C34-15 coupling.

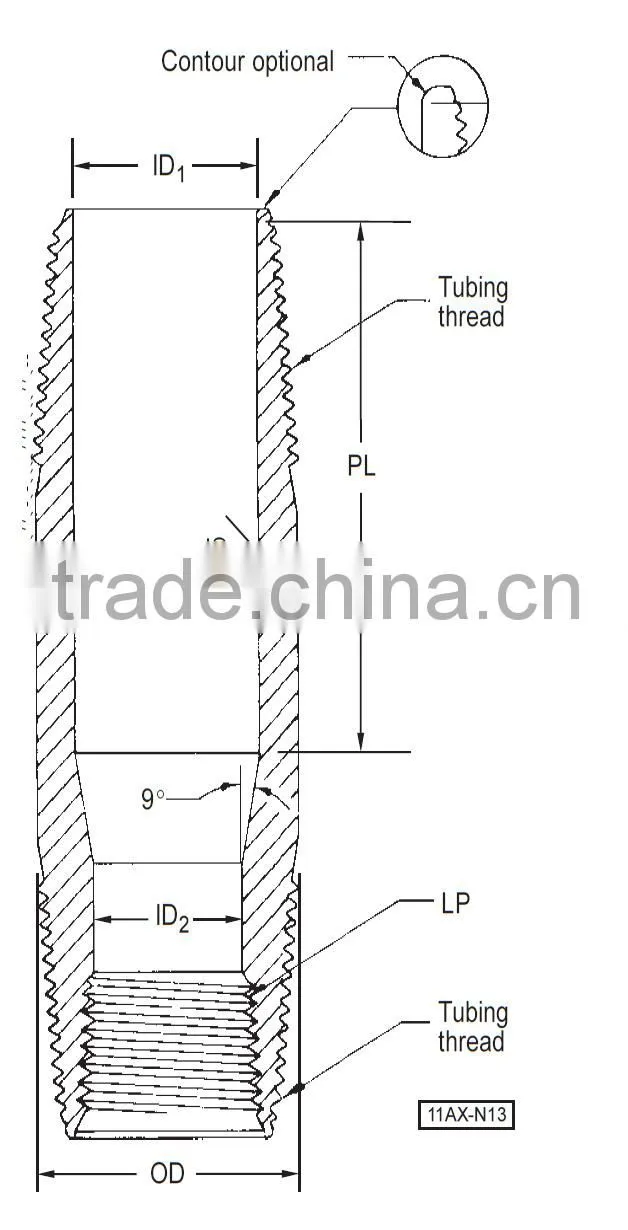

Seating Nipple 2 Cup Type (Tubing Pump)
Dimensional Symbol |
Part Number |
||
N13-20 |
N13-25 |
N13-30 |
|
Tubing Threada |
2 3/8-8EU (60.3-8EU) |
2 7/8-8EU (73.0-8EU) |
3 1/2-8EU (88.9-8EU) |
|
ID1+0.010/-0.000 (+0.25/-0.00) |
1.710 (43.43) |
2.210 (56.13) |
2.710 (68.83) |
|
ID2+0.040/0.000 (+1.02/-0.00) |
1.371 (34.82) |
1.832 (46.53) |
2.156 (54.76) |
PL±3/8 (±9.5) |
5 1/4 (133.4) |
5 3/4 (146.1) |
6 (152.4) |
|
OD+0.062/-0.015 (+1.57/-0.38) |
2.594 (65.89) |
3.094 (78.59) |
3.750 (95.25) |
LP nom.b |
1 1/2 (38.1) |
2 (50.8) |
2 (50.8) |
Note: All dimensions in inches (followed by equivalent in millimeters).
aSee API Specification 5B for tubing thread details.
bLine pipe threads. See API Specification 5B for details.

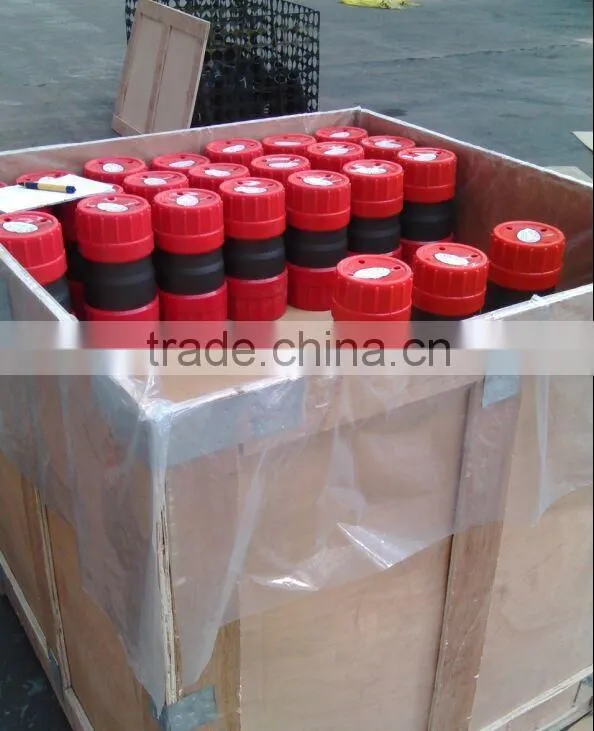

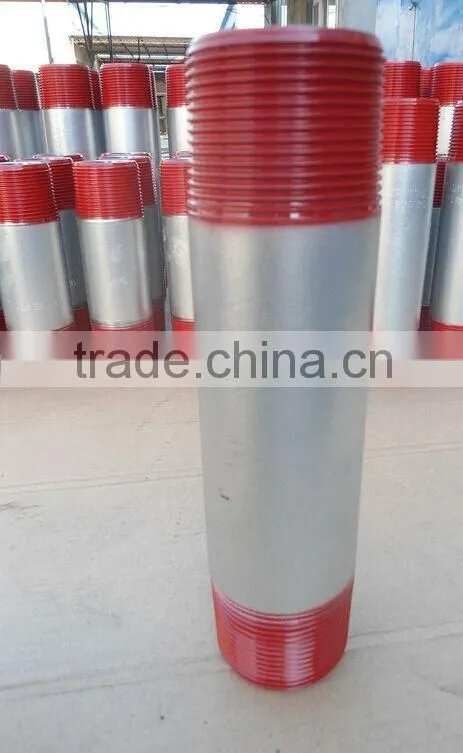

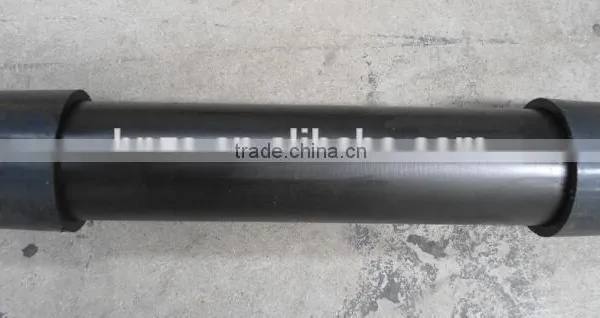

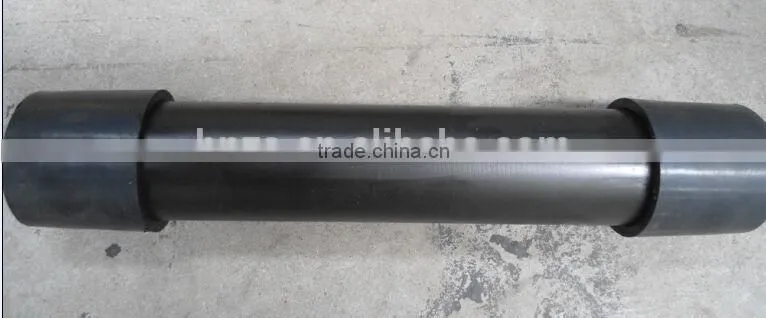

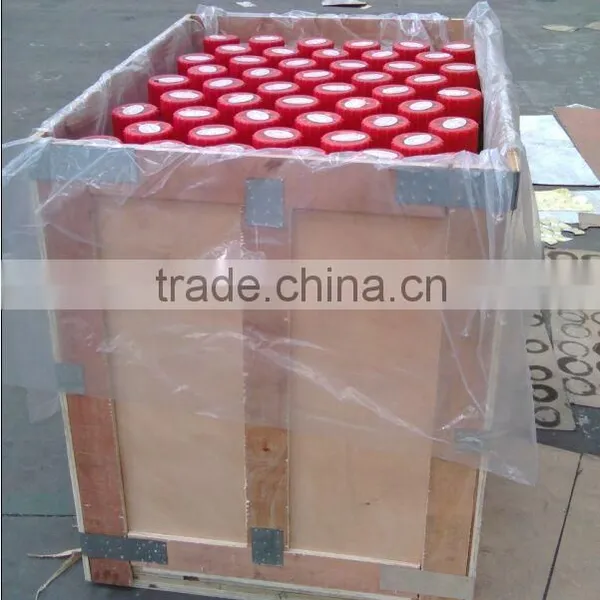

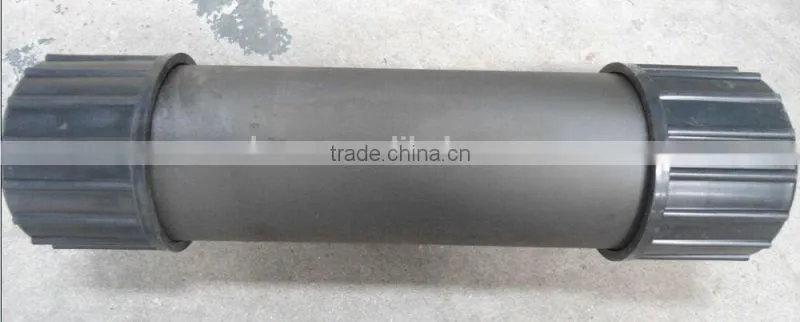

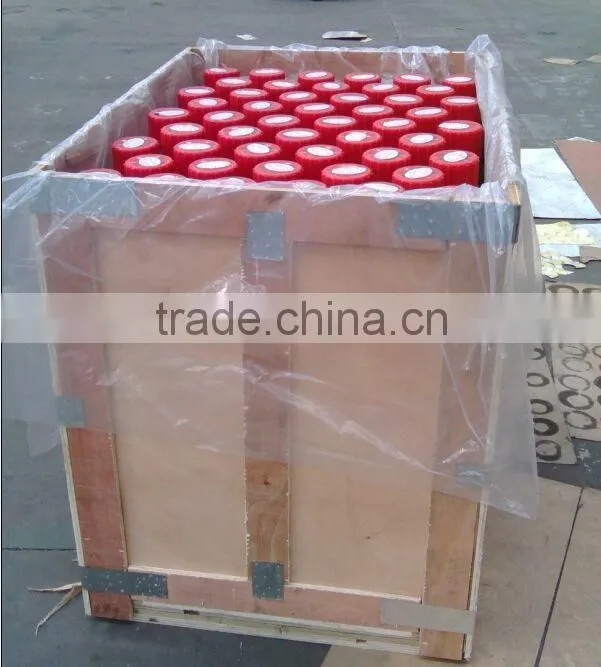

Product Pictures:
Our Certificates:
