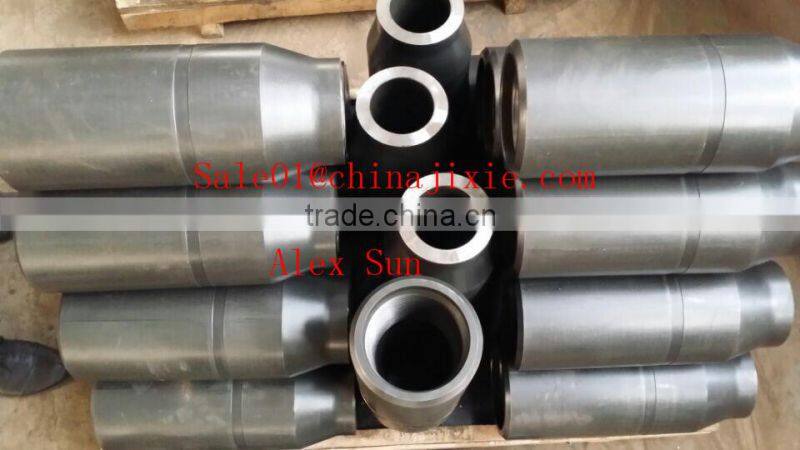

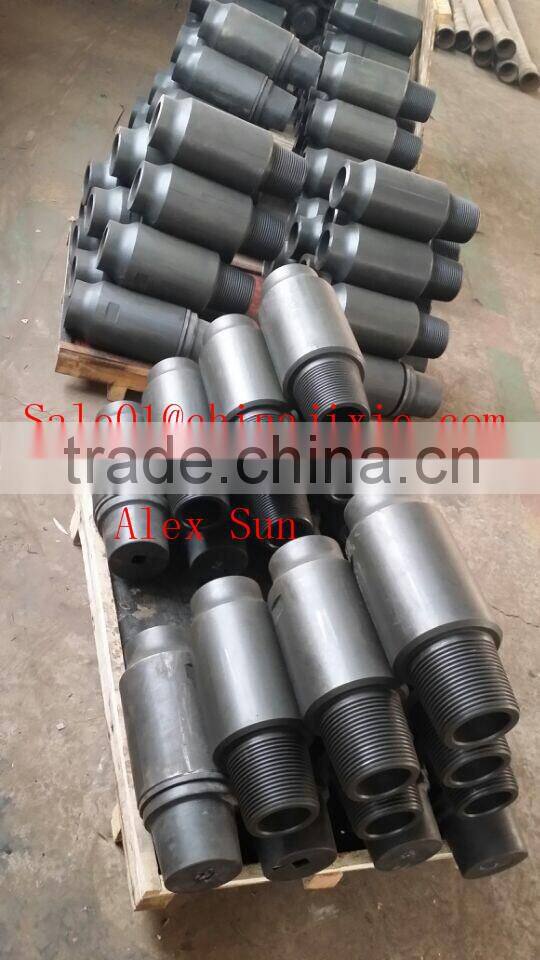

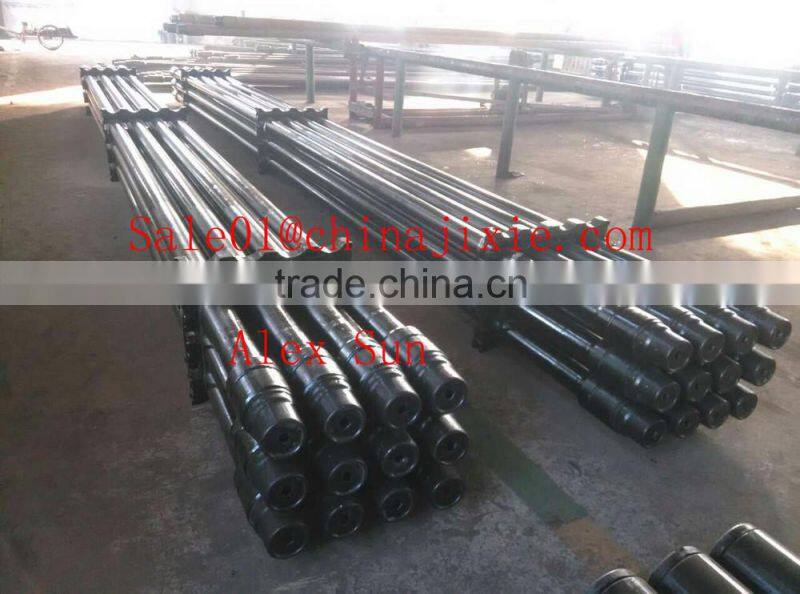

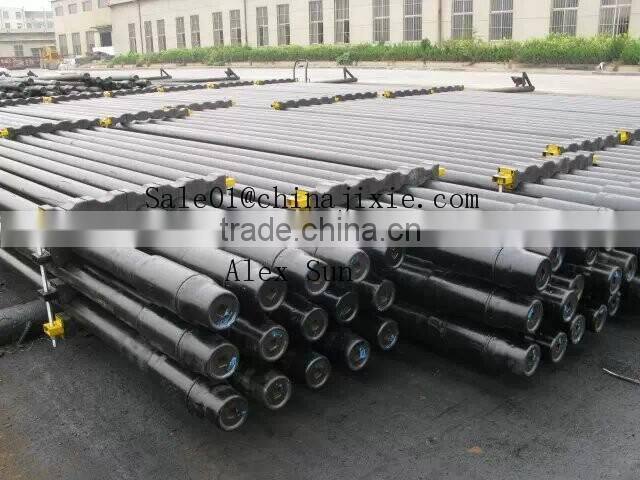

API Standard Grade G105 Drill Pipe
US$ 5 - 21
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Standard:
Grade:
Thickness:
2.5, 25
Payment & Shipping
Payment Methods:
Port of Shipment:
China Main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
API Standard S135 Steel Drill PipeUS$ 5 - 21MOQ: 10 Pieces -
API Standard Drill Pipe for SaleUS$ 5 - 21MOQ: 10 Pieces
-
API Standard G105 Drill Rod for OilwellUS$ 5 - 21MOQ: 10 Pieces
-
API Standard 2 3/8" G105 Drilling RodUS$ 5 - 21MOQ: 10 Pieces
-
API Standard 2 7/8" Grade S135 Drill Pipe for OilfieldUS$ 5 - 21MOQ: 10 Pieces
Thickness
2.5, 25
Section Shape
Round
Outer Diameter
21 - 365 mm
Place of Origin
Henan, China
Secondary Or Not
Non-secondary
Application
Drill Pipe
Technique
Hot Rolled
Certification
API
Surface Treatment
Copper Coated
Special Pipe
API Pipe
Alloy Or Not
Is Alloy
Drill pipe:
Standard: API Spec7 & API 5D
OD Range:2 3/8"- 6 5/8"
Steel Grade:X95, G105, S135, P110
Internal Coating:TK34,TC2000,TC3000
Hardbanding: Arnco 100XT, 200XT,300XT, ARMACOR M
Length: R1(5.49m-6.71m), R2(8.23m-9.14m), R3(11.58m-13.72m)
Specification:
| Spec | Weight | Flat-end Weight | External Diameter D | Wall Thickness t | Grade | Upset Type | |||
| lb/ft | Kg/m | inch | mm | inch | mm | ||||
| 2-3/8″ | 6.65 | 6.27 | 9.33 | 2.375 | 60.3 | 0.28 | 7.11 | E,X,G,S | Upset |
| 2-7/8″ | 10.4 | 9.72 | 14.47 | 2.875 | 73 | 0.362 | 9.19 | E,X,G,S | Upset |
| 3-1/2″ | 13.3 | 12.32 | 18.34 | 3.5 | 88.9 | 0.368 | 9.35 | E,X,G,S | Upset |
| 3-1/2″ | 15.5 | 14.64 | 21.79 | 3.5 | 88.9 | 0.449 | 11.4 | E,X,G,S | Upset |
| 4″ | 14 | 12.95 | 19.27 | 4 | 101.6 | 0.33 | 8.38 | E,X,G,S | Int Upset |
| 4-1/2″ | 16.6 | 15 | 22.32 | 4.5 | 114.3 | 0.337 | 8.56 | E,X,G,S | Int-Ext Upset |
| 4-1/2″ | 20 | 18.71 | 27.84 | 4.5 | 114.3 | 0.43 | 10.92 | E,X,G,S | Int-Ext Upset |
| 5″ | 19.5 | 17.95 | 26.7 | 5 | 127 | 0.362 | 9.19 | E,X,G,S | Int-Ext Upset |
| 5″ | 25.6 | 24.05 | 35.8 | 5 | 127 | 0.5 | 12.7 | E,X,G,S | Int-Ext Upset |
| 5-1/2″ | 21.9 | 19.83 | 29.52 | 5.5 | 139.7 | 0.361 | 9.17 | E,X,G,S | Int-Ext Upset |
| 5-1/2″ | 24.7 | 22.56 | 33.57 | 5.5 | 139.7 | 0.415 | 10.54 | E,X,G,S | Int-Ext Upset |
