Help CenterAPI Spec 22mm 7/8" Class T Sucker Rod Coupling OEM High Precision Sucker Rod Coupling
Related Products
-
API 5CT Oil Well Casing Coupling for Casing Connection With Factory Competitive PriceUS$ 2 - 50MOQ: 50 Pieces -
API 5CT Oil Pipe Fittings Casing / Tubing CouplingUS$ 2 - 50MOQ: 50 Pieces
-
API 5CT Oil Casing / Tubing BTC/LTC/STC CouplingUS$ 2 - 50MOQ: 50 Pieces
-
API 5CT Oil Casing Buttress Thread CouplingUS$ 2 - 50MOQ: 50 Pieces
-
API 5CT Oil Casing Long Round Thread LTC CouplingUS$ 2 - 50MOQ: 50 Pieces
Specifications
Type: 7/8 inch sucker rod couplingMaterial: carbon steel, stainless steel
Connection: Male, female
Head: thread
Specifications

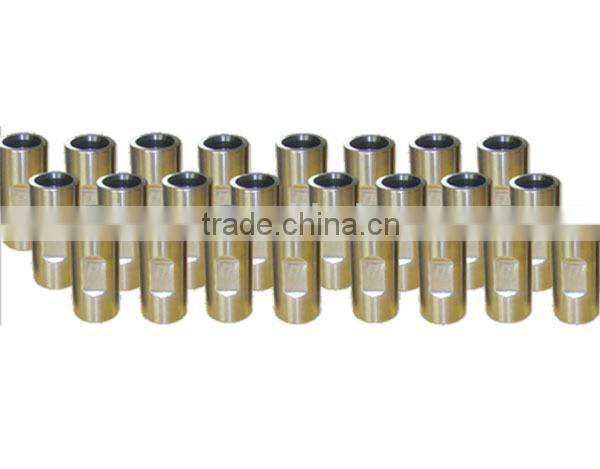

API spec 22mm 7/8" Class T sucker rod coupling OEM High Precision Sucker Rod Coupling
1.Size: from 3/4" to 1" slim hole full size
2.Placement: female
3.Technics: hot rolling
4.Grade: T,SM
Detailed product description
Couplings produced by our factory include sucker rod coupling, sub-coupling, API 5CT tubing and casing coupling. Sucker rod coupling and sub-coupling are designed in accordance with API Spec 11B, the material is high quality alloy steel. Normally, there are 2 wrench flats on the outside diameter. Class T coupling hardness is HRA56-62 after heat treatment, possesing better anti-corrosion property and abrasion-proof property.
Sucker rod coupling is used for connecting the same size of sucker rods. Sub-coupling is used for connecting the two sizes of sucker rods or polished rod to a sucker rod string.
Technical Parameters
API spec 22mm 7/8" Class T sucker rod coupling OEM High Precision Sucker Rod Coupling
Size (in) |
3/4 |
7/8 |
1 |
Coupling O.D (+0.13,-0.25) (mm) |
41.3 |
46.0 |
55.6 |
Threaded D.(in) |
11/16 |
13/16 |
13/8 |
Lengh of wrench square (mm) |
31.8 |
31.8 |
38.1 |
Lengh (+1.57,0.00) (mm) |
101.6 |
||
Hardness(HRA) |
56-62 |
||
Machanical Properties
API spec 22mm 7/8" Class T sucker rod coupling OEM High Precision Sucker Rod Coupling
Tensile Strength Rm(N/mm2) |
≥655 |
Yield Strengh Rel(N/mm2) |
≥405 |
Percentage Elongation A(%) |
≥24 |
Contraction Percentage of Area Z(%) |
≥48 |
API spec 22mm 7/8" Class T sucker rod coupling OEM High Precision Sucker Rod Coupling
API spec 22mm 7/8" Class T sucker rod coupling OEM High Precision Sucker Rod Coupling
:
