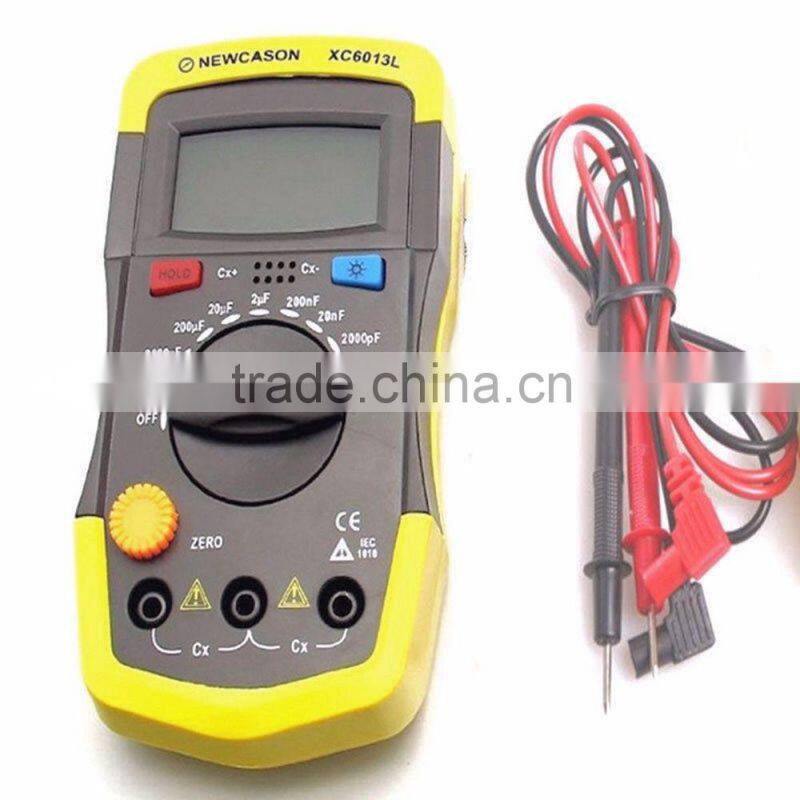

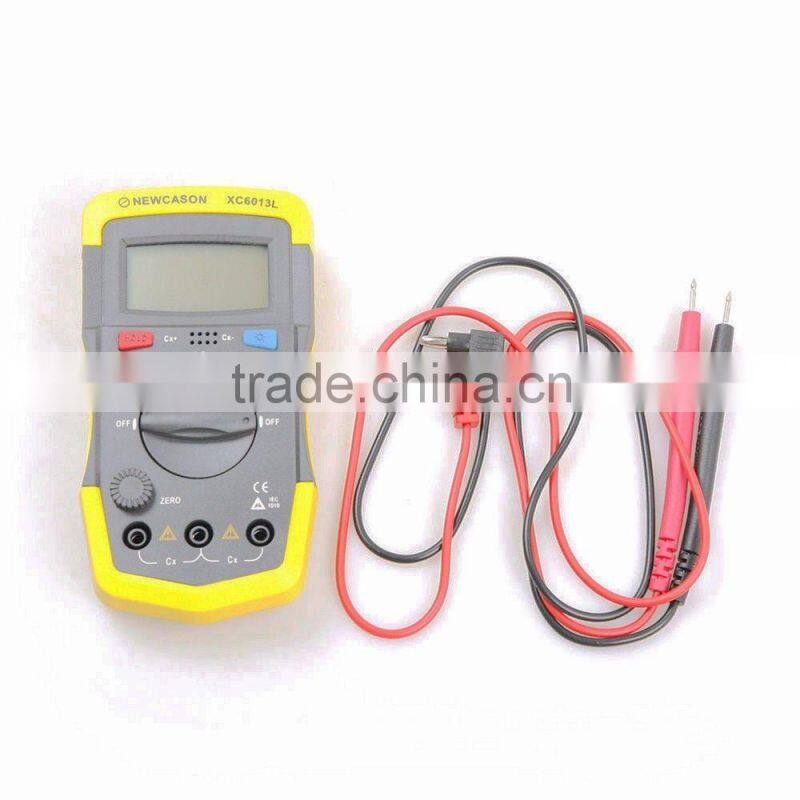

NEW Digtital Backlight Meter XC6013L Capacitance Capacitor Tester Circuit
- 10000 Piece / Pieces per Month
- Wuhan
- Credit Card
- Acrel ADF400L-3D 3 circuits single phase 10(80)A High accuracy
- Acrel ADF400L-4H Multi Circuit Electrical Instruments 4 channel 3 phase 3*1(6)A High installation flexibility
- Acrel Multi Circuit Electrical Instruments 2 channel 3 phase 3*10(80)A ADF400L-2S din rail
- Acrel din rail Multi Circuit Electrical Instruments 6 channel single phase 10(80)A High installation flexibility ADF400L-6D
- Acrel 6 channel three phase 3*1(6)A High installation flexibility din rail ADF400L-6H Multi Circuit Electrical Instruments
- Acrel ADL3000-E Electrical Measuring Instrument 3 Phase Digital Energy Meter support 2-31st
Product Details
Place of Origin: | Hubei, China | Brand Name: | lillyelectronics | Model Number: | 261543500806 |
Product Description
Specifications
NEW Digtital Backlight Meter XC6013L Capacitance Capacitor Tester Circuit- 100% quality and Brand new.
- Handheld LCD display capacitance meter
- Measure range from 0.1 pF to 20000 u F
- measuring range:20mF/2000μF/200μF/20μF/2μF/200nF/20nF/2000pF/200pF
- Compact structure
- Easy operation
- Convenient to carry
- It is the perfect electrical measuring tool
- Sample rate:2 ~ 3 times per second
- Zero adjustment:hand movement
- Suitable for digital analysis ,Choose capacitance,measure the unknown capacitance , Matching capacitance, Measurement cable and capacitance, etc.
- Size(about):14 x 7 x 3cm
- Power Supply:6 F22 or NEDA type 1604 9 v laminated battery
- Operating temperature:25℃±5℃
- working atmosphere:0~40℃
Measure accuracy Resolution
200pf +/-0.5% 0.1PF
2nf +/-0.5% 1pf
20nf +/-0.5% 10pf
200nf +/-0.5% 0.1nf
2uf +/-0.5% 1nf
20uf +/-0.5% 10Nf
200UF +/-0.5% 0.1Uf
2000Uf +/-2% 1Uf
20mf +/-4% 10uf
Capacitance Range | 200pF |
±2% | 2000pF |
20nF | |
200nF | |
2uF | |
20uF | |
200uF | |
2000uF | |
20mF |
Package:
1* NEW Digtital Backlight Meter XC6013L Capacitance Capacitor Tester Circuit
