Home > Instruments & Meters > Optical Lens & Instrument > Microscope > Monocular Head TXS06-02A Laboratory Biological Microscope With Cheap Price

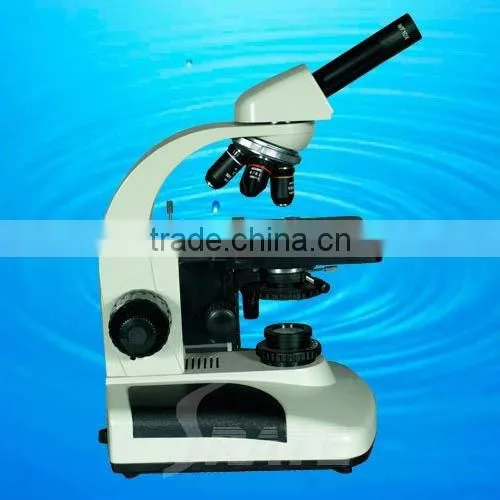

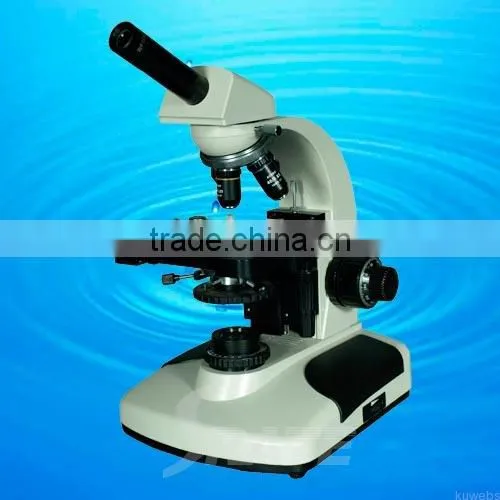

Monocular Head TXS06-02A Laboratory Biological Microscope With Cheap Price

Name: Monocular Head TXS06-02A Laboratory Biological Microscope With Cheap Price
Brand: Srate
SKU: 130296923
Availability: InStock

Monocular Head TXS06-02A Laboratory Biological Microscope With Cheap Price thumbnail-1

Monocular Head TXS06-02A Laboratory Biological Microscope With Cheap Price photo-1

US$ 159 - 179 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

Srate

Model Number:

TXS06-02A

Contact Supplier Request Quote Chat Now

Nanyang City Srate Optical Instrument Manufactory

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name Srate

Model Number TXS06-02A

Theory Biological Microscope

Drawtube Monocular

Monocular Head TXS06-02A Laboratory Biological Microscope with cheap price

Technical parameter:

Eyepiece(1):

Usually,the microscope is only equipped with wide-field and plano-scope eyepiece WF10X. If you need, we will also provide you wide-field eyepieces as WF5X, WF6X, WF12.5X, WF15X,WF16X, WF20X, or Huygenian eyepieces as 5X, 6X, 10X, 12.5X,15X, 16X. The specifications of WF10X are showed as following:

Wide Field Plane-scope Eyepiece	Magnification	Diameter of Viewing Field	Working Distance	Remark
WF10X	10	18mm	24.95mm	With point

Objective(4):

In this microscope, the standard outfit of the objective system is DIN achromatic objectives which are 4X, 10X, 40X (spring loaded), 100X (spring loaded, oil immersion). The objective 100X is a immersion lens.

When the 100X objective is used, between its top and the cover glass, should drop some immersion oil and

be sure to make the air bubble out. If there is some air bubble in oil, you may rotate the nosepiece once

more, or add more oil again. After finish observing, the top of the objective(100X and 40X) and the cover

glass should be cleaned at once. Otherwise the remained dry oil will impair the imaging quality in the next

observing. According to your requirement, we can also provide you infinity system plane-scope achromatic

objectives, infinity system achromatic objectives, plane-scope achromatic objectives, and semi-plan

achromatic objectives.

The specifications of the DIN achromatic objective system are showed as following:

DIN Achromatic Objective	Magnification	Numerical Aperture	Focal Distance	Working Distance	Cover Glass Thickness	Remark
4X	4	0.10mm	31.04mm	37.5mm	0.17mm
10X	10	0.25mm	17.13mm	7.316mm	0.17mm
40X	40	0.65mm	4.65mm	0.632mm	0.17mm	Spring
100X	100	1.25mm	2.906mm	0.198mm	0.17mm	Spring,Oil
