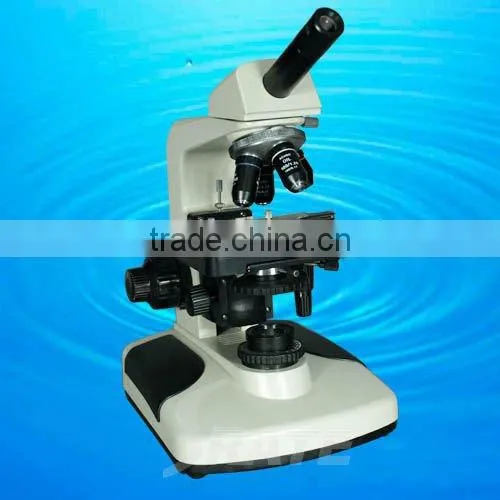

1600XOriginal ManufacturerTXS06-01A Achromatic Objective WF10/16X Biological Monocular Optical Microscope Price
Technical parameter:
Eyepiece(1):
Usually,the microscope is only equipped with wide-field and plano-scope eyepiece
WF10X. If you need, we will also provide you wide-field eyepieces as WF5X, WF6X,
WF12.5X, WF15X,WF16X, WF20X, or Huygenian eyepieces as 5X, 6X, 10X, 12.5X,
15X, 16X. The specifications of WF10X are showed as following:
|
Wide Field Plane-scope Eyepiece |
Magnification |
Diameter of Viewing Field |
Working Distance |
Remark |
WF10X |
10 |
18mm |
24.95mm |
With point |
Objective(4):
In this microscope, the standard outfit of the objective system is DIN achromatic
objectives which are 4X, 10X, 40X (spring loaded), 100X (spring loaded, oil immersion).
The objective 100X is a immersion lens.When the 100X objective is used, between its
top and the cover glass, should drop some immersion oil and be sure to make the air
bubble out.If there is some air bubble in oil, you may rotate the nosepiece once more,
or add more oil again. After finish observing,the top of the objective(100X and 40X) and
the cover glass should be cleaned at once. Otherwise the remained dry oil will impair
the imaging quality in the next observing. According to your requirement, we can also
provide you infinity system plane-scope achromatic objectives, infinity system achromatic
objectives, plane-scope achromatic objectives, and semi-plan achromatic objectives.
The specifications of the DIN achromatic objective system are showed as following:
|
DIN Achromatic Objective |
Magnification |
Numerical Aperture |
Focal Distance |
Working Distance |
Cover Glass Thickness |
Remark |
4X |
4 |
0.10mm |
31.04mm |
37.5mm |
0.17mm |
|
10X |
10 |
0.25mm |
17.13mm |
7.316mm |
0.17mm |
|
40X |
40 |
0.65mm |
4.65mm |
0.632mm |
0.17mm |
Spring |
100X |
100 |
1.25mm |
2.906mm |
0.198mm |
0.17mm |
Spring,Oil |
Specifications:
model:TXS06-01A
eyepiece:Wide Field Plane-Scope Eyepiece: WF10X,WF16X
objectives:45mm DIN Achromatic Objective: 4X,10X,40X(S),100X(S,Oil)
Magnification:40X-1600X
viewing head:Monocular head, 30° inclined, 360° Rotatable
nosepiece:quardruple nosepiece
stage:Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm
Ø2-Ø30mm Iris Diaphragm And Ø32 Filter
condensor:ABBE Condenser: N.A. 1.25
illumination: Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System
focusing:Coaxial Coarse And Fine Focusing Adjustable Mechanism: 30mm, Precision: 0.002m
Packings:
inner packing:Foamed Plastic + Inner Carton
outer packing:
Net Weight/Set: 6.2kg
Package: 1 Set/Carton 42X31X52cm
Gross Weight/Carton: 8.5kg
Effect image:
Certification:
Production line:
Packaging:
Brands We Cooperated:
Why Choose Us
1. Factory with 20 years and 9 years exporting experience
2. Located in the largest optical base of China, more professional
3. OEM / ODM available
4. Strict quality control department
5. Professional sales team to provide perfect service
6. Provide high quality products and the best price
7. Perfect optical processing program
