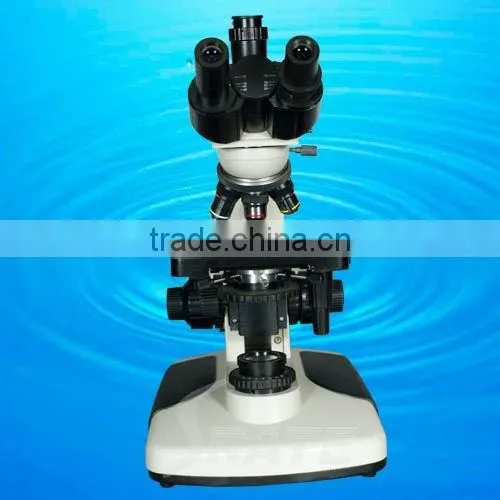

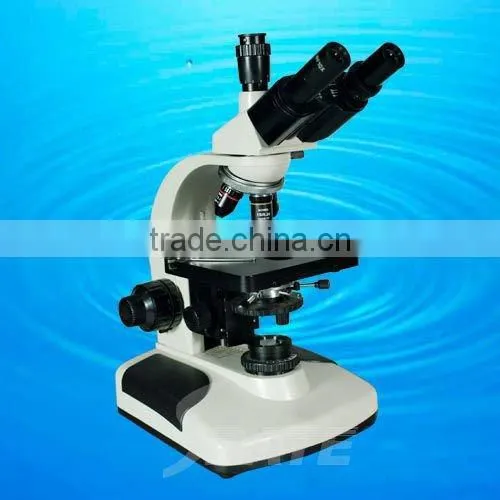

TXS06-02C Trinocular Drawtube and Video Microscope,Biological Microscope Theory hdmi camera
Technical parameter:
Eyepiece(1):
Usually,the microscope is only equipped with wide-field and plano-scope eyepiece WF10X. If you need, we will also provide you wide-field eyepieces as WF5X, WF6X, WF12.5X, WF15X,WF16X, WF20X, or Huygenian eyepieces as 5X, 6X, 10X, 12.5X,15X, 16X. The specifications of WF10X are showed as following:
Wide Field Plane-scope Eyepiece |
Magnification |
Diameter of Viewing Field |
Working Distance |
Remark |
WF10X |
10 |
18mm |
24.95mm |
With point |
Objective(4):
In this microscope, the standard outfit of the objective system is DIN achromatic objectives which are
4X, 10X, 40X (spring loaded), 100X (spring loaded, oil immersion). The objective 100X is a immersion lens.
When the 100X objective is used, between its top and the cover glass, should drop some immersion oil and
be sure to make the air bubble out. If there is some air bubble in oil, you may rotate the nosepiece once
more, or add more oil again. After finish observing, the top of the objective(100X and 40X) and the cover
glass should be cleaned at once. Otherwise the remained dry oil will impair the imaging quality in the next
observing. According to your requirement, we can also provide you infinity system plane-scope achromatic
objectives, infinity system achromatic objectives, plane-scope achromatic objectives, and semi-plan
achromatic objectives.
The specifications of the DIN achromatic objective system are showed as following:
DIN Achromatic Objective |
Magnification |
Numerical Aperture |
Focal Distance |
Working Distance |
Cover Glass Thickness |
Remark |
4X |
4 |
0.10mm |
31.04mm |
37.5mm |
0.17mm |
|
10X |
10 |
0.25mm |
17.13mm |
7.316mm |
0.17mm |
|
40X |
40 |
0.65mm |
4.65mm |
0.632mm |
0.17mm |
Spring |
100X |
100 |
1.25mm |
2.906mm |
0.198mm |
0.17mm |
Spring,Oil |
Specifications:
Model: TXS06-02C
Features: 45mm DIN Achromatic Objective: 4X, 10X, 40X(S), 100X(S, Oil)
Wide Field Plane-Scope Eyepiece: WF10X, WF16X
Total Magnification: 40X-1600X
Articulated Free Trinocular Head, Interpupillary Distance: 55-75mm; 30° Inclined, 360° Rotatable
Double Layers Mechanical Stage: 140X155mm, Moving Range X-Y: 70X50mm
Ø2-Ø30mm Iris Diaphragm And Ø32 Filter
ABBE Condenser: N.A. 1.25
Coaxial Coarse And Fine Focusing Adjustable Mechanism: 30mm Precision: 0.002mm
Built-in Adjustable Brightness Halogen Lamp 6V/20W and Kohlar Illumination System
Packings:
Outer packing: Net Weight/Set: 6.8kg
Package: 1 Set/Carton 42X31X52cm
Gross Weight/Carton: 9.3kg
Effect image:
Certification:

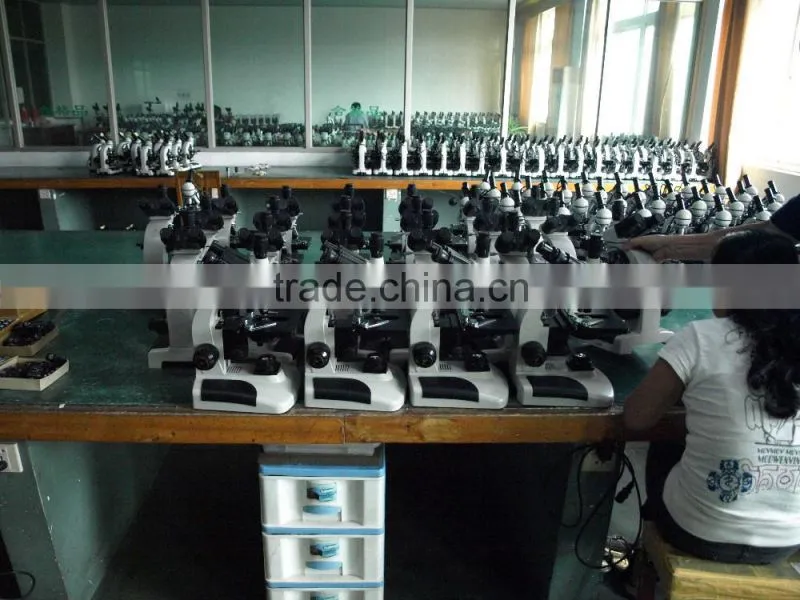

Product line:

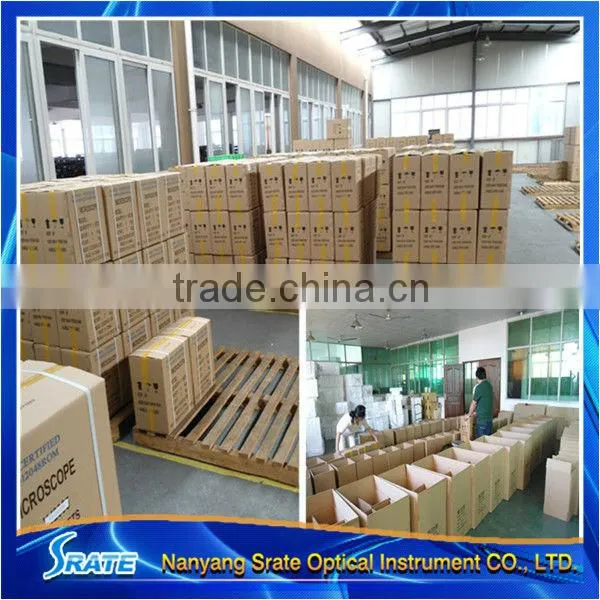

Package:
Brands We Cooperate with:
Why Choose Us
1. Factory with 20 years and 9 years exporting experience
2. Located in the largest optical base of China, more professional
3. OEM / ODM available
4. Strict quality control department
5. Professional sales team to provide perfect service
6. Provide high quality products and the best price
7. Perfect optical processing program
