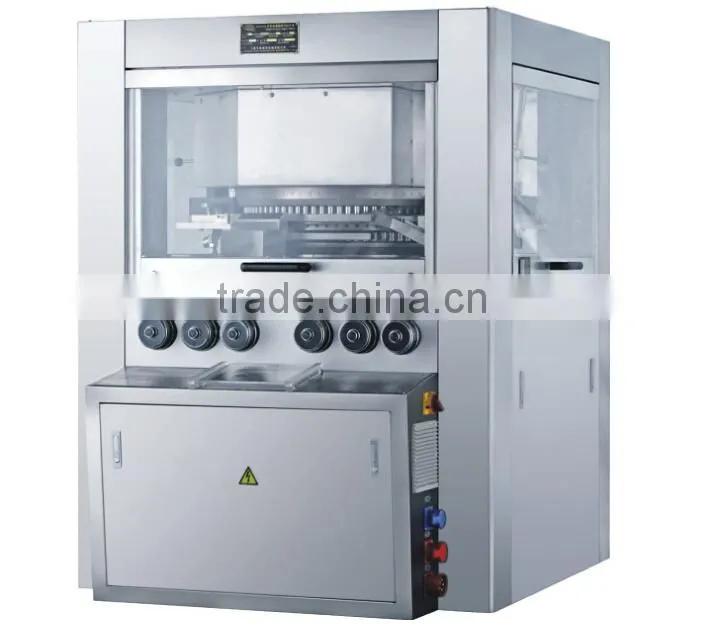

GZPM-620 Series High Speed Rotary Tablet Press
Product Description:
This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.
This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
Feature:
1.High speed with large quantity punches, double press rollers, suitable for mass production.
2.Made of stainless steel, the housing is fully closed. The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP
requirements.
3.Perfect tableting system, twice compression forming, reasonable framework with proper space and big pressure roller, machine performance is reliable and no tablet weight difference.
4.Double impeller type force feeder, improve granules flow-ability and filling performance, ensure the
filling precision.
5.Tooling track adopt double-side lifting structure, the punches are balanced stress and wear
resistance.
6.High performance electrical control system, ensure each program processing precisely.
7.Automatic oil&grease central lubrication system, ensure the lubrication of pressure rollers, toolings and tracks, extending the working life of the machine
8.Special oil proof, dust proof and noise proof design.
Main Technology Parameter:
Model |
GZP-43 |
GZP-55 |
GZP-65 |
GZP-69 |
||||
Number of Stations |
43 |
55 |
65 |
69 |
||||
Tooling Standard |
D |
B |
BB |
BBS |
||||
Max Main Pressure (KN) |
100 |
|||||||
Max Pre-pressure (KN) |
20 |
|||||||
Max Tablet Diameter |
round tablet |
25 |
18 |
13 |
11 |
|||
(mm) |
irregular tablet |
25 |
19 |
16 |
13 |
|||
Max Filling Depth (mm) |
20 |
18 |
15 |
15 |
||||
Max Tablet Thickness (mm) |
8 |
7 |
6 |
6 |
||||
Max Turret Speed (r/min) |
50 |
|||||||
Max Production Capacity (pcs/h) |
258000 |
330000 |
390000 |
414000 |
||||
Motor Power (kw) |
11 |
|||||||
Overall Size (mm) |
1530×1250×1900 |
|||||||
Machine Weight (kg) |
3500 |
|||||||

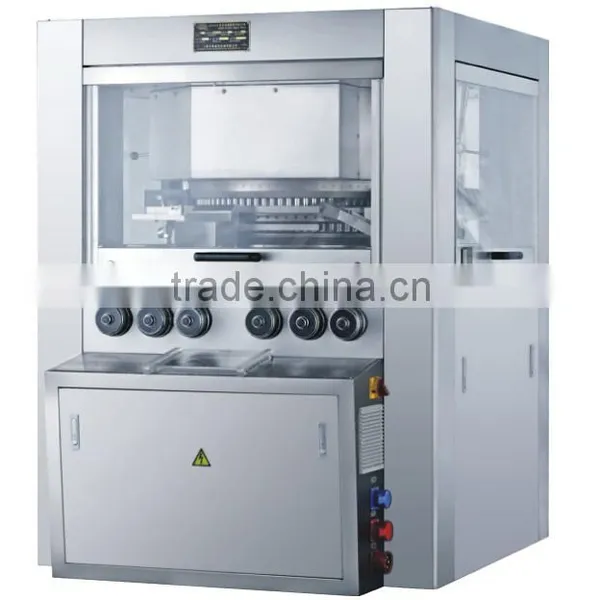

Machine Pictures:
About SPM
Shanghai Pharmaceutical Machinery Co. Ltd. (SPM) is recognized as a major pharmacy equipment manufacturer and supplier. Our company is founded in Shanghai, China, with a base of 20 years
of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a
well-planned manner. We now offer a comprehensive line of quality pharmaceutical machines at
competitive prices. In addition, we can undertake turnkey projects for conceptual design, process
design, water treatment solutions, cleanroom design, etc.
Industries Served
At SPM, we focus on fabricating efficient and technically sound pharmaceutical machines that meet or exceed our customers' expectations. Our vast product selection caters to numerous industries, worldwide. Some of the areas we serve are
- Food Industry
- Pharmaceutical Industry
- Chemical Industry
- Electronic Industry
- Ceramic Industry
SPM Products
Our products fall into four categories, which are solid preparation machinery,iquid-injection processing
machinery, pharmaceutical packaging machinery, and laboratory instruments. Some of our primary products
are pulverizers, blenders, granulators, sterilizing machines, blister packing machines, encasing machines, air
compressors, and tablet testing instruments. Our solid preparation equipment and liquid processing equipmen,which are corrosion resistant, highly effective, safe, and easy to use, are utilized in countless applications.
For example, our rotary tablet press presses granular materials into tablets, our capsule filling machine is
suitable for filling powdered or granular materials into capsules, and our freeze drying machine is mainly
used for the cryodrying of blood products, vaccines, antibiotics, and biological products. For more product
applications, please see our product page to find a complete list of our pharmaceutical machinery.
International Markets
Our experience with pharmaceutical machinery throughout the world has built us a reputation as a
trusted pharmacy-equipment supplier. Currently, our products are exported to many parts of the
world, including Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romani,
Bulgaria, Russia, South Africa, Nigeria, USA, Australia, Canada, Argentina, Chile, and more.
Projects
Customer Service
Our excellent customer service also includes the installation of our machines. To ensure smooth
performance, we also provide a one year warranty, and a spare set of wearing parts to our customers.
If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.
Please contact us to help you with your particular spare parts of pharmaceutical equipment.
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2.Guaranteed:
We provide a one year warranty, and a spare set of wearing parts.
3.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
