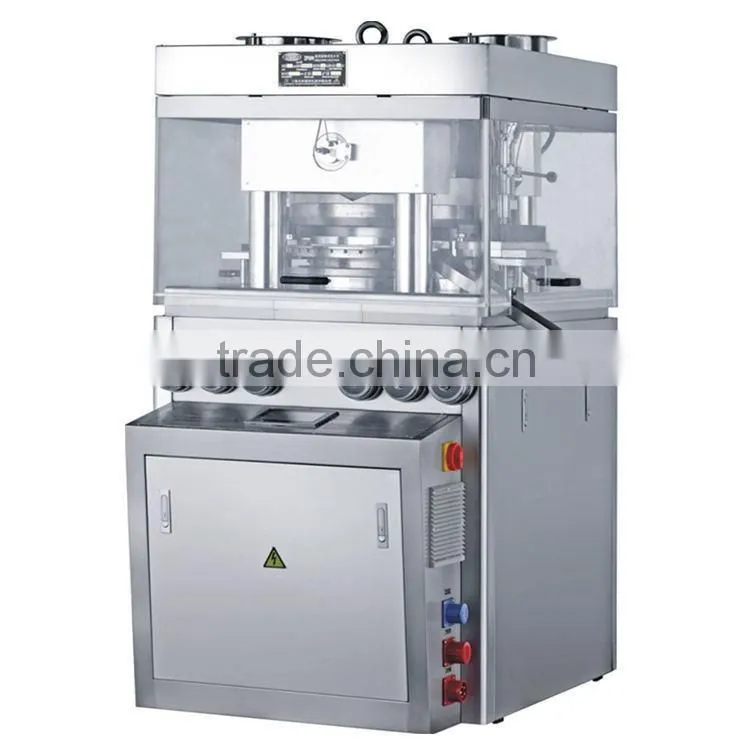

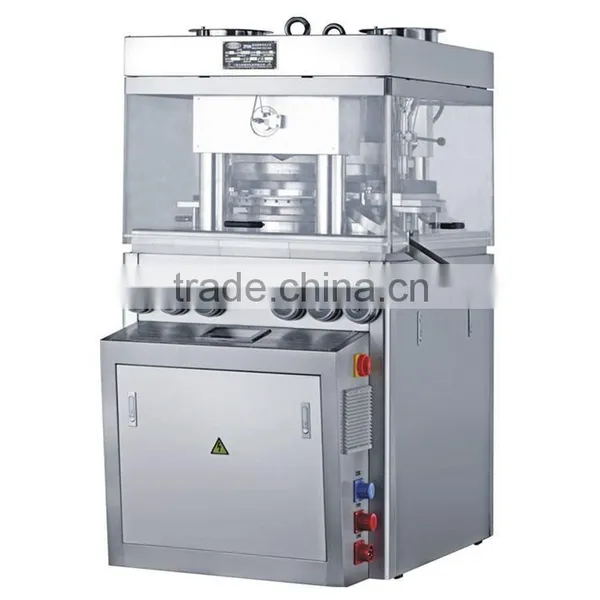

ZPM 500 Series High-speed Rotary Pill Press Machine
Application:
This machine is one kind of tablet press machine, of granular materials into tablets.
It is mainly used to press hard-forming materials into tablets in pharmaceutical industry and also the chemical, food, electronic industries.
Feature:
1. This machine adopts a fully enclosed structure with the operation compartment isolated compartment isolated from the outside. Ensuring the cleanness in the tablet compressing area without creation of cross contamination with the outside. The compressing compartment is wholly made of stainless steel, which is in compliance with the GMP requirement on the production of pharmaceuticals.
2. The surface of turret is with chrome playing to avoid the wearing of turret.
3. The machine adopts the adjustment of speed by means of frequency inversion. The motor is connected with under plate to avoid the motor shaking when working.
4. Fully automatic lubrication system with interval type, micro flow and quantitative, to lubricate the upper&lower tracks and the heads of punches and reduce the wearing of these parts.
5. An overload protection unit is equipped in the machine to avoid the damage of the punches and apparatus. When overload occurs, the machine stops automatically.
6. Different kinds of impellers for force feeder, to meet the feeding requirement of different raw materials.
Main technical parameter:
Number of punches and diess(sets) |
35 sets |
43sets |
51 sets |
55sets |
Model of P/D(mm) |
IPT25.4mm |
IPT25.4mm |
IPT19mm |
IPT19mm |
Outer diameter of middle die(mm) |
38.1mm |
30.16mm |
24mm |
22mm |
Max. Pre-pressing compression pressure(kn) |
18kn |
18kn |
18kn |
18kn |
Max. main compression pressure(kn) |
100kn |
100kn |
80kn |
80kn |
Max. tablet diameter(mm) |
25mm |
18mm |
13mm |
11mm |
Max. filling depth(mm) |
20mm |
18mm |
15mm |
15mm |
Max. speed of rotary table(r/min) |
25r/min |
40r/min |
45r/min |
50r/min |
Max. production capacity(pcs/h) |
105,000pcs/h |
206,000 pcs/h |
275,000 pcs/h |
330,000 pcs/h |
Main motor |
7.5kw/1430r/min/380v/50Hz |
5.5kw/1430r/min/380v/50Hz |
||
Overall Dimensions |
950x1300x1850 |
|||
Net weight(kg) |
2500Kg |
|||
About SPM
Shanghai Pharmaceutical Machinery Co. Ltd. (SPM) is recognized as a major pharmacy equipment manufacturer and supplier. Our company is founded in Shanghai, China, with a base of 20 years
of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a
well-planned manner. We now offer a comprehensive line of quality pharmaceutical machines at
competitive prices. In addition, we can undertake turnkey projects for conceptual design, process
design, water treatment solutions, cleanroom design, etc.
Industries Served
At SPM, we focus on fabricating efficient and technically sound pharmaceutical machines that meet or exceed our customers' expectations. Our vast product selection caters to numerous industries, worldwide. Some of the areas we serve are
- Food Industry
- Pharmaceutical Industry
- Chemical Industry
- Electronic Industry
- Ceramic Industry
SPM Products
Our products fall into four categories, which are solid preparation machinery,iquid-injection processing
machinery, pharmaceutical packaging machinery, and laboratory instruments. Some of our primary products
are pulverizers, blenders, granulators, sterilizing machines, blister packing machines, encasing machines, air
compressors, and tablet testing instruments. Our solid preparation equipment and liquid processing equipmen,which are corrosion resistant, highly effective, safe, and easy to use, are utilized in countless applications.
For example, our rotary tablet press presses granular materials into tablets, our capsule filling machine is
suitable for filling powdered or granular materials into capsules, and our freeze drying machine is mainly
used for the cryodrying of blood products, vaccines, antibiotics, and biological products. For more product
applications, please see our product page to find a complete list of our pharmaceutical machinery.
International Markets
Our experience with pharmaceutical machinery throughout the world has built us a reputation as a
trusted pharmacy-equipment supplier. Currently, our products are exported to many parts of the
world, including Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romani,
Bulgaria, Russia, South Africa, Nigeria, USA, Australia, Canada, Argentina, Chile, and more.
Projects
Customer Service
Our excellent customer service also includes the installation of our machines. To ensure smooth
performance, we also provide a one year warranty, and a spare set of wearing parts to our customers.
If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.
Please contact us to help you with your particular spare parts of pharmaceutical equipment.
1.How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2.Guaranteed:
We provide a one year warranty, and a spare set of wearing parts.
3.Service and Payment Terms?
A. We usually accept T/T, L/C;
B. T/T: 30% in advance as down payment, the balance before delivery;
C. We take pictures of finished products before delivery.
