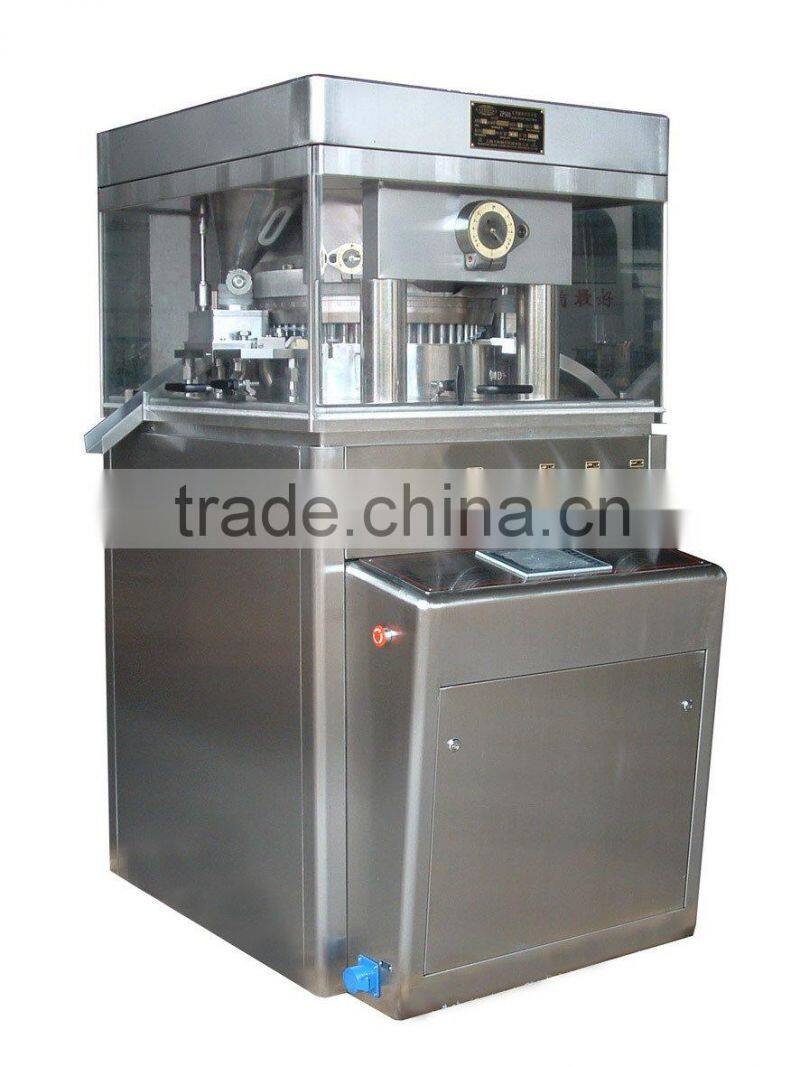

Help CenterZPM500 Series High Speed Rotary Tablet Press
Related Products
-
GZPL-680 Double Sided High-speed Rotary Tablet PressNegotiableMOQ: 1 Set -
GZL Series Vacuum Lyophilizer for PharmaceuticalNegotiableMOQ: 1 Set
-
FD-1 Laboratory Freeze Dryer Vacuum Freeze-dried Bag01NegotiableMOQ: 1 Set
-
FD-1 Laboratory Freeze Dryer Vacuum Freeze-driedNegotiableMOQ: 1 Set
-
FD-1 Laboratory Freeze Dryer Freeze Dryer IndustrialNegotiableMOQ: 1 Set
Quick Details
| Condition: | Place of Origin: | Brand Name: | |||
| Model Number: | Type: | Production Capacity: | |||
| Max. Pressure(KN): | Max. Tablet Thickness(mm): | Max. Tablet Diameter(mm): | |||
| Voltage: | Power(W): | Weight: | |||
| Dimension(L*W*H): | Certification: | After-sales Service Provided: | |||
| Product name: |
Packaging & Delivery
| Packaging Details: | The package of ZPM500 series high speed rotary tablet press machine: standard export wooden case |
| Delivery Detail: | 30 days after order confirm rotary tablet press |
Application:
This machine is one kind of tablet press machines, of granular materials into tablets.
It is mainly used to press hard-forming materials into tablet in pharmaceutical industry and also the chemical, food, electronic industries.
Feature:
1. This machine adopts a fully enclosed structure with the operation compartment isolated compartment isolated from the outside. Ensuring the cleanness in the tablet compressing area without creation of cross contamination with the outside. The compressing compartment is wholly made of stainless steel, which is in compliance with the GMP requirement on the production of pharmaceuticals.
2. The surface of turret is with chrome playing to avoid the wearing of turret.
3. The machine adopts the adjustment of speed by means of frequency inversion. The motor is connected with under plate the to avoid the motor shaking whe working.
4. Fully automatic lubrication system with interval type, micro flow and quantitative, to lubricate the upper&lower tracks and the heads of punches and reduce the wearing of these parts.
5. Different kinds of impellers for force feeder, to meet the feeding requirement of different raw materials.
Main Technical Parameter:
Punches Dies(sets) |
35 |
43 |
51 |
55 |
Model of P/D(mm) |
IPT25.4 |
IPT25.4 |
IPT19 |
IPT19 |
Outer diameter of middle die (mm) |
38.1 |
30.16 |
24 |
22 |
Max.Pre-pressure(KN) |
18 |
18 |
18 |
18 |
Max.main pressure(KN) |
100 |
100 |
80 |
80 |
|
Max.diameter of tablets (mm)
|
25 |
18 |
13 |
11 |
Max.filling depth (mm) |
20 |
18 |
15 |
15 |
Max.rotating speed of turret (r/min) |
25 |
40 |
45 |
50 |
duction capacity (pcs/h) |
105,000 |
206,000 |
275,000 |
330,000 |
Main motor |
7.5kw/1430r/min/380v/50Hz |
5.5kw/1430r/min/380v/50Hz |
||
|
Overall Size (L*W*H)(mm) |
950*1300*1850 |
|||
Net weight(kg) |
2500 |
|||
