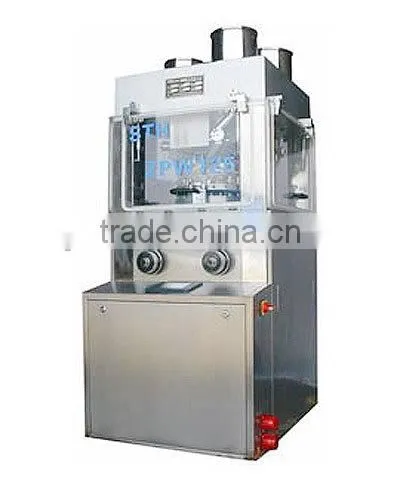

Help CenterZPW Series Rotary Tablet Press
Related Products
| Condition: | Max. Filling Depth: | 18mm | |
| Model Number: | Material: | Stainless steel | |
| Max. Pressure(KN): | Brand Name: | SPM | |
| Voltage: | Production Capacity: | 138000-204000pc/h | |
| Application | Tablet,pill pressing | Max. Tablet Diameter(mm): | 13-25mm |
| Die Numbers: | 25/31/37 | After-sales Service Provided: | Engineers available to service machinery overseas |
| Max. Turret Speed: | 46r/min | Product Name: | Rotary Tablet Press |
| Type: | Rotary Tablet Press | Usage: | tablet production |
| Power(W): | 4kw |
Packaging & Delivery
| Packaging Details: | Export Wooden Cases |
| Delivery Detail: | 30days |
Application:
It is widely used to press various granular materials into tablets in the pharmaceutical,food,chemical,ceramic,electronic and battery industries.
According to the shape of tablet, our tablet press can produce round, irregular,ring shaped or double engraved tablets.
When is comes to the layer of tablet,this series press can make single layer,double-layer and even triple-layer tables to satisfy different demands of our customers.
Features:
The tablet press(or pill press) is compatible to the GMP requirement, The tablet-pressing compartment is separated from the driving mechanism to prevent the contamination of the pharmaceutical materials. It is made of stainless steel or zinc plated in the surface for good abrasion and corrosion resistance.
With the main machine and the operational control panel separated,ZPW multi-function rotary tablet press is convenient to operate and maintain.
Adopting PLC programmable controller, the main functions,production data and malfunction of the tablet pressing are monitored and controlled.
Due to the usd of inverter, the adjustment of speed is stepless and reliable with a wide range.
Motor with frequency inverter is utilized to ensure the constant power and speed adjustment with consistent torque,thus meeting the requirement on the torque with the stipulated range for the rotary speed of the press.
Main Technical Parameter:
Type |
ZPW25 |
ZPW31 |
ZPW37 |
Dies |
25 |
31 |
37 |
Max. Pressure(KN) |
80 |
80 |
80 |
Max. Dia. of Tablet(mm) |
25 |
18 |
13 |
Max. Depth of Fill(mm) |
18 |
18 |
18 |
Max. Turret Speed(r/min) |
46 |
46 |
46 |
|
Production Capacity(pcs/h)
single-layer:
double-layer:
|
138000 65000 |
171000 80000 |
204000 100000 |
Motor Power(kw) |
4 |
4 |
4 |
About SPM
Shanghai Pharmaceutical Machinery Co. Ltd. (SPM) is recognized as a major pharmacy equipment manufacturer and supplier. Our company is founded in Shanghai, China, with a base of 20 years
of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a
well-planned manner. We now offer a comprehensive line of quality pharmaceutical machines at
competitive prices. In addition, we can undertake turnkey projects for conceptual design, process
design, water treatment solutions, cleanroom design, etc.
Our products fall into four categories, which are solid preparation machinery,iquid-injection processing
machinery, pharmaceutical packaging machinery, and laboratory instruments. Some of our primary products
are pulverizers, blenders, granulators, sterilizing machines, blister packing machines, encasing machines, air
compressors, and tablet testing instruments. Our solid preparation equipment and liquid processing equipmen,which are corrosion resistant, highly effective, safe, and easy to use, are utilized in countless applications.
For example, our rotary tablet press presses granular materials into tablets, our capsule filling machine is
suitable for filling powdered or granular materials into capsules, and our freeze drying machine is mainly
used for the cryodrying of blood products, vaccines, antibiotics, and biological products. For more product
applications, please see our product page to find a complete list of our pharmaceutical machinery.
International Markets
Our experience with pharmaceutical machinery throughout the world has built us a reputation as a
trusted pharmacy-equipment supplier. Currently, our products are exported to many parts of the
world, including Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romani,
Bulgaria, Russia, South Africa, Nigeria, USA, Australia, Canada, Argentina, Chile, and more.
