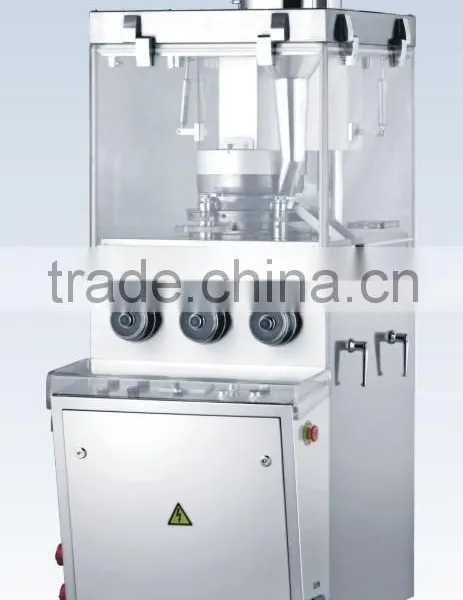

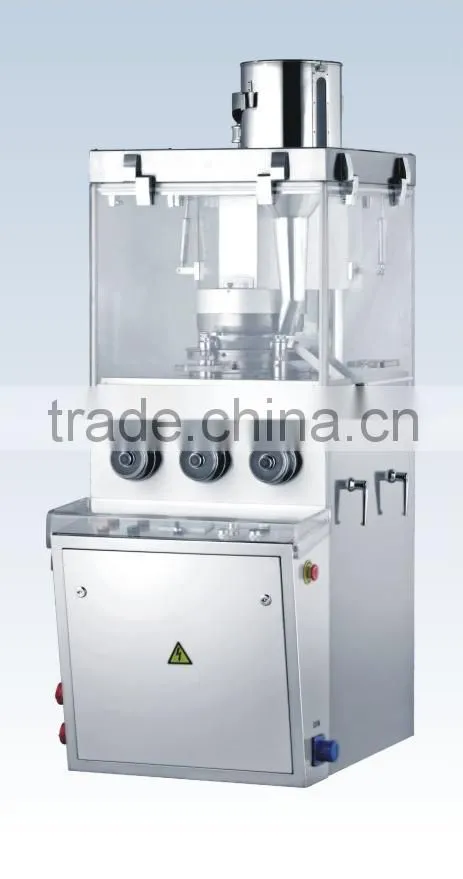

Help CenterZP17 Rotary Tablet Press
Related Products
Quick Details
| Place of Origin: | Brand Name: | ||
| Type: | Production Capacity: | ||
| Max. Tablet Thickness(mm): | Max. Tablet Diameter(mm): | ||
| Max.diameter of tablets(mm): | Max. Pressure(KN): | 60KN | |
| The Max.Filling Depth(mm): | The Max. thickness of tablet: | 7 | |
| The Power: | The weight (KG): |
Packaging & Delivery
| Packaging Details: | The Export standard Package |
| Delivery Detail: | 30 days |
Application:
This machine is not only suitable for pressing round tables from various kinds of granular materials but also different geometric shape tablets,specially for small-scale batch production.The turret carries 17 cets of punches and dies ,so 17tablets will be pressed for each rotation of the turret.
During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted, The mechanical buffer unit will prevent puches and apparatus from overload damage.A powder suction unit is attached to take in the residual powder during operation,so that the blockage by the residual powder can be eliminated and the collected powder material can be reused.
Main Technical Parameter:
| Dies(sets) | 17 |
| ure(KN) | 50 |
| Max.depth of Filling(mm) | 18 |
| Max.dia of tabler(mm) | 20 |
| Max.thickness of tablet(mm) | 7 |
| Production capacity(pcs/h) | 40800 |
| Motor Power | 2.2KW 960R/MIN 380V |
| Overall siza(mm) | 980X780X1800 |
| Net weight(kg) | 980 |
About SPM
Shanghai Pharmaceutical Machinery Co. Ltd. (SPM) is recognized as a major pharmacy equipment manufacturer and supplier. Our company is founded in Shanghai, China, with a base of 20 years
of prior experience in the pharmaceutical industry. This has allowed us to expand our business in a
well-planned manner. We now offer a comprehensive line of quality pharmaceutical machines at
competitive prices. In addition, we can undertake turnkey projects for conceptual design, process
design, water treatment solutions, cleanroom design, etc.
Industries Served
At SPM, we focus on fabricating efficient and technically sound pharmaceutical machines that meet or exceed our customers' expectations. Our vast product selection caters to numerous industries, worldwide. Some of the areas we serve are
- Food Industry
- Pharmaceutical Industry
- Chemical Industry
- Electronic Industry
- Ceramic Industry
SPM Products
Our products fall into four categories, which are solid preparation machinery,iquid-injection processing
machinery, pharmaceutical packaging machinery, and laboratory instruments. Some of our primary products
are pulverizers, blenders, granulators, sterilizing machines, blister packing machines, encasing machines, air
compressors, and tablet testing instruments. Our solid preparation equipment and liquid processing equipmen,which are corrosion resistant, highly effective, safe, and easy to use, are utilized in countless applications.
For example, our rotary tablet press presses granular materials into tablets, our capsule filling machine is
suitable for filling powdered or granular materials into capsules, and our freeze drying machine is mainly
used for the cryodrying of blood products, vaccines, antibiotics, and biological products. For more product
applications, please see our product page to find a complete list of our pharmaceutical machinery.
International Markets
Our experience with pharmaceutical machinery throughout the world has built us a reputation as a
trusted pharmacy-equipment supplier. Currently, our products are exported to many parts of the
world, including Korea, India, Indonesia, Pakistan, Thailand, Vietnam, Iran, Japan, Denmark, Romani,
Bulgaria, Russia, South Africa, Nigeria, USA, Australia, Canada, Argentina, Chile, and more.
Projects
Customer Service
Our excellent customer service also includes the installation of our machines. To ensure smooth
performance, we also provide a one year warranty, and a spare set of wearing parts to our customers.
If any difficulty occurs, we will supply free spare parts and even on-site service, upon request.
Please contact us to help you with your particular spare parts of pharmaceutical equipment.
