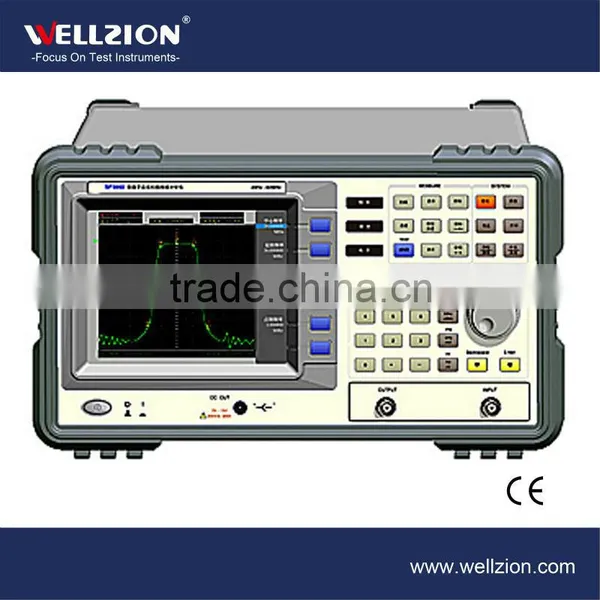

SP30120,DDS Frequency Sweeper

SP30120,DDS Frequency Sweeper thumbnail-1
SP30120,DDS Frequency Sweeper photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Model Number:
SP30120
Contact Supplier Request Quote Chat Now
Xiamen Wellzion Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Model Number SP30120

Features and Benefits

  • Accurate output signal outpout power range +13dBm~-87dBm, flatness≤±0.5dB
  • Detector inside, not need external dector. Can apply measurement function in any area within 20Hz~120MHz range
  • Display maker pointer's frequency and measurement value simultameously
  • 6.4" TFT color LCD display
  • 5 markers can be set and display simultameously
  • RS232,VGA port inside and GPIB,USB port is optional
  • Embedded operating system
  • Store,recall and analyze data of sweep waveforns
  • Auto scan limited value
  • Can auto scan,set and compare reference lines
  • Can measure-3dB bandwidth and Q value



SP30120,DDS Frequency Sweeper

Frequency Range 20Hz~120MHz
Frequency Accuracy ≤±5×10-6
Frequency Stability ≤±1×10-6
Frequency Resolution 1μHz
Harmonic Distortion -50dBc ( f≤5MHz )
Total Harmonic distortion ≤0.5% (f≤100kHz)
Output Power (max) +13dBm
Power Resolution 0.1dBm
Power flatness ≤±0.5dBm  (calibrated)
Output Impedance 50Ω/75Ω optional
Attenuation 0~80dB,0.1dB Step
Sweep range 20Hz~120MHz or CW (span zero)
Output Level +13dBm~ -87dBm
Sweep Time Auto, Manual(50ms~10s)
Intput Impedance 50Ω/75Ω /1MΩ optional
Input range 70dB
Visible range 80dB
Marker 5 markers, free to set and display frequency and measurement v alue simultameously
Screen 6.4”TFT LCD panel
Size 340mm×170mm×360mm
Weight 6kg
