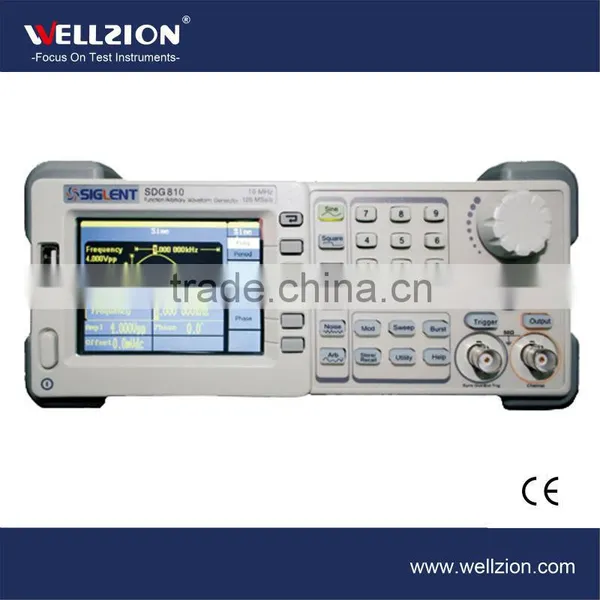

Siglent SDG830,siglent Arbitrary Generator,30mhz Arbitrary Signal Generator

Siglent SDG830,siglent Arbitrary Generator,30mhz Arbitrary Signal Generator thumbnail-1
Siglent SDG830,siglent Arbitrary Generator,30mhz Arbitrary Signal Generator photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Model Number:
SDG830
Contact Supplier Request Quote Chat Now
Xiamen Wellzion Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Model Number SDG830

Specifications

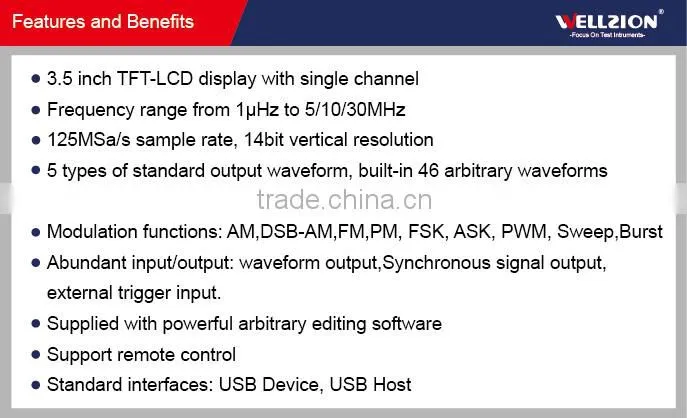

125MSa/s sample rate, 14bit vertical resolution, 16Kpts wave length.
Abundant modulation function, sweep-frequency output

Siglent SDG830,siglent arbitrary generator,30mhz arbitrary signal generator



Siglent SDG830,siglent arbitrary generator,30mhz arbitrary signal generator

Frequency Specification Model SDG805 SDG810 SDG830
Waveform Sine, Square, Ramp, Pulse, Gaussian Noise. 46 built-in arbitrary waveforms(include DC)
Output channels 1 Channel
Sine 1μHz ~ 5MHz 1μHz ~ 10MHz 1μHz ~ 30MHz
Square 1μHz ~ 5MHz 1μHz ~ 10MHz 1μHz ~ 10MHz
Pulse 500μHz ~ 5MHz
Ramp/Triangular 1μHz ~ 300kHz
Gaussian white noise >5MHz (-3dB) >10MHz (-3dB) >30MHz (-3dB)
Arbitrary 1μHz ~ 5MHz
Resolution 1μHz
Accuracy Within 90days ±50ppm within 1 year ±100ppm
Temperature coefficient <5ppm/°C
Sine Wave Harmonic Distortion DC~1MHz         <-60dBc
1MHz~10MHz   <-55dBc
10MHz~30MHz <-50dBc
Total harmonic waveform distortion DC~20kHz 1Vpp<0.2%
Spurious signal(non-harmonic) DC~1MHz         <-70dBc
1MHz~10MHz   <-60dBc
10MHz~30MHz <-55dBc
Phase noise 10kHz Offset,–108dBc/Hz(typical value)
Square Wave Rise/fall time <24ns(10% ~ 90%)
Overshoot <5%(typical,1kHz,1Vpp)
Duty Cycle 20%~80%
Asymmetric 1% of period+20ns(typical,1kHz,1Vpp)
Jitter 500ps + 0.001% of period
Ramp/Triangle Wave Linearity <0.1% of Vpp(typical,1kHz,1Vpp,100% symmetric)
Symmetry 0%~100%
Pulse Wave Pulse width 16ns, Min. 1ns resolution
Rise/Fall time 20ns~1.6ks (10% ~ 90%,typical)
Duty Cycle 0.1%Resolution
Overshoot <5%
Jitter(pk-pk) 500ps + 0.001% of period
Arbitrary Wave Waveform length 16k points
Vertical resolution 14bits
Sample rate 125MSa/s
Min. Rise/Fall time 8ns(typical)
Jitter(pk-pk) 8ns(typical)
Storage in non-volatile RAM memory 10 waveforms (10 in total)
Output Specification Amplitude 2mVpp~10Vpp(50Ω,≤10MHz)
2mVpp~5Vpp(50Ω,>10MHz)
Vertical accuracy ±(1mVpp +0.3dB of setting value)   (100 kHz sine)
Amplitude flatness ±0.3 dB (compared to 100 kHz sine,5Vpp)
Impedance 50Ω
Protection short-circuit protection
DC Offset Range(DC) ±5V(50Ω)
±10V(High-Z)
Offset accuracy ±(|setting offset value|*1%+3mV)
AM Modulation Carrier Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform Sine, Square, Ramp, Noise, Arbitrary (2mHz ~ 20kHz)
Modulation depth 0% ~ 120%
DSB-AM Modulation Carrier Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform Sine, Square, Ramp, Noise, Arbitrary (2mHz ~ 20kHz)
Modulation depth 0% ~ 120%
FM Modulation Carrier Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform Sine, Square, Ramp, Noise, Arbitrary (2mHz ~ 20kHz)
Frequency deviation 0 ~0.5*bandwidth 1mHz resolution
PM Modulation Carrier Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform Sine, Square, Ramp, Noise, Arbitrary (2mHz ~ 20kHz)
Phase Deviation 0~360° ,0.1°Resolution
FSK Modulation Carrier Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform 50% duty-cycle square waveform(2mHz~50kHz)
ASK Modulation Carrier Sine, Square, Ramp, Arbitrary(except DC)
Modulation waveform 50% duty-cycle square waveform(2mHz~50kHz)
PWM Modulation Frequency 500μHz~20kHz
Modulation waveform Sine, Square, Ramp, Arbitrary(except DC)
Sweep Carrier Sine, Square, Ramp, Arbitrary(except DC)
Type linear/logarithmic
Direction Up/down
Sweep time 1ms~500s
Trigger source Manual, external, internal
Burst Waveform Sine, Square, Ramp, Pulse, Arbitrary(except DC)
Type Count(1~50,000 periods),infinite, Gated
Start/Stop phrase 0°~360°
Internal period 1μs~500s
Gated source External trigger
Trigger source Manual, External or Internal
Trigger Input Input Level TTL compatible
Slope Up or down
Pulse width >100ns
Input impedance >5kΩ,DC coupling
SYNC Output Voltage level TTL compatible
Pulse width >50ns
Output impedance 50Ω(typical)
Max. frequency 2MHz
Interface Standard Interface USB Device, USB Host
Display type 3.5inch’TFT-LCD
Dimension 229(W)mm*105(H)mm*281(D)mm
Weight N.W: 2.6Kg; G.W: 3.4Kg
