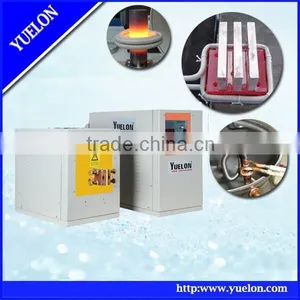

UF-20AB
Main specifications:
Maximum input power: 20KW
Oscillating frequency: 50-250KHz
Maximum input current: 30A
Heating current: 5-45A
Input voltage: 3phases 380VAC, 50 or 60Hz
Duty cycle: 100%
Cooling water: ≥0.2Mpa 5L/min
Auto heating time: 0.1-99.9seconds
Auto retaining time: 0.1-99.9seconds
Auto cooling time: 0.1-99.9seconds
Generator Weight: 30KG
Generator size: 580x260x500mm
Transformer weight:18KG
Transformer size: 390x260x370mm
Packing weight: 81KG
Packing size: 680x620x600mm
Main characteristics:
- With high frequency up to 250KHZ , and very thin and tiny parts can be easily heated.
- IGBT and current inverting technologies have been used; higher reliability and lower maintenace cost.
- 100% duty cycle, continuous working is allowed at maximum power output.
- Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
- Display of heating power and heating current and oscillating frequency.
- Simple to install , installation can be done by unprofessional person very easily;
- Light weight, small size;
- different shape and size of induction coil can be changed easily to heat different parts.
- Advantages of the model with timer: the power and the operating time of the heating period and the retain
period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production
to improve the repeatability.
Main applications:
- heat treatment of gear and shaft
- steel and stainless steel screw coating
- floating melt for institute or college research
- tiny or powder material melting

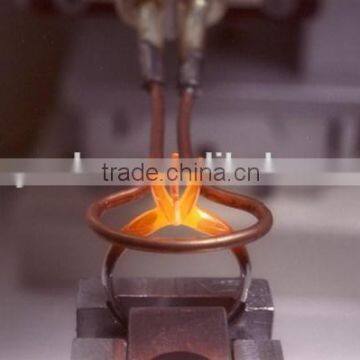

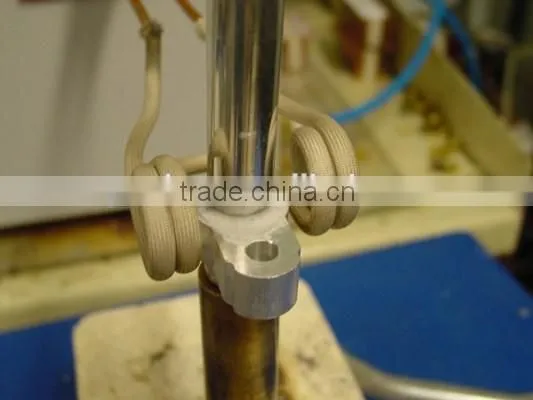

- copper joint brazing
- etc.
Ultrahigh frequency (0.1-1.1MHZ)

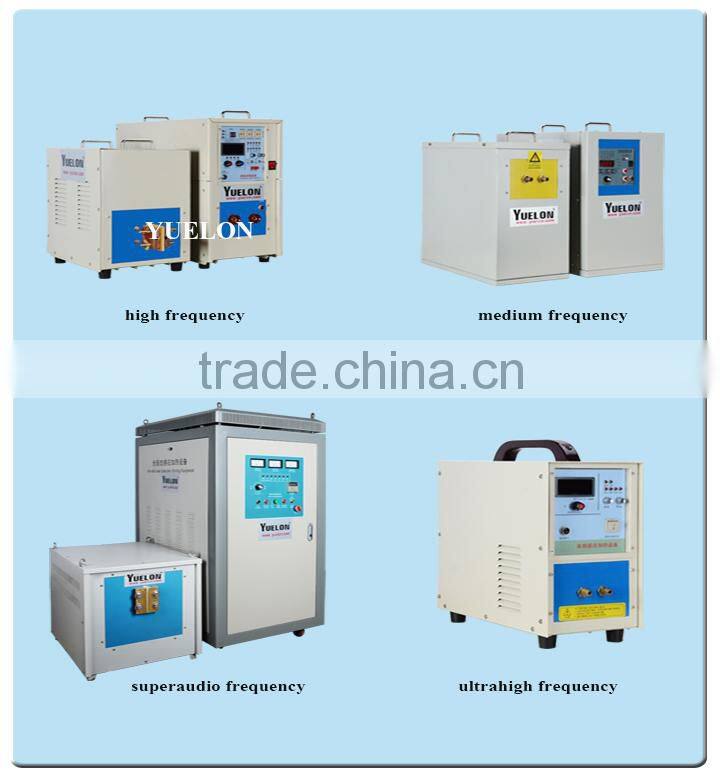

General introduction of UF series:
The oscillating frequency of UF series machines is above 100KHZ, from 100KHZ to 1100KHZ, and machines
of this frequency are suitable for brazing, forging and heat treatment and a lot of other applications, especially
suitable for surface heat treatment and wire annealing and so on.
Power range of UF series is from 3KW to 160KW, UF series machines are of the most advanced technology,
and unique technology. Wide application for all metal heating areas.
Model explanation: UF-XXX AB
UF-- Ultrahigh frequency series
XXX – rated input power
AB – additional function A – with timer function B – split type that is with separated transformer
Main models and specifications:
Models |
Maximum input power |
Oscillating frequency |
Maximum input current |
Input voltage |
Duty cycle |
UF-04A |
4KW |
100-250KHZ |
15A |
Single phase 220V |
80% |
UF-03AB |
3KW |
0.5-1.1MHZ |
14A |
Single phase 220V |
80% |
UF-06A-I |
6.6KW |
200-500KHZ |
27A |
Single phase 220V |
80% |
UF-06A-II |
200-700KHZ |
||||
UF-06A-III |
0.5-1.1MHZ |
||||
UF-10A-I |
10KW |
50-300KHZ |
15A |
3phase 380V |
100% |
UF-10A-II |
10KW |
200-500KHZ |
15A |
Single phase 220V |
80% |
UF-20AB |
20KW |
50-250KHZ |
30A |
3phase 380V |
100% |
UF-30AB |
30KW |
50-200KHZ |
45A |
3phase 380V |
100% |
UF-40AB |
40KW |
50-200KHZ |
60A |
3phase 80V |
100% |
UF-60AB |
60KW |
30-150KHZ |
90A |
3phase 380V |
100% |
UF-100AB |
100KW |
30-150KHZ |
150A |
3phase 380V |
100% |
UF-160AB |
160KW |
30-120KHZ |
240A |
3phase 380V |
100% |
