Help CenterHigh Frequency Induction Heating Machine 6KW
Related Products
-
Ultrahigh Frequency Induction Heating Machine 4KWUS$ 4,000 - 5,000MOQ: 1 Unit -
Ultrahigh Frequency Induction Heating Machine 20kwUS$ 5,500 - 9,000MOQ: 1 Unit
-
High Frequency Induction Heating Machine 20KWUS$ 7,000 - 9,000MOQ: 1 Unit
-
Ultrahigh Frequency Induction Heating Machine 160KWUS$ 5,000 - 15,000MOQ: 1 Unit
-
Ultrahigh Frequency Induction Heating MachineUS$ 1,500 - 1,800MOQ: 1 Set
YONGKANG YUELON ELECTRONIC EQUIPMENT CO.,LTD
YUELON is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction heating equipment and systems. Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial heating process. that are used for application such as brazing, annealing, quenching, forging, melting, shrink fitting etc.
our induction heating machine are Available from 2KW to 1500KW deliverable output power with 0.5KHZ to 1.1MHZ operating frequency range. All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series): 0.2-20KHZ
High frequency series (abbr. HF series): 30-100KHZ
Superaudio frequency series (abbr. SF series): 8-40KHZ
Ultrahigh frequency series (abbr. UF series) : 100-1000KHZ
ultrahigh frequency induction heating machine:UF-06A/AB-III
Main specifications:
Maximum input power: 6.6KW
Oscillating frequency: 500-1100KHz
Maximum input current: 30A
Input voltage: 220VAC single phases, 50 or 60Hz
Duty cycle: 100%
Cooling water: ≥0.2Mpa 2-5L/min
Auto heating time: 0.1-99.9seconds
Auto retaining time: 0.1-99.9seconds
Auto cooling time: 0.1-99.9seconds
Weight and dimension:
Model |
Net weight(KG) |
Size: L x W x H (mm) |
Packing weight |
Pacing size: L x W x H (mm) |
UF-06A-III |
25KG |
580x260x500mm |
42KG |
680x360x600mm |
UF-06AB-III generator |
18KG |
520x240x500mm |
40KG |
620x480x600mm |
UF-06AB-III heating head |
4KG |
140x93x140mm |
Main characteristics:
1.With high frequency up to 1100KHZ the quenching thickness can be controlled lower than 1mm, and very thin and tiny parts can be easily heated.
2.IGBT and current inverting technologies have been used; higher reliability and lower maintenace cost.
3.100% duty cycle, continuous working is allowed at maximum power output.
4.Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
5.Display of heating power and heating current and oscillating frequency.
6.Simple to install , installation can be done by unprofessional person very easily;
7.Light weight, small size;
8.different shape and size of induction coil can be changed easily to heat different parts.
9.Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.
10.the separated small heating head is especially suitable for the applications in which the parts are stationary and the heating head is moved to fit the place.

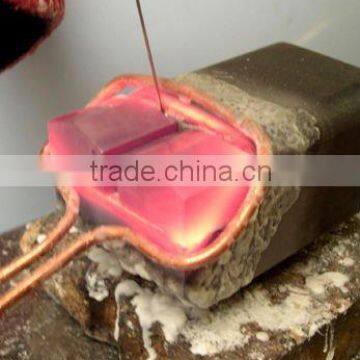

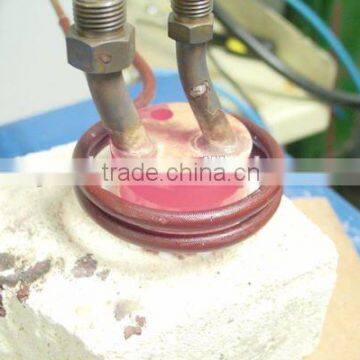

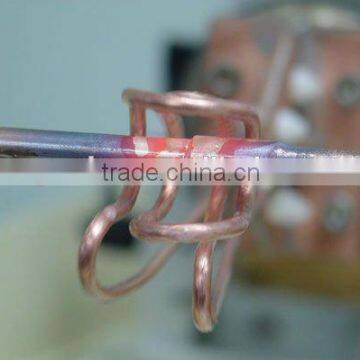

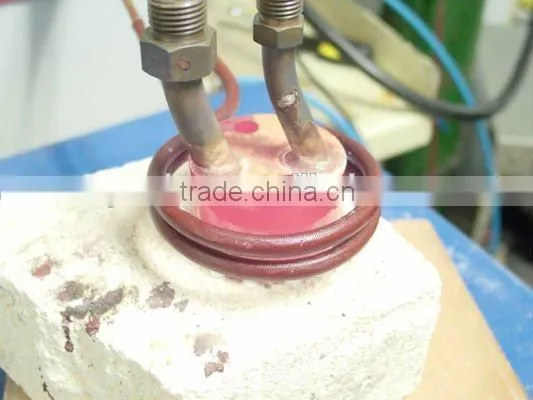

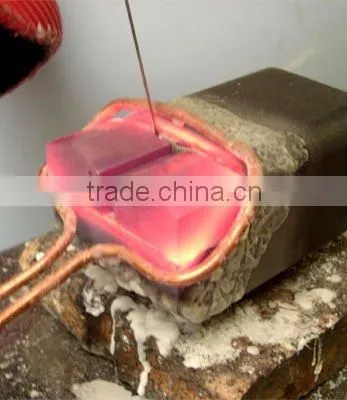

Main applications:

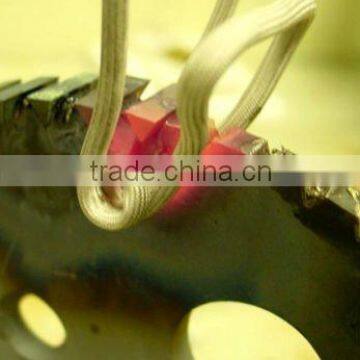

1.brazing of diamond tool blades and machining tools.
2.heat treatment of small parts
3.Quenching of the saw tip
4.Shaping of the small driller
etc.
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
...
