UF-03A/AB
Main specifications:
Maximum oscillating power: 3KW
Oscillating frequency: 500-1100KHz
Maximum input current: 14A
Input voltage: 220VAC single phases, 50 or 60Hz
Duty cycle: 80%
Cooling water: ≥0.2Mpa 2-5L/min
Auto heating time: 0.1-99seconds
Auto retaining time: 0.1-99seconds
Auto cooling time: 0.1-99seconds
Weight and dimension:
Model |
Net weight(KG) |
Size: L x W x H (mm) |
Packing weight |
Pacing size: L x W x H (mm) |
UF-03AB generator |
18KG |
450x240x300mm |
35KG |
550x480x400mm |
UF-03AB heating head |
4KG |
140x140x93mm |
Main characteristics:
- MOSFET power component and current inverting technologies have been used.
- the output oscillating frequency can reach 1100KHZ, this machine is particularly suited heat small pieces of metal rapidly, and control the depth properly.
- simple structure and light weight.
- simple to operate, a few minutes is enough to learn it.
- simple to install, installation can be donne by unprofesstional person very easily, connect the machine to single phase 220VAC and cooling water only.
- multi-display functions, with displays of over current, over voltage, water failure, phase failure and unfit lad and so on, machine can be protected from destroys and machines can be repaired easily.
- light weight, small size.
- different shape and size of induction coil can be changed easily to heat different parts.
- advantages of the model with timer: the power and the operating time of the heating period and retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.
- the separated models are designed to fit the dirty surroundings, the generator can be put in a clean space to increase the reliability; with the small size and light weight of the separated transformer, it is conveient to use in the production line and easily assembled inside the machinery or moved mechanism.
Main models and specifications:
Models |
Maximum input power |
Oscillating frequency |
Maximum input current |
Input voltage |
Duty cycle |
UF-04A |
4KW |
100-250KHZ |
15A |
Single phase 220V |
80% |
UF-03AB |
3KW |
0.5-1.1MHZ |
14A |
Single phase 220V |
80% |
UF-06A-I |
6.6KW |
200-500KHZ |
27A |
Single phase 220V |
80% |
UF-06A-II |
200-700KHZ |
||||
UF-06A-III |
0.5-1.1MHZ |
||||
UF-10A-I |
10KW |
50-300KHZ |
15A |
3phase 380V |
100% |
UF-10A-II |
10KW |
200-500KHZ |
15A |
Single phase 220V |
80% |
UF-20AB |
20KW |
50-250KHZ |
30A |
3phase 380V |
100% |
UF-30AB |
30KW |
50-200KHZ |
45A |
3phase 380V |
100% |
UF-40AB |
40KW |
50-200KHZ |
60A |
3phase 80V |
100% |
UF-60AB |
60KW |
30-150KHZ |
90A |
3phase 380V |
100% |
UF-100AB |
100KW |
30-150KHZ |
150A |
3phase 380V |
100% |
UF-160AB |
160KW |
30-120KHZ |
240A |
3phase 380V |
100% |
Main applications:

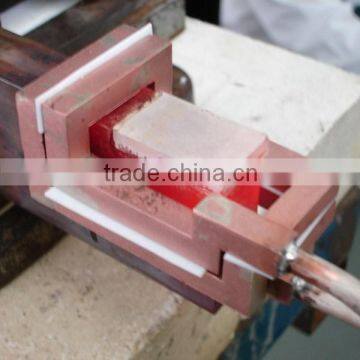

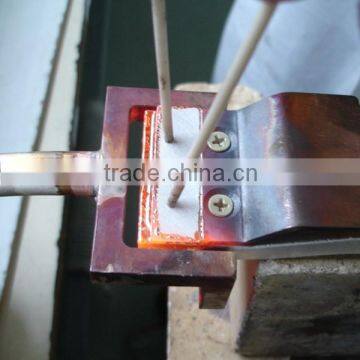

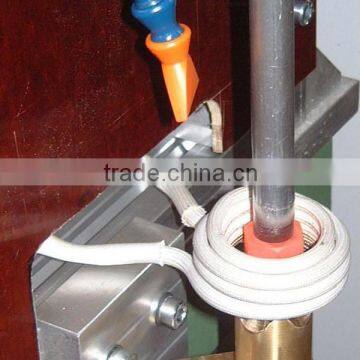

- brazing of the saw tips 2. heat treatment of small parts 3. heating of wire smaller than 1mm 4.brazing of copper tubes . etc.
...
