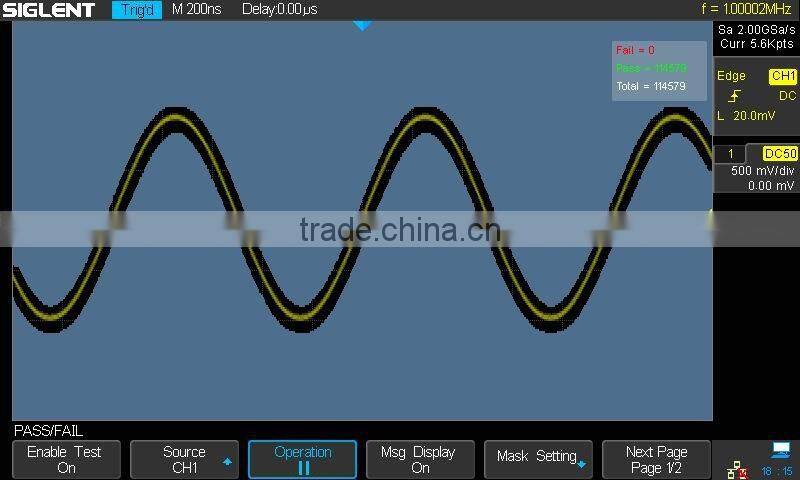

SDS2202X,oscilloscope digital display,200MHz portable oscilloscope,2 channels
- 8-inch TFT LCD(800*480) display
- Long Memory Depth up to 140Mpts
- Waveform capture rate up to 140,000 wfs/s
- Low background noise, supports 1mV/div to 10V/div voltage scales

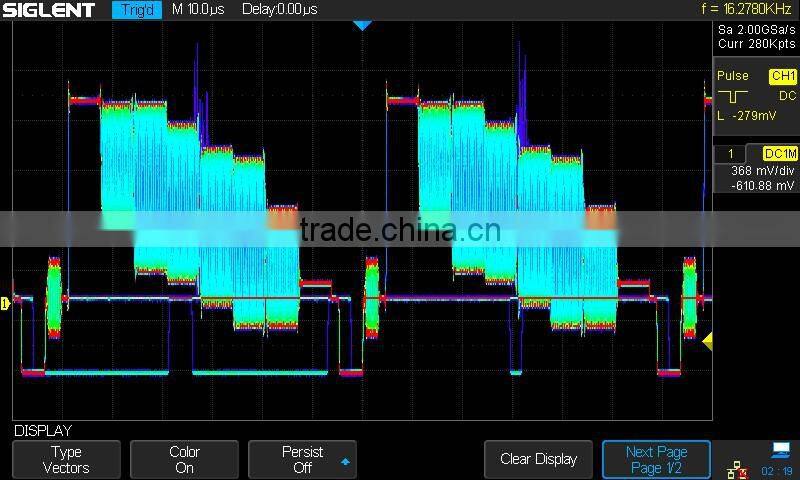

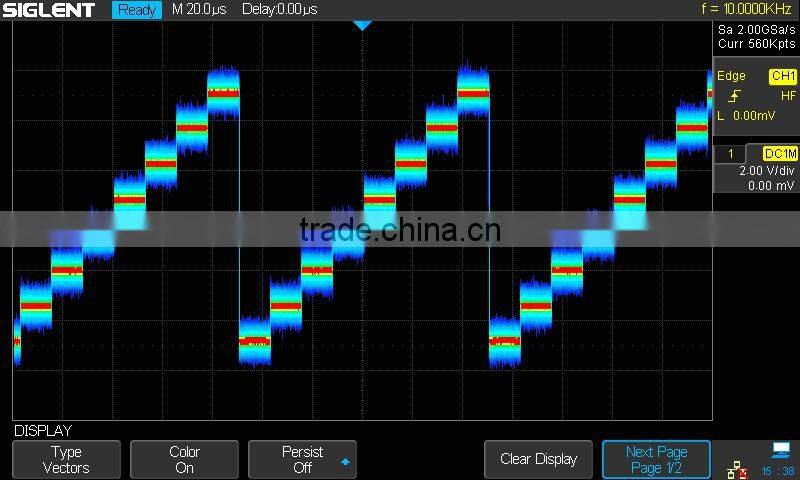

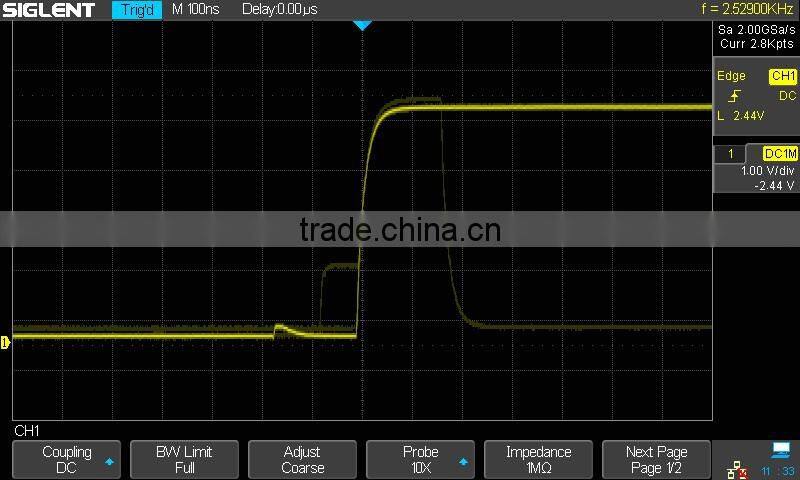

- Support 256 intensity grading and color temperature waveform display

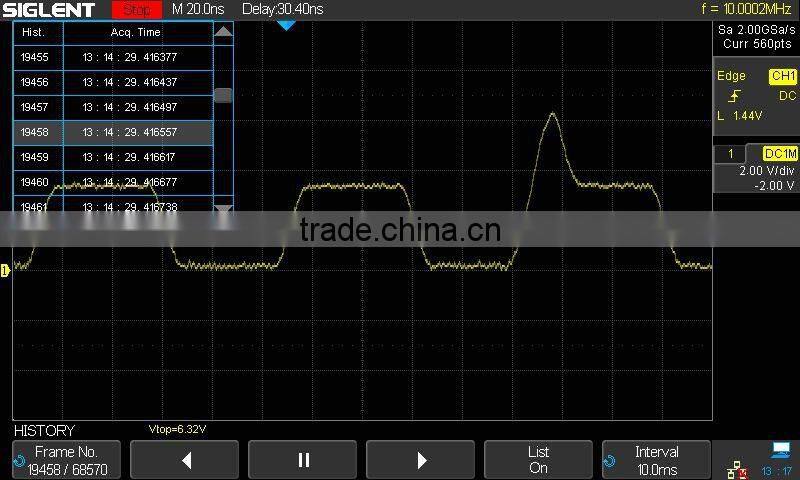

- History waveform record function,the Max.recorded waveform length is 80,000 frames

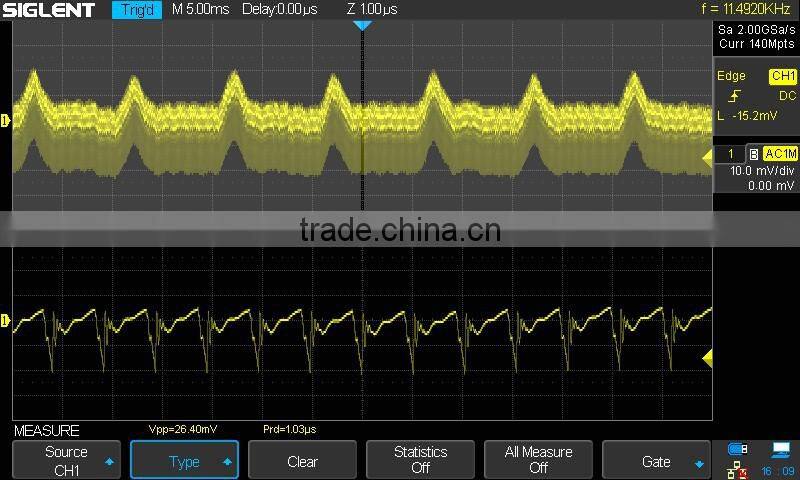

- 37 kinds of automatic waveform measurements,support statistics function
- Abundant interfaces: USB Host, USB Device (USBTMC),LAN (VXI-11), Pass/Fail, Trigger Out, GPIB (optional)
- Support SCPI remote control commands
| Model | SDS2072X | SDS2102X | SDS2202X | SDS2302X |
| Bandwidth | 70MHz | 100MHz | 200MHz | 300MHz |
| Rise time | <5.0ns | <3.5ns | <1.7ns | <1.2ns |
| Channels | 2CH+ EXT | |||
| Sampling Rate | 2GSa/s (single-channel), 1GSa/s (dual-channel) | |||
| Memory Depth (Max.) | 140 Mpts (Single-Channel), 70 Mpts (Dual-Channel) | |||
| Waveform Capture Rate(Max.) | 140,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode) | |||
| Coupling | DC, AC, GND | |||
| Impedance | DC: (1MΩ±2%) || (22pF ±3pF); AC: (1.2MΩ±2%) || (22pF ±3pF); 50Ω: 50Ω±2% | |||
| Max.Input voltage | 1MΩ ≤400Vpk (DC + Peak AC <=10kHz); 50Ω ≤5Vrms | |||
| Vertical Resolution | 8 bit | |||
| Vertical Range | 8 divisions | |||
| Vertical Scale | 1mV/div~10V/div (1-2-5 step) | |||
| Low Frequency Response (AC Coupling -3dB) | ≤10Hz (at input BNC) | |||
| Overshoot (500ps Rise Edge) | <10% | |||
| Channel Skew | <100ps | |||
| Time Scale | 1.0ns/div ~ 50s/div | |||
| Time base Accuracy | ±25ppm | |||
| Trigger Mode | Auto,Normal,Single | |||

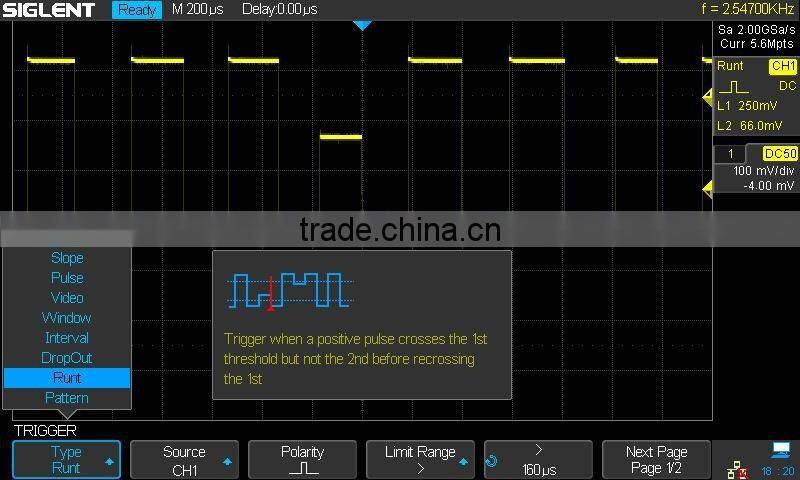

| Trigger Type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video | |||
| Serial Trigger | IIC, SPI, UART/RS232, CAN, LIN | |||
| Decoder Type (Optional) | IIC, SPI, UART/RS232, CAN, LIN | |||
| Trigger Level | Internal: ±4.5div from the center of the screen; EXT: ±0.6V; EXT/5: ±3V | |||

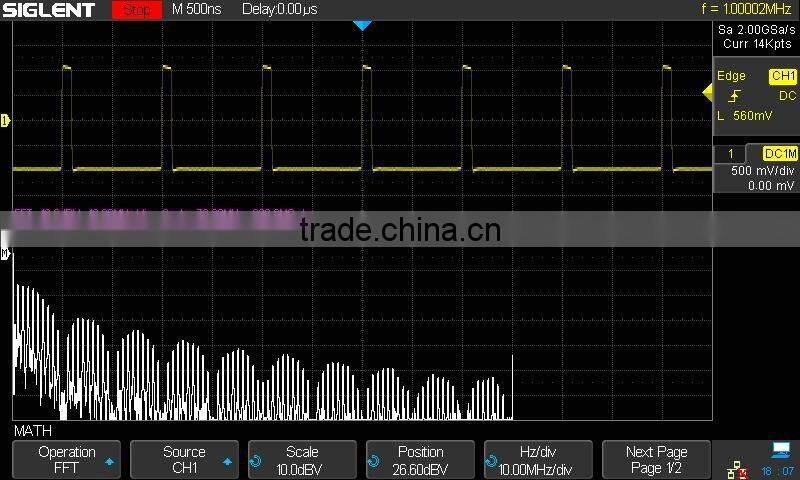

| Math Funtion | +,-,*,/,FFT,d/dt,∫dt,square root | |||
| FFT Window | Rectangular, Blackman, Hanning, Hamming | |||
| Auto Measurement (37 Types) |
Vpp, Vmax, Vmin, Vamp, Vtop, Vbase,Vmean, Mean,stdev,Vstd,Vrms, Crms,ROV, FOV,RPRE, FPRE, Level@X,Rise time, Fall time, Freq,Period, +Wid, -Wid, +Dut, -Dut, BWid, Delay,Time@Level,Phase, FRR,FRF, FFR, FFF, LRR, LRF, LFR, LFF | |||
| Statistics | Current, Mean, Min, Max, Std-Dev, Count | |||
| Built-in Function/Arbitrary Waveform Generator (Optional) | ||||
| Channels | 1 | |||
| Max.Frequency | 25MHz | |||
| Sample Rate | 125MSa/s | |||
| Frequency Resolution | 1μHz | |||
| Vertical Resolution | 14 bits | |||
| Sine Wave | 1μHz~25MHz | |||
| Square/Pulse Wave | 1μHz~10MHz | |||
| Ramp Wave | 1μHz~300kHz | |||
| Arb Wave | 1μHz~5MHz | |||
| DC Offset | ±1.5V (into 50Ω); ±3 V (into HiZ) | |||
| Noise Bandwidth | >25MHz (-3dB) | |||
| Built-in Logic Analyzer (Optional) | ||||
| No. of Channels | 16 | |||
| Max. Sampling Rate | 500MSa/s | |||
| Memory Depth | 14Mpts/CH | |||
| Min. Detectable Pulse Width | 4ns | |||
| General Specification | ||||
| Standard Interface | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, GPIB (Optional) | |||
| Display | 8.0 inch color TFT-LCD,800(Horizontal)*480(Vertical) pixel | |||
| Language | Chinese, English | |||
| Dimensions | Length 352mm(L)*128mm(W)*224mm(H) | |||
| Weight | N.W 3.4 kg; G.W 4.9 kg | |||
Model SDS2072X SDS2102X SDS2202X SDS2302X
Bandwidth 70MHz 100MHz 200MHz 300MHz
Rise time <5.0ns <3.5ns <1.7ns <1.2ns
Channels 2CH+ EXT
Sampling Rate 2GSa/s (single-channel), 1GSa/s (dual-channel)
Memory Depth (Max.) 140 Mpts (Single-Channel), 70 Mpts (Dual-Channel)
Waveform Capture Rate(Max.) 140,000 wfm/s (normal mode), 500,000 wfm/s (sequence mode)
Coupling DC, AC, GND
Impedance DC: (1MΩ±2%) || (22pF ±3pF); AC: (1.2MΩ±2%) || (22pF ±3pF); 50Ω: 50Ω±2%
Max.Input voltage 1MΩ ≤400Vpk (DC + Peak AC <=10kHz); 50Ω ≤5Vrms
Vertical Resolution 8 bit
Vertical Range 8 divisions
Vertical Scale 1mV/div~10V/div (1-2-5 step)
Low Frequency Response (AC Coupling -3dB) ≤10Hz (at input BNC)
Overshoot (500ps Rise Edge) <10%
Channel Skew <100ps
Time Scale 1.0ns/div ~ 50s/div
Time base Accuracy ±25ppm
Trigger Mode Auto,Normal,Single
Trigger Type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video
Serial Trigger IIC, SPI, UART/RS232, CAN, LIN
Decoder Type (Optional) IIC, SPI, UART/RS232, CAN, LIN
Trigger Level Internal: ±4.5div from the center of the screen; EXT: ±0.6V; EXT/5: ±3V
Math Funtion +,-,*,/,FFT,d/dt,∫dt,square root
FFT Window Rectangular, Blackman, Hanning, Hamming
"Auto Measurement
(37 Types)" Vpp, Vmax, Vmin, Vamp, Vtop, Vbase,Vmean, Mean,stdev,Vstd,Vrms, Crms,ROV, FOV,RPRE, FPRE, Level@X,Rise time, Fall time, Freq,Period, +Wid, -Wid, +Dut, -Dut, BWid, Delay,Time@Level,Phase, FRR,FRF, FFR, FFF, LRR, LRF, LFR, LFF
Statistics Current, Mean, Min, Max, Std-Dev, Count
256-level intensity grading display on waveform Abundant Trigger Functions
Advanced Math Function Color Temperature Display
Comprehensive Statistical Functions Pass/Fail Function
Record Length of up to 140Mpts Record up to 80,000 frames history mode

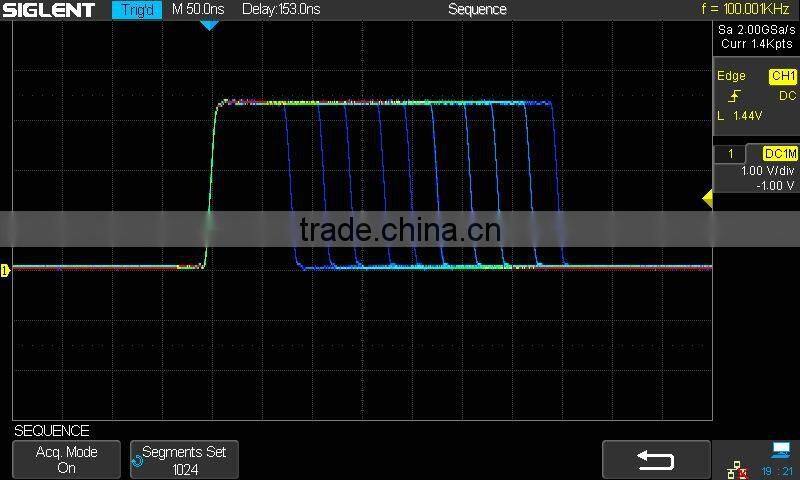

Sequence Mode Waveform Capture Rate up to 500,000wfm/s
