  SDS1202X,60000 wfms/s Waveform Capture Rate 200MHz Digital Oscilloscope

Product Overview

The SDS1000X series employs a new generation of SPO technology.With excellent signal fidelity, background noise is lower than similar products in the industry. The SDS1000X has a minimum vertical input range of 500uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 60,000 frames/sec. It also employs not only the common 256-level intensity grading display function but also a color temperature display mode not found in other models in this class.

The SDS1000X series offering supports multiple powerful triggering modes including serial bus triggering and decoding. History waveform recording and sequential triggering allow for extended waveform records to be captured, stored, and analyzed. Add an impressive array of measurement and math capabilities, options for an

integrated 25 MHz arbitrary waveform generator, as well as serial decoding, and the features and high-performance of the SDS1000X oscilloscopes cannot be matched at anywhere at this price.

Function & Benefits
  • 200MHz, 100MHz bandwidth models
  • Real-time sampling rate up to 1GSa/s
  • Record length of 14Mpts
  • Waveform capture rate is 60,000 wfms/s
  • Supports 256-level intensity grading and color temperature display
  • Intelligent trigger: Edge, Pulse, Window, Runt, Interval, Time out (Dropout), Pattern
  • Serial bus triggering and decode, supports protocols IIC, SPI, UART, RS232, CAN, LIN
  • Video triggers and supports HDTV
  • Low background noise, supports 500μV / div to 10V / div voltage scales
  • 10 types of one-button shortcuts, supports Auto Setup, Default Setup, Cursor, Measure, Roll, History, Persist, Clear Sweep, Zoom and Print
  • Segmented acquisition (Sequence) mode, the maximum record length can be divided into 1000 segments, according to trigger conditions set by the user, with a very small dead time segments to capture qualifying event
  • History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
  • 36 automatic measurement function , supports statistics calculations, Gating measurement, Math measurement , History measuring, Ref measurement
  • Waveform math function (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root)
  • High Speed hardware based Pass/ Fail function
  • 25MHz DDS arbitrary waveform generator, built-in 10 kinds of waveforms (SDS1000X-S models)
  • Large 8 inch TFT-LCD display with 800 * 480 resolution, Abundant interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail, Trigger Out
  • Supports SCPI remote control commands
  • Supports multi-language display and embedded online help
Specifications



Model SDS1102X SDS1102X-S SDS1202X SDS1202X-S
Bandwidth 100MHz 100MHz 200MHz 200MHz
Rise time <3.5ns <3.5ns <1.8ns <1.8ns
Sample Rate(Max) 1GSa/s (Single-Channel), 500MSa/s(Dual-Channel)
Channels 2+EXT
Input Coupling DC, AC, GND
Input Impedance DC: (1MΩ±2%) || (18pF ±2pF); AC: (1.2MΩ±2%) || (18pF ±2pF); 50Ω: 50Ω±2%
Max Input voltage 1MΩ ≤400Vpk(DC + Peak AC <=10kHz), 50Ω ≤5Vrms
CH to CH Isolation DC~Max BW >40dB
Probe attenuator 0.1X, 0.2X, 0.5X, 1X, 2X, 5X, 10X, 20X, 50X, 100X, 200X, 500X , 1000X
Memory Depth(Max) 7Mpts/CH (Dual-Channel); 14Mpts/CH (Single-Channel)
Vertical Resolution 8 bit
Vertical Scale (Probe 1X) 500μV/div~10V/div (1-2-5 )
Offset Range (Probe 1X) 500μV ~ 150mV: ± 1V; 152mV ~ 1.5V: ± 10V; 1.52V ~ 10V: ± 100V
Low Frequency Response
(AC-3dB)		 ≤10Hz (at input BNC)
DC Gain Accuracy ≤±3.0%: 5mV/div ~10V/div; ≤±4.0%: ≤2mV/div
Time base Scale 2.0ns/div ~ 50s/div
Time base Accuracy ±25ppm
Waveform Capture Rate 60,000 wfms/s
Channel Skew <100ps
Display Format Y-T, X-Y, Roll
Trigger Mode Auto, Normal, Single
Trigger Type Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video
Trigger Coupling AC , DC, LFRJ, HFRJ , Noise RJ (CH1~CH2)
Trigger Accuracy(Typical) Internal: ±0.2div; EXT: ±0.4div
Serial Trigger(Optional) I2C, SPI, UART/RS232, CAN, LIN
Decode Type(Optional) I2C, SPI, UART/RS232, CAN, LIN
Math Function + , - , * , / , FFT , d/dt , ∫dt , √
Built-in Function Generator ( SDS1000X-S )
DDS Waveform Generator No  Yes No  Yes
Channel 1
Max.Output Frequency 25MHz
Sample Rate  125 MSa/s
Frequency Resolution  1μHz
Frequency Accuracy  ±50 ppm
Vertical Resolution  14 bits
Amplitude Range -1.5 ~ +1.5V ( 50Ω); -3 ~ +3V (High-Z)
Waveform Type Sine, Square, Ramp, Pulse, DC, Noise, Cardiac, Gaus Pulse, Exp Rise, Exp Fall, Arb
Output Impedance 50Ω±2%
Protection Short-Circuit Protection
General Specification
I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 1KHz Cal,GPIB(optional)
Probe(Std) 2 pcs passive probe PP510 2 pcs passive probe PP215
Display 8 inch TFT LCD (800x480)
Dimensions 340mm(L)*123mm(W)*184mm(H)
Weight Net weight 3.26 Kg, Gross weight 4.25Kg



Special Function

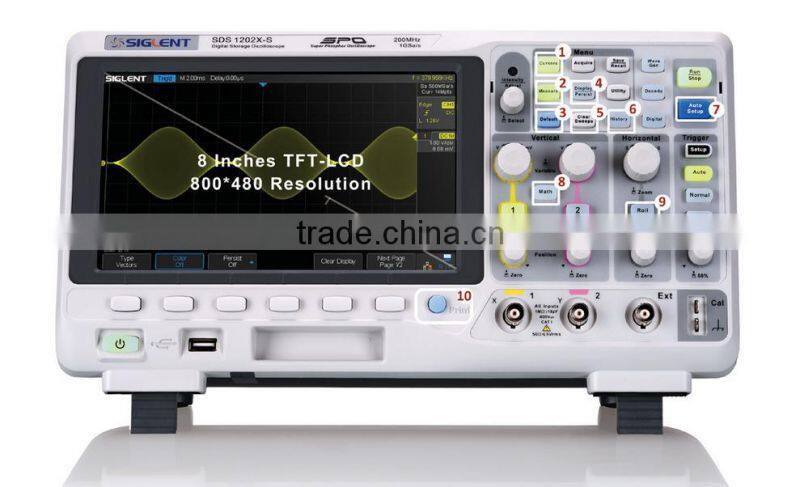

  8 inch TFT-LCD display and 10 one-button menus

SDS1202X,60000 wfms/s Waveform Capture Rate 200MHz Digital Oscilloscope

SDS1000X Most commonly used functions are accessible using 10 different one-button operation keys: Auto Setup, Default Setup, Cursor, Measure, Roll, History, Persist, Clear Sweep, Zoom, Print

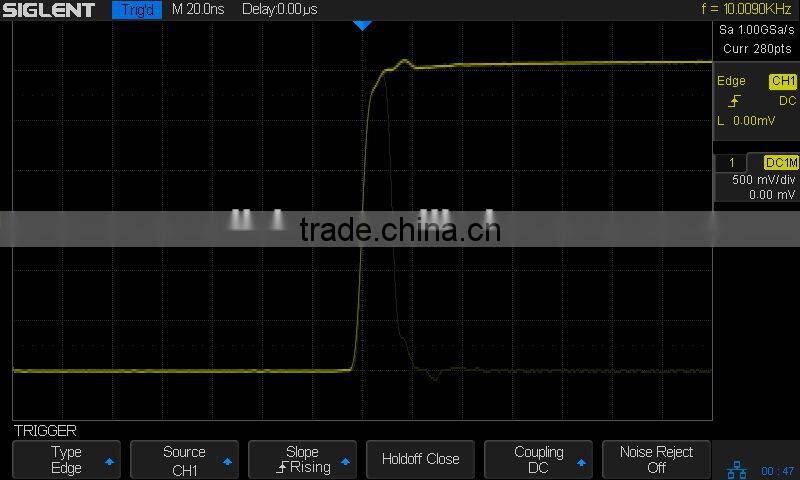

Waveform capture rate 60,000 wfms/s
SDS1202X,60000 wfms/s Waveform Capture Rate 200MHz Digital Oscilloscope

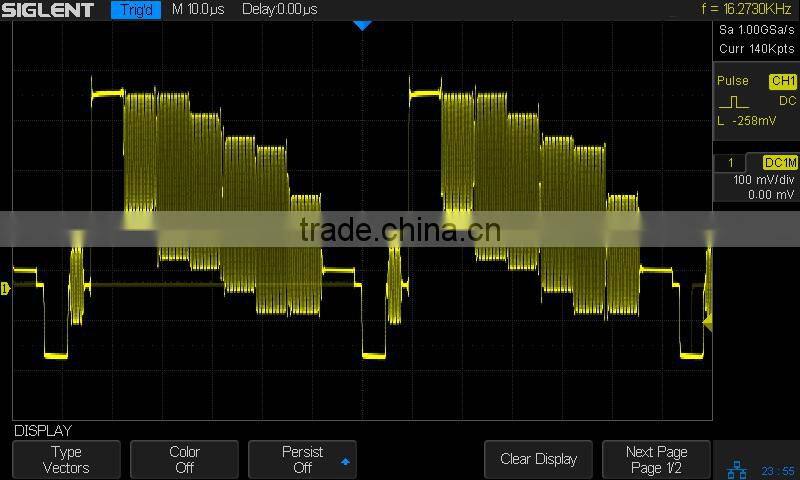

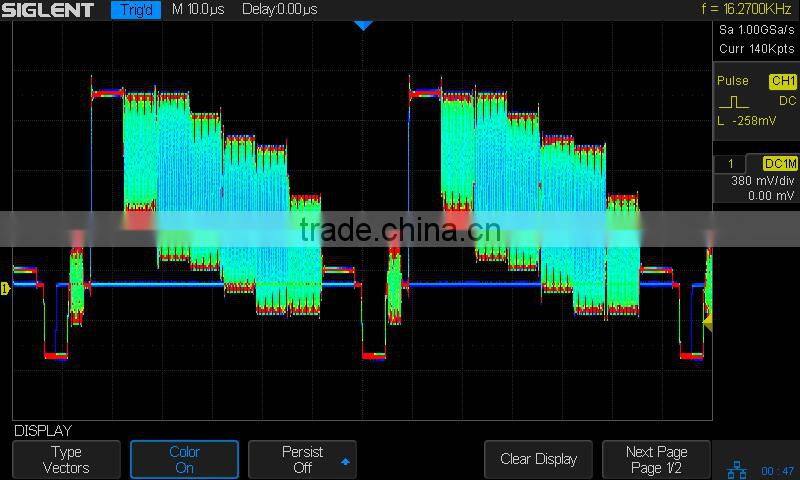

256-level intensity grading and color temperature display
SDS1202X,60000 wfms/s Waveform Capture Rate 200MHz Digital Oscilloscope   SDS1202X,60000 wfms/s Waveform Capture Rate 200MHz Digital Oscilloscope

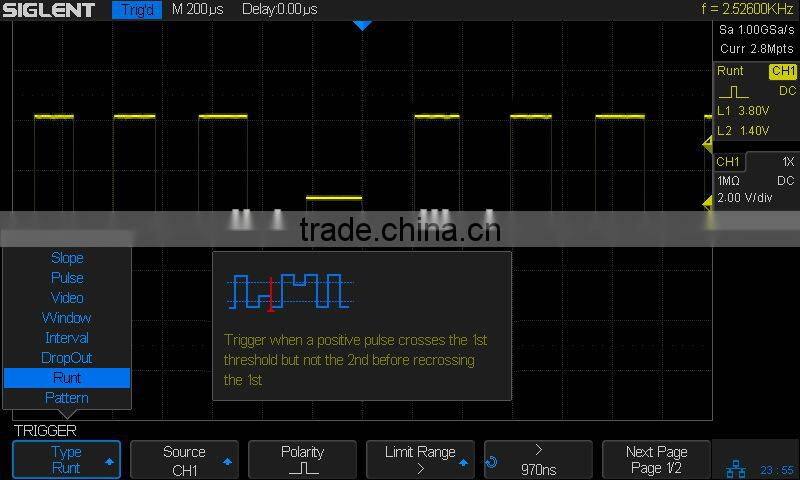

Multiple trigger functions

SDS1202X,60000 wfms/s Waveform Capture Rate 200MHz Digital Oscilloscope

SDS1000X has a wealth of trigger modes, including edge, slopes, pulse, video, Windows, less amplitude, interval, timeout, pattern, IIC, SPI, UART/RS232, LIN, CAN

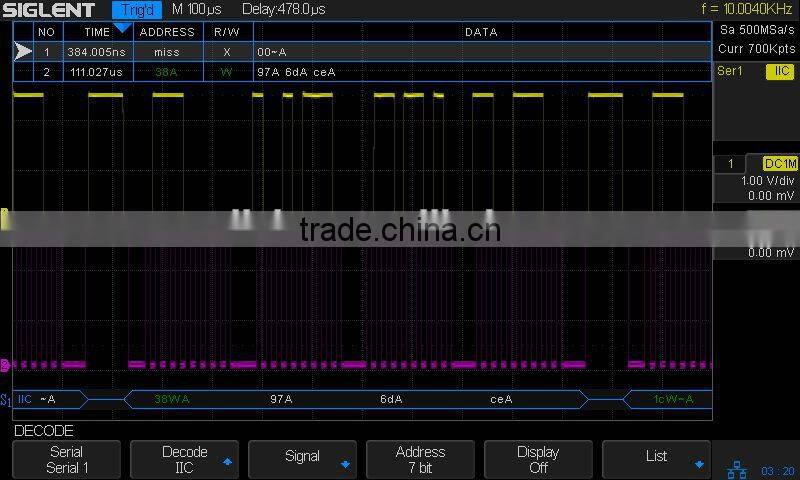

Serial bus decoding function (optional)
SDS1202X,60000 wfms/s Waveform Capture Rate 200MHz Digital Oscilloscope

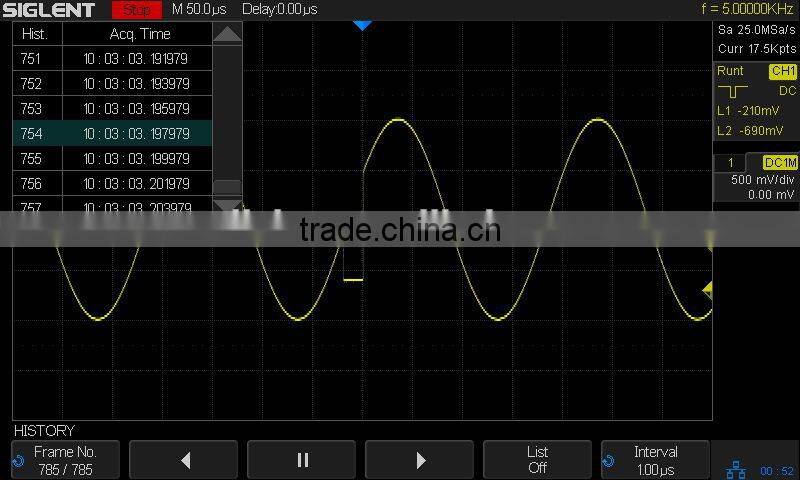

History Waveforms (History) mode and segmented acquisition (Sequence)
SDS1202X,60000 wfms/s Waveform Capture Rate 200MHz Digital Oscilloscope

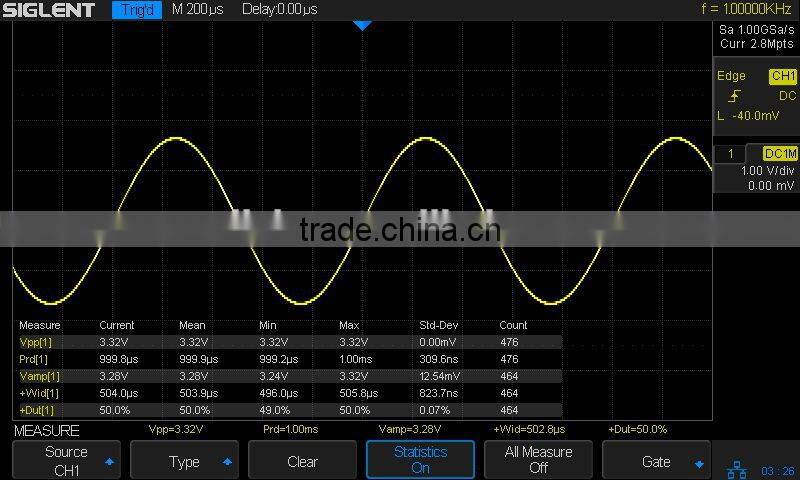

Comprehensive statistical functions
SDS1202X,60000 wfms/s Waveform Capture Rate 200MHz Digital Oscilloscope

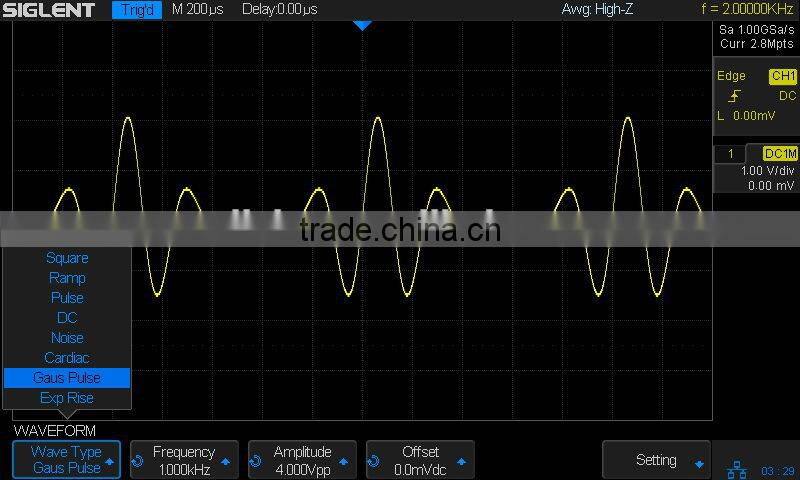

Built-in 25MHz function/arbitrary waveform generator (SDS1000X-S model)
SDS1202X,60000 wfms/s Waveform Capture Rate 200MHz Digital Oscilloscope

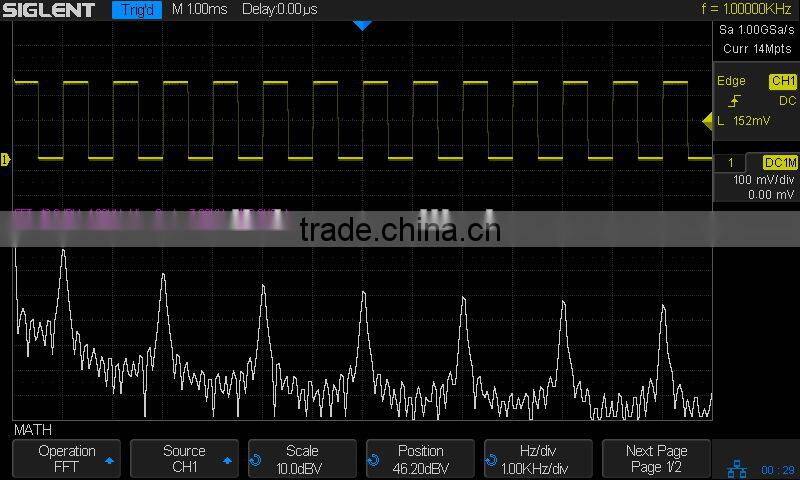

Advanced Math Functions
SDS1202X,60000 wfms/s Waveform Capture Rate 200MHz Digital Oscilloscope

In addition to the traditional (+, -, *, /) operation, SDS1000X oscilloscopes supports FFT, integration, differentiation, and square root operations

Ordering Information



Product Description
100MHz Two Channels  SDS1102X
200MHz Two Channels  SDS1202X
100MHz Two Channels Built-In Waveform Generator  SDS1102X-S
200MHz Two Channels Built-In Waveform Generator  SDS1202X-S
Standard Accessories
USB Cable -1
Quick Start-1
Passive Probe-2
Power Cord -1
CD (Included User Manual and EasyScopeX software-1)
Optional Accessories
I2C,SPI,UART/RS232,CAN,LIN Decode key  SDS-1000X-DC
Power analyze Software  SDS-1000X -PA
USB-GPIB Adapter  USB-GPIB
16 Channels MSO  SDS-1000X-LA
Isolated Front End  ISFE
High Voltage Probe  HPB4015
Current Probe  CP4060/CP4020/CP5050/CP5300
Differential Probe  DPB4050/DPB3050
