Hantek6204BC,200MHz Hantek Usb Oscilloscope

Hantek6204BC,200MHz Hantek Usb Oscilloscope thumbnail-1
Hantek6204BC,200MHz Hantek Usb Oscilloscope photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Hantek
Model Number:
Hantek6204BC
Contact Supplier Request Quote Chat Now
Xiamen Wellzion Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Hantek
Model Number Hantek6204BC

Hantek6204BC,200MHz hantek usb oscilloscope



Function & Benefits
  • 200MHz bandwidth
  • 1GSa/s real-time sampling rate
  • 4 independent analog channels
  • 64kpts record length
  • Waveform data file:EXCEL,BMP,JPG
  • USBXI standard interface
  • Software support:Windows10,Windows 8,Windows 7
  • Provide LabviewVBVCQT developing examples
Specifications



Model Hantek6074BC Hantek6104BC Hantek6204BC Hantek6254BC
Bandwidth 70MHz 100MHz 200MHz 250MHz
Channel 4 CH
Real-time Sampling Rate 1GSa/s
Memory Depth 64K
Time Base Precision ±50ppm
Time Base Range 2ns/div-1000s/div (1-2-4 sequences)
Input Impedance 1MΩ 25pF
Input Sensitivity 2mV/div~10V/div
Vertical Resolution 8Bit
Vertical Displacement Range 2mV~10V/div@x1 probe; 20mV~100V/div@x10 probe;
200mV~1000V/div@x100 probe;2V~10000V/div@x1000 probe
DC Gain Accuracy ±3%
Bandwidth 20MHz
Trigger Mode Edge, Pulse, Video, Alternative
Trigger Source CH1, CH2, CH3,CH4
Waveform Signal Process +,-,x,÷,FFT, Invert
Cursors Measurement Cross, Trace, Horizontal, Vertical
Auto Measurement Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms,
Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Volume 175mm * 105mm * 25mm
Weight 0.9kg
Accessory 2 passive probes, 2 gator clip lines

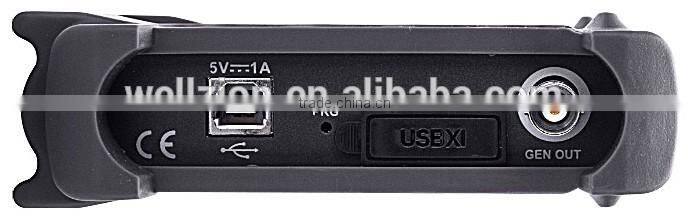

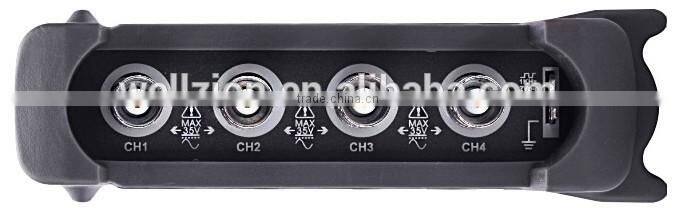

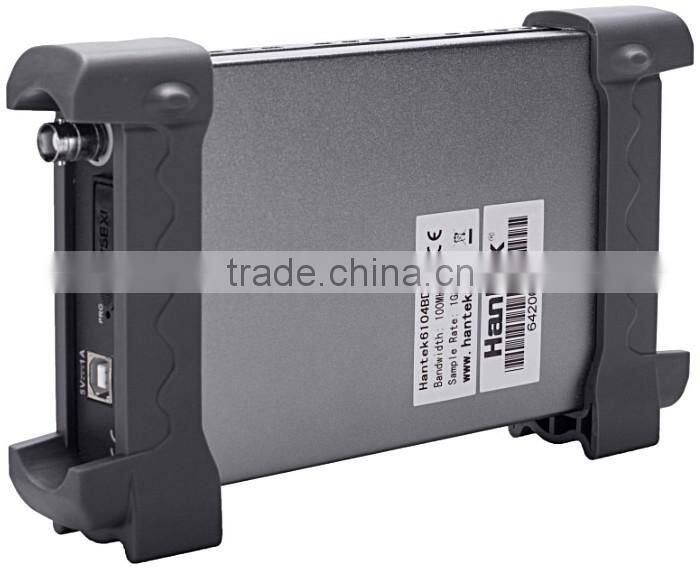

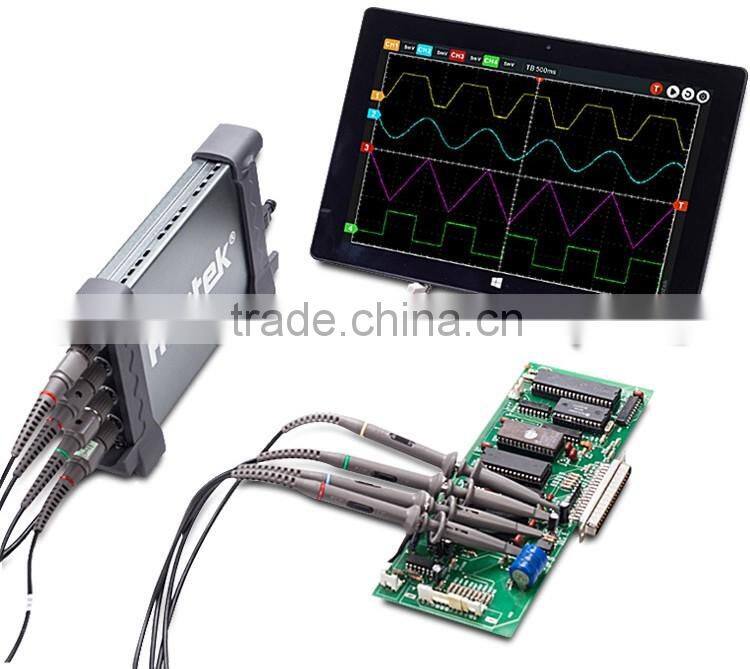

Hantek6204BC,200MHz hantek usb oscilloscopeHantek6204BC,200MHz hantek usb oscilloscopeHantek6204BC,200MHz hantek usb oscilloscopeHantek6204BC,200MHz hantek usb oscilloscope
