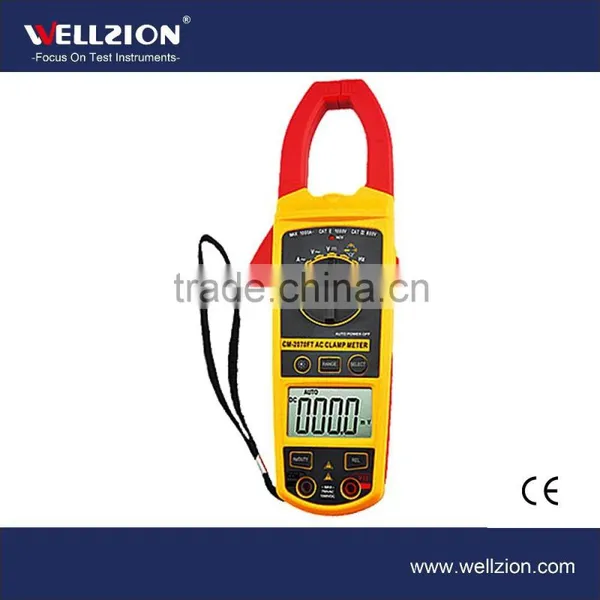

CM-2070FT, AC Clamp Meter,3 3/4 Digits,1000A

Negotiable MOQ: 30 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Model Number:

CM-2070FT

Display Type:

Digital Only

Xiamen Wellzion Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Model Number CM-2070FT

Display Type Digital Only

Specifications

CM-2070FT, AC Clamp Meter,3 3/4 digits,1000A
Clamp opens 52mm
Non-contact voltage detect (NCV) with visual and sound alarm

Function & Benefits

Basic Function	Range	Basic Accuracy
DCV	400mV/4V/40V/400V/1000V	±(0.5%+5)
ACV	400mV/4V/40V/400V/750V	±(1.0%+5)
ACA	400A/1000A	±(2.0%+5)
Resistance	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ	±(0.8%+3)
Capacitance	40nF/400nF/4uF/40uF/100uF	±(3.5%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(0.5%+5)
Temperature	(-40~ 1000) °C	±(1.0%+5)
Special Function
Diode test	√
Continuity test	Less than 30Ω±10Ω
Low battery indicator	Approx. less than 2.4 V
Data hold	√
Auto power off	About 15 minutes
Function protection	√
Clamp light	√
Backlight display	√
Input impedance	10MΩ
Sampling rate	3 times/s
AC frequency response	Current 50-60Hz/ voltage 50-400Hz
Operation method	Auto or manual range
Max display	4000
Clamp opens	52mm
Battery	3V (2*AAA battery)
General Characteristic
Meter color	Body-Yellow, Clamp head-Red.
Meter weight	About 280g (including battery)
Meter size	270×123×50mm
Standard accessory	Test leads, battery, manual, TP01 temperature probe
Standard packing	Gift box
Carton size	55.830.540CM
Standard QTY per carton	30 pcs
G.W per carton	26 kg
