Home > Instruments & Meters > Electronic Instrument > Clamp Meter > DM204,Handheld Clamp Multimeter,3 3/4 Digital

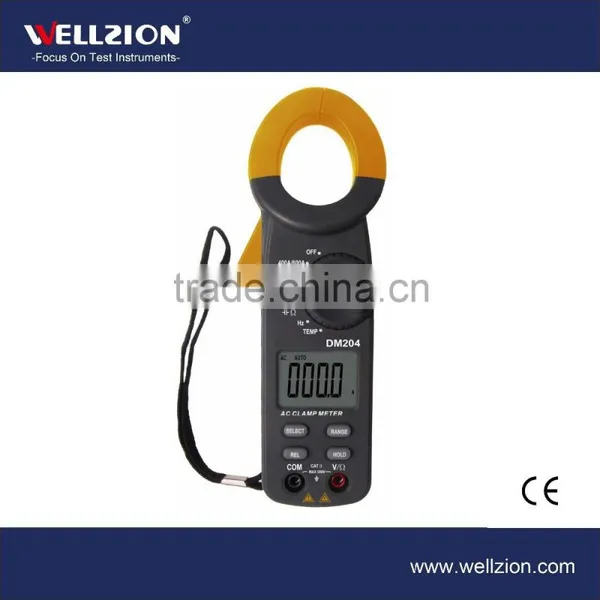

DM204,Handheld Clamp Multimeter,3 3/4 Digital

Negotiable MOQ: 30 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Model Number:

DM204

Display Type:

Digital Only

Xiamen Wellzion Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Model Number DM204

Display Type Digital Only

Measuring Current Range 4A~600A

Measuring Voltage Range 400mV~600V

Measuring Resistance Range 400Ω~40MΩ

Measuring Capacitance Range 4nF~200uF

Operating Temperature -40°C~750°C

Dimensions 45.3cm*42.5cm*33cm

Specifications

DM204,unit symbol display, diode and continuity test function,Low battery indication, Auto power off ,data hold,Relative value

Features and Benefits

Basic Function	Range	Basic Accuracy
DCV	200mV/2V/20V/200V/600V	±(1.0%+3)
ACV	200mV/2V/20V/200V/600V	±(1.5%+5)
ACA	2A/20A/200A/600A	±(2.0%+5)
Resistance	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	±(1.0%+3)
Capactiance	40nF/400nF/4uF/40uF/200uF	±(3.0%+5)
Temperature	(-40~ 1000) °C	±(0.8%+4)
Frequency	100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(0.5%+3)
Special Function	DM204
Diode test	√
Continuity alarming	Less than 50Ω±10Ω
Low battery indication	Approx less than2.4 V
Data hold	Data hold/Max. hold
Auto power off	About 15minutes
Function protect	Full function protection
Input	10MΩ
Sampling rate	3times /s
AC frequency response	Amperemter50Hz/Voltage(50-400)Hz
Operation way	Manual or auto range
Max. display	4000
Clamp open	35mm
Battery	3V (2*1.5v)
General Characteristic
Color	Body :dark, holster :orange
Weight	About 200g(include 2*1.5v battery.)
Standard accessory	Test leads, battery, specification certificate;TPO1 temperature probe
Packing	Gift box
Carton size	43.5×42.5×33cm
Standard packing per carton	40PCS
Standard G.W. per carton	About18kg
