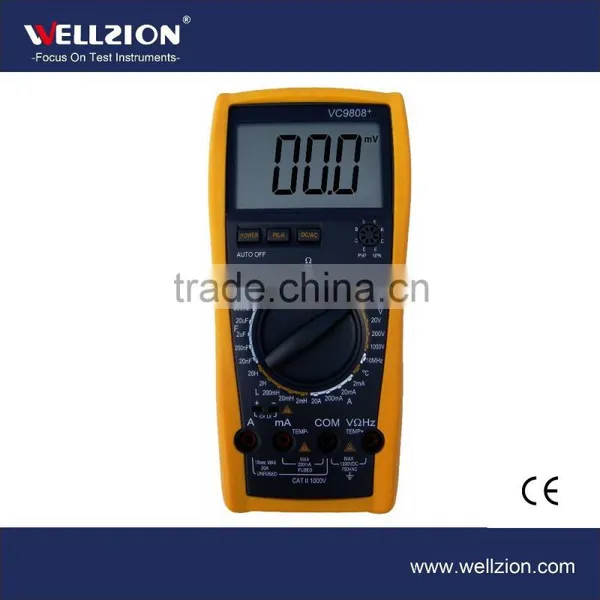

VC9808+,handheld multimeter including inductance test
- 10000 Piece / Pieces per Month
- xiamen shenzhen
- Credit Card
- Acrel AMC16Z-FAK48 Electric Module Multi Channel Current Detection Module For Data Center Precision Cabinet
- Acrel AMC16Z-FAK48 Electric Muti channel Monitoring Module Data Center Precision Cabinet
- Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
- 48 Circuit Monitoring Data Center Monitor Power Supply Management Server Multi Loop Energy Meter AMC16Z-FAK48
- Acrel AMC16Z-FAK48 Electric Muti Channel Monitoring Module Data Center Precision Cabinet
- Din Rail Ac Power Meter AMC16Z-FAK48 Multi-circuit Energy Meter One RS485 Communication 48 Branch Full Electric Parameter
Product Details
Place of Origin: | Fujian, China | Model Number: | VC9808+ | Measuring Current Range: | 2mA/20mA/200mA/20A |
Measuring Voltage Range: | 200mV/2V/20V/200V/1000V | Measuring Resistance Range: | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ2000MΩ | Measuring Capacitance Range: | 20nF/200nF/2uF/20uF/2000uF |
Measuring Inductance Range: | 2mH/20mH/200mH/2H/20H | Operating Temperature: | -40°C~1000°C | Dimensions: | 185mm*93mm*35mm |
Product Description
- Large LCD makes the reading clearly
- Strong antimagnetic and anti-jamming performance
- Auto power off within 30 minutes
- Full function protection,anti high voltage circuit design
- Unit symbol display, very easy to reading
- Self discharge when capacitance measuring
- asuring range of capacitance:2000uF
- asuring range of frequency: 10MHz
- Peak value hold and frequency automatic ranging
Specifications | Range | Accuracy |
DCV | 200mV/2V/20V/200V/1000V | ±(0.5%+3) |
ACV | 200mV/2V/20V/200V/750V | ±(0.8%+5) |
DCA | 2mA/20mA/200mA/20A | ±(0.8%+3) |
ACA | 2mA/20mA/200mA/20A | ±(1.0%+5) |
Resistace | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/2000MΩ | ±(0.8%+3) |
Inductance | 2mH/20mH/200mH/2H/20H | ±(2.5%+20) |
Capacitance | 20nF/200nF/2uF/20uF/2000uF | ±(2.5%+20) |
Frequency | 2kHz/20kHz/200kHz/2000kHz/10MHz | ±(0.5%+4) |
Centigrade temperature | -40°C~1000°C | ±(0.8%+4) |
Diode test | √ | |
hFE test | √ | |
Continuity alarming | Approx. less than 30Ω±10Ω | |
Low battery indication | Approx less than 7.5V | |
Data hold | Peak value hold | |
Auto power off | Approx. 30minutes | |
Function protect | √ | |
Anti-shock protect | √ | |
Input impendence | 10MΩ | |
Sampling rate | 3times/s | |
AC frequency response | 40-400Hz | |
Operation way | Manual range(frequency :auto range) | |
Max. display | 1999 | |
LCD size | 65×41mm | |
Power | 9V (6F22) | |
Power dissipation | Quiescent current approx. 6mA | |
Meter dimension | 185×93×35mm | |
Weight | 290g(including battery) | |
Standard packing per carton | 30pcs |
