Help CenterSDM3055, Digital Multimeter
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Siglent
Model Number:
SDM3055
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SDM3055, Bench Multimeter,5 1/2 DigitsNegotiableMOQ: 1 Piece -
SDM3055, Bench Digital Multimeter,5 1/2 DigitsNegotiableMOQ: 1 Piece
-
VC9804A+,digital Multimeter Manual Operation, 3 1/2 DigitsNegotiableMOQ: 30 Pieces
-
VC9804A+,pocket Multimeter, 3 1/2 DigitsNegotiableMOQ: 30 Pieces
-
VC9804A+,low Price Digital Multimeter, 3 1/2 DigitsNegotiableMOQ: 30 Pieces
Place of Origin
Fujian, China
Brand Name
Siglent
Model Number
SDM3055
Measuring Current Range
200μA,2mA,20mA,200mA,2A,10A
Measuring Voltage Range
200mV,2V,20V,200V,1000V
Measuring Resistance Range
200Ω,2kΩ,20kΩ,200kΩ,2MΩ,10MΩ,100MΩ
Measuring Capacitance Range
2nF,20nF,200nF,2μF,20μF,200μF,10000μF
Product Overview

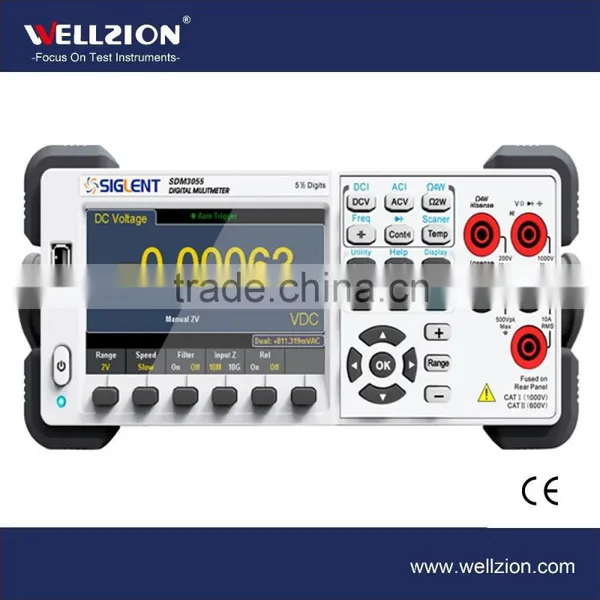

The new Siglent SDS3055/3055A is a new 5 ½ digit dual-display digital multimeter and features many math and statistical functions It includes a variety of communication interfaces with easy setup, is equipped with a 4.3-inch TFT-LCD screen, and is designed for users who needs include high performance, multiple functions, and automatic measurements, is a high performance desktop multimeter.
Function & Benefits
- 4.3 inch TFT-LCD display(480*272), 5? digits True-RMS
- Max to 150rdgs/s measurement speed
- 1Gb Nand Flash Storage,extensible U disk external memory
- Built-in thermocouple cold junction compensation

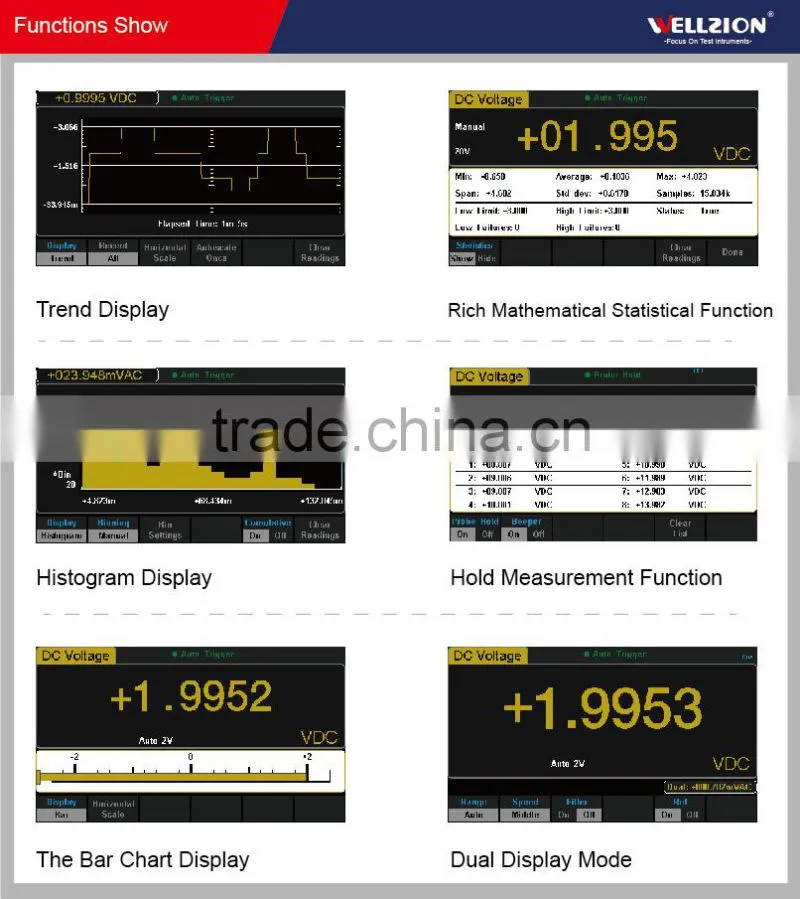

- Rich math operation function support measure MIN.,MAX.,average,standard deviation,Also readings can be displayed in dBm, dB, Pass / Fail, relative value, histograms,trend curves,bar graphs, etc
- Support remote control, compatible with mainstream multimetercommand set,equipped with EASYSDM software
- Interfaces include USB Device, USB Host, LAN and GPIB (only for SDM3055A)
Specifications
| Model | SDM3055 | SDM3055A |
| DCV | 200mV,2V,20V,200V,1000V | |
| ACV | True-RMS,200mV,2V,20V,200V,750V | |
| DCA | 200μA,2mA,20mA,200mA,2A,10A | |
| ACA | True-RMS,20mA,200mA,2A,10A | |
| Resisitance(Ω2W/Ω4W) | 200Ω,2kΩ,20kΩ,200kΩ,2MΩ,10MΩ,100MΩ | |
| Capacitance | 2nF,20nF,200nF,2μF,20μF,200μF,10000μF | |
| Frequency | 20Hz ~ 1MHz | |
| Temerature | Support thermocouple,thermal resistance temperature sensor | |
| Nand Flash Sorage | 1GB | |
| Continuity | Support | |
| Diode test | Support | |
| True-RMS | Support | |
| Period test | 1μs ~ 0.05 s | |
| Max.input voltage | 1000V | |
| Measurement Speed | 150 rdgs/s | |
| Math | MIN. ,MAX. ,average, standard deviation,dBm,dB,Pass/Fail | |
| Graphic display | Relative,Histogram, Trend curves,Bar graphs | |
| Display | 4.3 inch TFT-LCD display | |
| Max.reading | 5½ digits | |
| Interface | USB_Device,USB_Host,LAN | USB_Device,USB_Host,LAN,GPIB |
Ordering Information
| Model | SDM3055 | SDM3055A |
| Standard Accessories | A power cord designed for the instrument and authorized by local country | |
| One pair of leads,One pair of alligator clips | ||
| A USB cable | ||
| A QuickStart Guide | ||
| A "Product Warranty Card" | ||
| A set of computer software of EasySDM | ||
