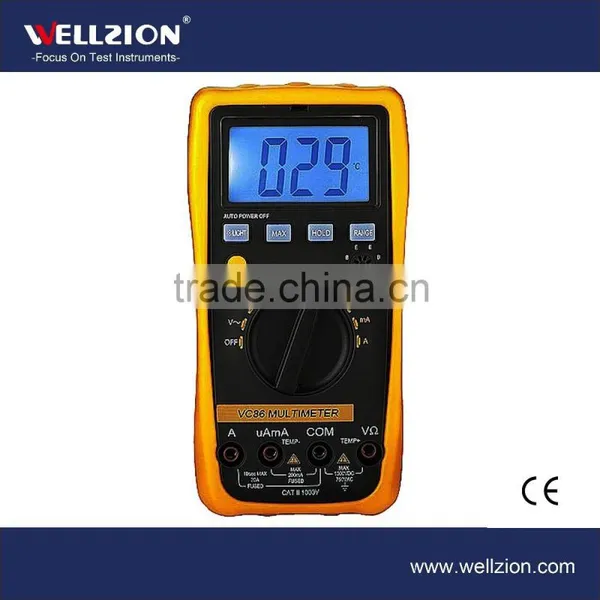

VC86, Handheld Multimeter,3 1/2 Digits

Negotiable MOQ: 40 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Fujian, China

Model Number:

VC86

Measuring Current Range:

200uA/2000uA/20mA/200mA /2A/20A

Xiamen Wellzion Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Fujian, China

Model Number VC86

Measuring Current Range 200uA/2000uA/20mA/200mA /2A/20A

Measuring Voltage Range 200mV/2V/20V/200V/1000V

Measuring Resistance Range 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

Operating Temperature (-40~ 1000)°C

Function & Benefits

Specifications

Basic function	Range	Accuracy
DCV	200mV/2V/20V/200V/1000V	±(0.5%+4)
ACV	200mV/2V/20V/200V/750V	±(0.8%+5)
DCA	200uA/2000uA/20mA/200mA /2A/20A	±(1.0%+5)
ACA	200uA/2000uA/20mA/200mA /2A/20A	±(1.5%+5)
Resistance	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	±(0.8%+3)
Temperature	(-40~ 1000)°C	±(0.8%+4)
	(0~ 1832)°F	±(1.2%+4)
Special Function
NCV	√
Diode and hFE test	√
Continuity alarm	Less than 50Ω ±10Ω
Low battery indicator	Approx. less than 2.4 V
Backlight display	√
Data hold	√
Auto power off	About 15 minutes
Function protection	√
Input impedance	10MΩ
Sampling rate	3 times/s
AC frequency response	40~400Hz
Operation method	Auto or manual range
Max display	1999
LCD size	54x30mm
Battery	3V AAA×2
Power consumption	Quiescent current about 2mA
General Characteristics
Meter color	Body: dark grey; Holster: yellow
Meter weight	290g(including battery)
Meter size	170mm×86mm×35mm
Standard accessory	Test leads, battery, manual, TP01 temperature probe
Standard packing	Gift box
QTY per carton	40pcs
Carton size	385mm305mm465mm
G.W per carton	17kg
