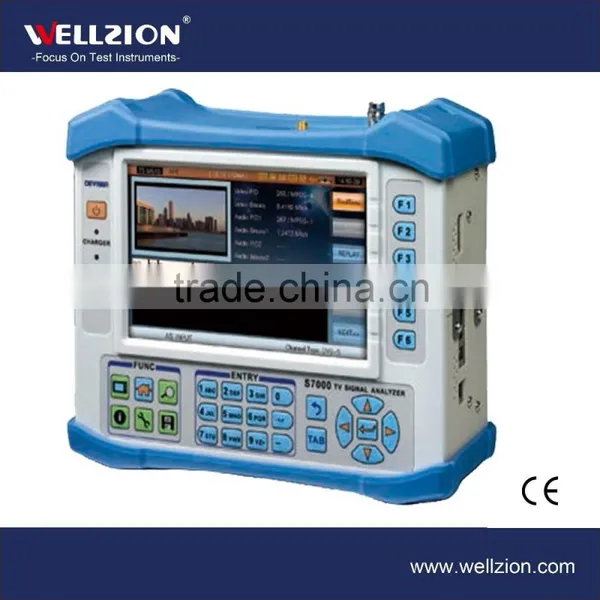

S7000,TV Satellite Meter

Features and Benefits

All standards in one: QAM(J.83A/B/C), 8VSB, DVB-T/H/T2, DVB-S/S2
Digital/Analog TV and Satellite TV analysis
MPEG2 Transport stream analyzer and monitoring via TS-ASI input &RF input
Fast spectrum analysis with 5 ~ 2150 MHz frequency span DSP Technology to support different Video decoding: MPEG-2,MPEG-4 and H.264 for 1080i, 720p and 576i, support PAL/NTSC/ SECAM color system
Support SD&HD Video format
DVB-CI module (Conditional Access) for encrypted channels
TS-ASI input and output
TS record and TS replay
IPTV analysis and GPS option
HDMI, LAN and USB interface
7" TFT LCD Display
Working time > 5 hours (battery)

Specifications

Spectrum Analyzer
Frequency Range	5 MHz ~ 1050 MHz (TV), 950 MHz ~ 2150 MHz (Satellite)
Frequency Span	1 MHz ~ 1045 MHz (TV), 10 MHz ~ 1200 MHz(Satellite)
Frquency Step	10 kHz (TV), 1 MHz (Satellite)
Resolution Bandwidth (-3dB)	30kHz, 100kHz, 300kHz, 1MHz,3MHz (TV) 1MHz, 3MHz Auto Select (Satellite)
Level Measurement Range	10 dBμV ~ 120 dBμV (TV) 30 dBμV ~ 120 dBμV (Satellite)
Accuracy Of Measurements	<1.5 dB
Measurement Detector	Peak, sample, AVG (TV) , No Select for Satellite
Reference Level	30 dBμV ~ 120 dBμV
Markers	2 (TV) 1 (Satellite)
Analogue TV Measurement
Standards	B/G, I, D/K, L/L´, M/N
Colour Standards	PAL, SECAM, NTSC
Frequency Step	10 kHz
Hum Measurement	> 50dB
C/N	> 50dB
Level Measurement Range	30 dBμV ~ 120 dBμV
Accuracy Of Measurements	< 1.5 dB
Level Resolution	0.1 dB
Digital CATV Measurement
Modulation Type	16/32/64/128/256 QAM ITU-T J.83 ANNEX A/B/C
Symbol Rate	4.0 MS/s ~ 7.0 MS/s
Power Level Range	30 dBμV ~ 110 dBμV
Level Resolution	0.1 dB
Power Level Accuarcy	±1.5 dB(C/N > 20 dB)
MER Measurement	~40 dB
MER Accuracy	±2.0 dB
BER	1E-3 ~ 1E-9
Constellation	√
DVB-T/H Measurement
Modulation Type	QPSK, 16 QAM, 64 QAM
Power Level Range	25 dBμV ~ 110 dBμV
Level Resolution	0.1 dB
Power Level Accuarcy	±1.5 dB (C/N >20 dB)
MER Measurement	> 30 dB
MER Accuracy	±2.0 dB
CBER/VBER	√
Constellation	√
MER Versus Carriers	√
Echo Pattern	√
DVB-T2 Measurement
Modulation Type	QPSK, 16 QAM, 64 QAM, 256QAM
Power Level Range	25 dBμV ~ 110dBμV
Level Resolution	0.1dB
Power Level Accuarcy	±1.5 dB(C/N >20 dB)
MER Measurement	>30 dB
MER Accuracy	±2.0 dB
CBER/LBER	√
Constellation	√
Echo Pattern	√
ATSC Measurement
Modulation Type	8 VSB
Power Level Range	25 dBμV ~ 110 dBμV
Level Resolution	0.1 dB
Power Level Accuarcy	±1.5 dB(C/N >20 dB)
MER Measurement	>35 dB
MER Accuracy	±2.0 dB
BER	√
Constellation	√
DTMB Measurement
Carriers	C=1, 3780
Power Level Range	25 dBμV ~ 110 dBμV
Level Resolution	0.1 dB
Power Level Accuarcy	±1.5 dB (C/N >20dB)
MER Measurement	>28 dB
MER Accuracy	±2.0 dB
BER	√
Constellation	√
Echo Pattern	√
DVB-S/S2 Measurement
Modulation Type	QPSK, 8PSK
Symbol Rate	2 - 45 MS/s (DVB-S) 1 - 45 MS/s (QPSK DVB-S2) 1 - 45 MS/s (8PSK DVB-S2)
Power Level Range	40 - 110 dBμV
Level Resolution	0.1 dB
Power Level Accuarcy	±1.5 dB (C/N>20dB)
MER Measurement	> 25 dB
MER Accuracy	±2.0 dB
BER	DVB-S (CBER/VBER) DVB-S2 (CBER/LBER)
Constellation	√
Video/Audio Decoder
Video	MPEG1/2/4, H.264
Video Resolution	1080i, 720p and 576i
Audio	MPEG1/2/4, AAC
CAM Module	EN50221 (DVB-CI) PCMCIA interface
TS-ASI Input And Output	√
TS Record	√
TS Analyzer En 50083-9(DVB SPI, ASI)
DVB-ASI Interface	75 Ω BNC
DVB-ASI Clock	270 MHz
DVB-ASI Output Signal Level	1.0 Vp-p nominal
DVB-ASI Return Response	> 15dB
DVB-ASI Input Level	800 mV +/- 10%
TR101290 Monitor	TR101 290 three levels real time monitor
Base Information	Count the PIDs percent according to the type of the streams. Videos, Audios, PSI/SI, Null Packages
PID List	Display all the PIDs in current stream
PCR Monitor	Calculate PCR interval and PCR accuracy
General
Display	7 inches TFT LCD 800 × 480 pixels
Time	Around 5 Hours Charge Time ; >5 Hours Working Time
Dimension (W×H×L)	245 mm × 194 mm × 105mm
Weight Around	2.8 kg

Spectrum Measurement

The sweep span covers TV& Broadcasting signal(5-1050 MHz) and Satellite IF signal (950-2150MHz )

DVB-S/S2 Signal Analysis

Supports DVB-S/S2 standard and provides Power level, MER, BER, constellation measurement

DVB-T/T2 Signal Analysis

TS Analysis and Monitor

S7000 has 8GB hard disk to save TS file and can replay and analysis.
