Heat treatment(headening, annealing, tempering etc.)
It is mainly aims to change the rigidity of the metal materials through the heat treatment to workpieces. For
example:
1.Hardening for various hardware and tools, such as plier, wrench, hammer, ax,screwing tools and shear(orchard shear)
2.Hardening for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin,
chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.
3.Hardening for various electric tools, such as gear and axes.
4.Hardening for machine tools,such as lathe deck and guide rail.
5.Hardening for various hardware metal parts and machined parts, such as shaft, gear chain wheel), cam,
chuck and clamp etc.
6.Hardening for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
7.Annealing of various stainless steel products, such as stainless steel basin,annealed and extruded can,
annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
8.Annealing of various other metal work pieces, such as golf ball head, cue, brass lock, hardware copper
fitting, Kichen knife handle, blade, aluminum pan, aluminum pail, aluminum radiator and various aluminum
products.

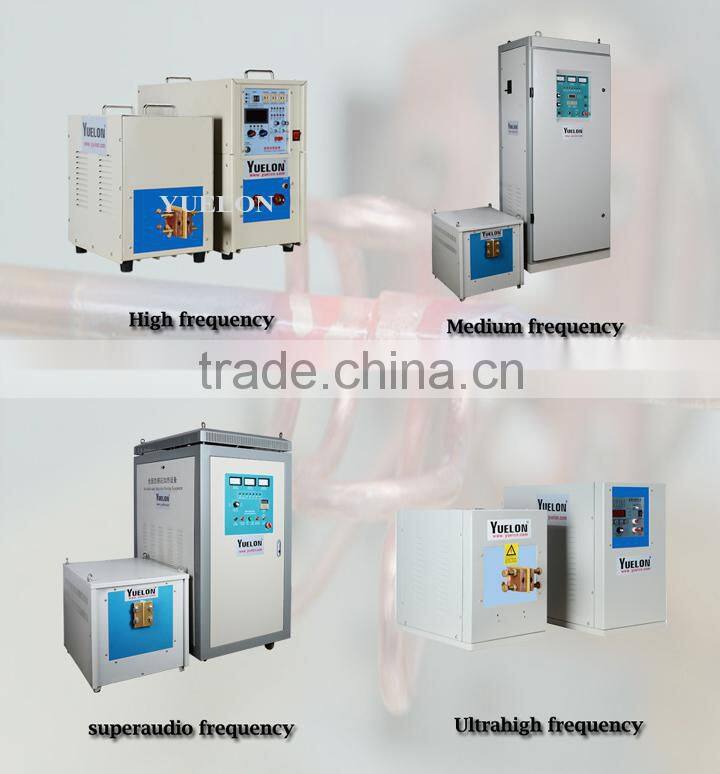

MF-240 Medium frequency induction heating system
Main specifications:
Model: MF-240
Maximum input power: 240KW
Maximum frequency: 1-20KHz (customized according workpiece requires.)
Maximum input current: 360A
Output current: 40-430A
Output voltage: 70-550V
Input voltage: 380VAC three phases, 50 or 60Hz (custom make according customer requires)
Duty cycle: 100%
Auto heating time: 0.1-99.9seconds
Auto retaining time: 0.1-99.9sedonds
Cooling water: ≥0.2Mpa ,≥15L/min
Generator size: (L x W x H):800 x 560 x 1800mm
Generator weight:267KG
Compensating capacitor size (L x W x H):500 x 400 x 500mm
Compensating capacitor weight:87KG
Typical applications:
- ≤400KG of gold,silver,copper, brass melting.
- ≤150KG of steel, stainless steel melting.
- ≤150KG of aluminum , aluminum alloy melting.
- heat for matching of shaft into hole.
- Heat of steel or brass rod and nut for forging
- etc.
The main smelting furnace and heating capacity models:
In the table below for the maximum heating capacity of each melting furnace, cold furnace smelting furnace every time is
50-60 minutes, when the hot stove, furnace smelting time every 20-30 minutes
The main models |
Maximum input power |
Largest smelting capacity |
||
Steel, stainless steel, iron |
Brass, copper, gold, silver, |
Aluminum, aluminum alloys |
||
|
MF-15 Smelting furnace |
15KW |
3KG |
10KG |
3KG |
|
MF-25 Smelting furnace |
25KW |
5KG |
20KG |
5KG |
|
MF-35 Smelting furnace |
35KW |
10KG |
30KG |
10KG |
|
MF-45 Smelting furnace |
45KW |
18KG |
50KG |
18KG |
|
MF-70 Smelting furnace |
70KW |
25KG |
100KG |
25KG |
|
MF-90 Smelting furnace |
90KW |
40KG |
120KG |
40KG |
|
MF-110 Smelting furnace |
110KW |
50KG |
150KG |
50KG |
|
MF-160 Smelting furnace |
160KW |
100KG |
250KG |
100KG |
|
MF-240 Smelting furnace |
240KW |
150KG |
400KG |
150KG |
|
MF-300 Smelting furnace |
300KW |
200KG |
500KG |
200KG |
