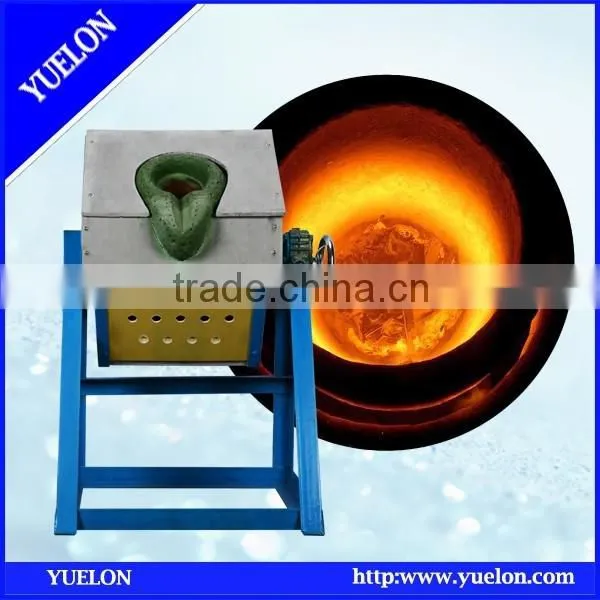

Medium frequency 100kg induction furnace
1.Frequency up to 0.5-1.1MHZ, can effectively control the quench depth, the heating of small parts, particularly suitable for filament-type parts;
2.Using IGBT power devices and the unique variable flow control technology, equipment reliability, low maintenance costs; 3.100% duty cycle,in maximum power can get the 24-hour operation.
4. With a constant current / constant power control, efficient heating;
5. output power,frequency,current full display.
6. installation is simple,just take electricity and water can be used,without hand installation
7. small, Space-saving,easy to install and maintain.
8. automatically controlled adjustable heating, insulating power and time, will help provide
9. high quality of the repetitive heating and simplify workers to operate;
YONGKANG YUELON ELECTRONIC EQUIPMENT CO.,LTD
YUELON is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction heating equipment and systems. Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial heating process. that are used for application such as brazing, annealing, quenching, forging, melting, shrink fitting etc.
our induction heating machine are Available from 2KW to 1500KW deliverable output power with 0.5KHZ to 1.1MHZ operating frequency range. All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series): 0.2-20KHZ
High frequency series (abbr. HF series): 30-100KHZ
Superaudio frequency series (abbr. SF series): 8-40KHZ
Ultrahigh frequency series (abbr. UF series) : 100-1000KHZ
Main characteristics:
Category |
Model |
Maximum Input power |
Oscilating frequency |
Maximum Input current |
Input voltage |
The range of operating voltage |
Duty cycle |
Medium frequeny series |
MF-15 |
15KW |
1-20KHZ |
23A |
3phase 380V50Hz |
70-550V |
100% |
MF-25 |
25KW |
36A |
|||||
MF-35 |
35KW |
51A |
|||||
MF-45 |
45KW |
68A |
|||||
MF-70 |
70KW |
105A |
|||||
MF-90 |
90KW |
135A |
|||||
MF-110 |
110KW |
170A |
|||||
MF-160 |
160KW |
240A |
|||||
MF-240 |
240KW |
360A |
|||||
MF-300 |
300KW |
1-20KHZ |
480A |
Feature:
1. IGBT inversion technology reduce operating cost
2. High efficiency up to 90%
3. LC series circuit and voltage feedback design achieve energy saving up to 30% compared with SCR technology induction machine
5. Diode rectification technology make sure high power factor –never less 0.95
6. Soft switch technology and prefect protection system enhance good reliability
7. Suitable for heating medium size of part.
1.All-solid-state IGBT frequency conversion and power adjustment, soft-switching responance dual-control and frequency automatic tracking technology is the reliability of guarantee. module and soft switching inverting technologies are used in the production of the generator, higher reliability can be achieved;
2.Small size and portable , compared with SCR controlled machine, only 1/10 working space is needed, greatly reduce occupation space;
3.High efficiency and energy saving: a high power factor and power efficiency within the scope of full power.
4.With wide frequency range from 1-20KHZ automatic trackin ability, no need adjustment at scene.
5.100% duty cycle , 24hours continuous working ability at maximum power.
6.Constant output voltage or power control modes are alternative;
7.Full display of output power, output frequency, output voltage and current.
8.The timer function: heating time and retaining time: 0.1~99.9second.
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
...
