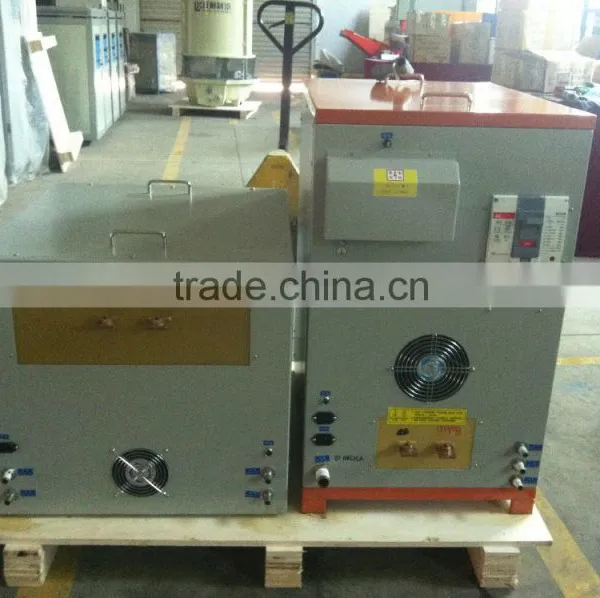

2015 China Manufacturer 100% duty Electric Furnace Melting for metal

FOB Price

USD $5,800 - $5,800 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port NINGBO/SHANGHAI
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Type:	Induction Furnace	Usage:	Melting Furnace
Place of Origin:	Zhejiang, China	Brand Name:	YUELON, YUELON	Model Number:	MF-160
Voltage:	380v	Power(W):	160kw	Dimension(LWH):	12809601080
Weight:	430kg	Certification:	CE	Warranty:	one year
After-sales Service Provided:	No overseas service provided

Product Description

2015 China Manufacturer 100% duty Electric Furnace Melting for metal

An induction furnace uses induction to heat metal to its melting point. Once molten, the high-frequency magnetic field can also be used to

stir the hot metal, which is useful in ensuring that alloying additions are fully mixed into the melt. Most induction furnaces consist of a tube of water-cooled copper rings surrounding a container of refractory material. Induction furnaces are used in most modern foundries as a cleaner method of

melting metals than a reverberatory furnace or a cupola. Sizes range from a kilogram of capacity to a hundred tonnes capacity.

Company Information

YONGKANG YUELON ELECTRONIC EQUIPMENT CO.,LTD

YUELON is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction heating equipment and systems. Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial heating process. that are used for application such as brazing, annealing, quenching, forging, melting, shrink fitting etc.
our induction heating machine are Available from 2KW to 1500KW deliverable output power with 0.5KHZ to 1.1MHZ operating frequency range. All our products are divided into four major series according to the frequency:

Medium frequency series (abbr. MF series): 0.2-20KHZ
High frequency series (abbr. HF series): 30-100KHZ
Superaudio frequency series (abbr. SF series): 8-40KHZ
Ultrahigh frequency series (abbr. UF series) : 100-1000KHZ

MF Category Model

Category	Model	Maximum Input power	Oscilating frequency	Maximum Input current	Input voltage	The range of operating voltage	Duty cycle
Medium frequeny series	MF-15	15KW	1-20KHZ	23A	3phase 380V50Hz	70-550V	100%
	MF-25	25KW		36A
	MF-35	35KW		51A
	MF-45	45KW		68A
	MF-70	70KW		105A
	MF-90	90KW		135A
	MF-110	110KW		170A
	MF-160	160KW		240A
	MF-240	240KW		360A
	MF-300	300KW	1-20KHZ	480A

Melting Capacity

Main models and recommend applications:

Model	Max. melting capacity of Steel ,stainless steel	Max melting capacity of Gold, silver, copper, bronze	Max melting capacity of aluminum
MF-15 15KW furnace	3kg	10kg	3kg
MF-25 25KW furnace	5kg	20kg	5kg
MF-35 35KW furnace	10kg	30kg	10kg
MF-45 45KW furnace	18kg	50kg	18kg
MF-70 70KW furnace	25kg	100kg	25kg
MF-90 90KW furnace	40kg	120kg	40kg
MF-110 110KW furnace	50kg	150kg	50kg
MF-160 160KW furnace	100kg	250kg	100kg

Our Services

We offer complete service :

Before sales

Our professional technical recommend the right machine,and can also customise special machine as customer’s requirement and special parts.

Sales following

During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales

Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).

Supply pictures or video help customer to install machine.

Provide long-terms technical support
