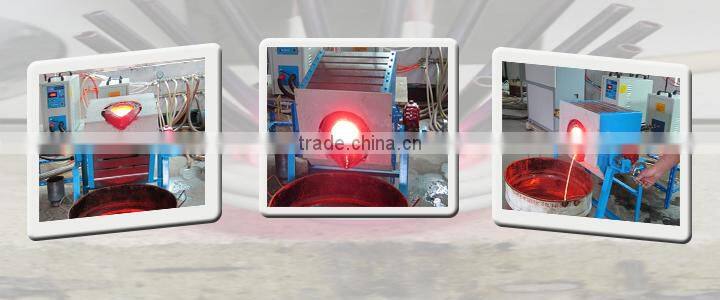

China manufacturer high quality scrap metal Induction Melting furnace
An induction furnace uses induction to heat metal to its melting point. Once molten, the high-frequency magnetic field can also
be used to stir the hot metal, which is useful in ensuring that alloying additions are fully mixed into the melt. Most induction
furnaces consist of a tube of water-cooled copper rings surrounding a container of refractory material. Induction furnaces are used in most modern foundries as
a cleaner method of melting metals than a reverberatory furnace or a cupola. Sizes range from a kilogram of capacity to a hundred
tonnes capacity.
YONGKANG YUELON ELECTRONIC EQUIPMENT CO.,LTD
YUELON is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction heating equipment and systems.
Our company was established in 1998 and is privately held.
Precision induction heating solutions are our specialty. Use induction heating to improve the efficiency and effectiveness for industrial heating process.
that are used for application such as brazing, annealing, quenching, forging, melting, shrink fitting etc.
our induction heating machine are Available from 2KW to 1500KW deliverable output power with 0.5KHZ to 1.1MHZ operating frequency range.
All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series): 0.2-20KHZ
High frequency series (abbr. HF series): 30-100KHZ
Superaudio frequency series (abbr. SF series): 8-40KHZ
Ultrahigh frequency series (abbr. UF series) : 100-1000KHZ
Category |
Model |
Maximum Input power |
Oscilating frequency |
Maximum Input current |
Input voltage |
The range of operating voltage |
Duty cycle |
|
Medium frequeny series |
MF-15 |
15KW |
1-20KHZ |
23A |
3phase 380V50Hz |
70-550V |
100% |
MF-25 |
25KW |
36A |
|||||
MF-35 |
35KW |
51A |
|||||
MF-45 |
45KW |
68A |
|||||
MF-70 |
70KW |
105A |
|||||
MF-90 |
90KW |
135A |
|||||
MF-110 |
110KW |
170A |
|||||
MF-160 |
160KW |
240A |
|||||
MF-240 |
240KW |
360A |
|||||
MF-300 |
300KW |
1-20KHZ |
480A |
Main models and recommend applications:
Model |
Max. melting capacity of Steel ,stainless steel |
Max melting capacity of Gold, silver, copper, bronze |
Max melting capacity of aluminum |
MF-15 15KW furnace |
3kg |
10kg |
3kg |
MF-25 25KW furnace |
5kg |
20kg |
5kg |
MF-35 35KW furnace |
10kg |
30kg |
10kg |
MF-45 45KW furnace |
18kg |
50kg |
18kg |
MF-70 70KW furnace |
25kg |
100kg |
25kg |
MF-90 90KW furnace |
40kg |
120kg |
40kg |
MF-110 110KW furnace |
50kg |
150kg |
50kg |
MF-160 160KW furnace |
100kg |
250kg |
100kg |
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
