aluminum automatic cookware bottom heating equipment
- 50 Set / Sets per Month
- NINGBO/SHANGHAI
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | YUELON | Model Number: | STYL160 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
We provide high quality induction brazing machine to welding stainless steel plate, aluminum sheet and heating element into one whole body at one time for electric heating pan, pot, kettle as per the requirements of the clients with multi heating station.
High power electron tube high frequency power supply is used as the heating power supply, and the hydraulic system is used as drive force. The running is stable, control is precise, operation is simple and product up-to-standard rate is high. The PLC control is adopted to realize functions such as automatic counting, automatic timing, heat quantity control and technical process programming, making it the best equipment for the production of the new generation of electro-heating stainless steel kitchen utensils.
Main specifications:

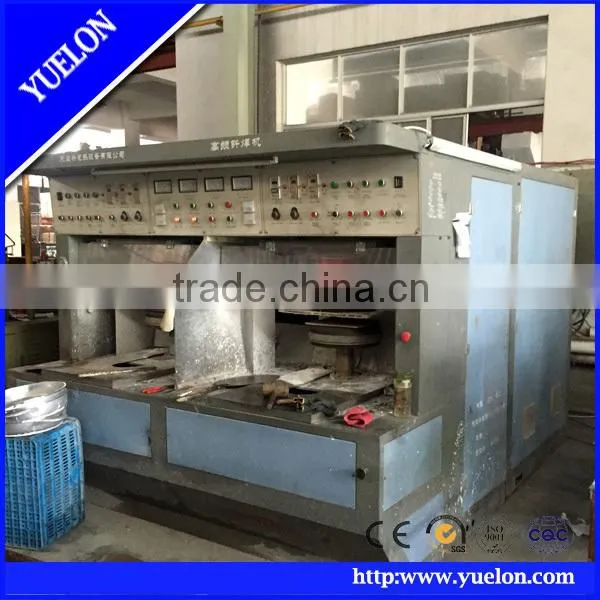

Rotary type cookware pan pot bottom induction heating machine is a hightech equipment which developed by our engineers through absorbing the advanced technology of same kind heating machine at home and abroad.
This machine mainly used for cookware(stainless steel pan, pot, boiler, kettle) pre-heating before multi-layer compound bottom pressure welding. and working together with the friction press machine, and controlled by several sets microcomputer.
The device uses a rotary structure, and six workpiece support head are distributed uniformly on the cast aluminum turntable, turn the dial every 60-degree angle; and pneumatic lifting; This device equipped with four or five induction heads and each pan bottom has four to five times heating.
Cookware bottom Induction Heating machine advantages:
1. Using the embedded microcomputer control, strong anti-interference ability and high reliability.
2. more evenly heating, small temperature difference between the center and the edge, guaranteed the pan bottom welding quality.
3.The machine working automatically cycle, and thus reduce the labor intensity.
4. Multi-induction heads.
5. Heavy-caliber cylinder, using 160mm cylinder, fast heat transfer and low loss.
6. Digital display of operating mode and easy maintenance.
compared with straight type compound pan/pot bottom heating machine, rotary cookware bottom heating machine has the following advantages:
1. Each pot was heated by a plurality of induction heads several times, each induction head can be adjusted to the size of the different stalls, thus more uniform heating, the temperature difference between the center and the edge is very small, all the pot heating effects are basically the same, so as to ensure the fight quality end;
2. operation of the workers can stay in a fixed position, do not pick and place workpiece back and forth; the device automatically cycle work, do not put away after each pot raise pressing the start button, the workers can work sitting in a chair, greatly reduces the labor intensity;
3. Pick and place workpiece are carried outside of the turntable, giant slalom space, easy to pick and place the pot , pot height unrestricted, wide application;
4. easy automation of the future, further savings in manpower.
Compared with other manufacturers of rotary pan pot bottom heating machines, there are several advantages:
1. multi-induction head: Other manufacturers generally install three induction head, and we install four or five induction head. In this way, reduce the power load each induction head is not easy to burn, and make the pot temperature is more uniform.
2. cast aluminum turntable: other manufacturers generally use iron welding processing, heavy, easy to rust, installation and maintenance difficulties; mechanical inertia, the indexer easily damaged; difficult to eliminate stress, lack of distortion. And we cast aluminum turntable, without the above shortcomings;
3. large diameter cylinder: Other manufacturers generally use a diameter of 125mm, and we use the 160mm cylinder, thus more pressure, the heating plate and bottom contacts more closely, heat and fast, low loss.
4. embedded computer control, anti-interference ability, high reliability;
5. Digital display working status, easy operation and maintenance.
IGBT super-audio Power supply: 50KW, 100KW, 160KW, 200KW
Frequency: 10-40KHz
Induction heating head: four/five
Yuelon is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction
heating equipment and systems. our company was established in 1998 and is privately held. Precision
induction heating solutions are our specialty. Use induction heating to improve the efficiency and
effectivenesfor industrial heating process. That are used for application such as brazing. annealing,hardening,
forging, melting, shrink fitting etc.
Our induction heating machine are Available from 3kw to 1500kw deliverable output power with 0.5KHZ to1.1M
HZ operating frequency range. All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series):0.2-20KHZ
High frequency series (abbr. HF series):30-100KHZ
Superaudio frequency series (abbr. SF series):5-40KHZ
Ultrahigh frequency series (abbr. UF series):100-1100KHZ
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
