Yuelon is specialized in researching and manufacturing of solid-state medium to ultrahigh frequency induction
heating equipment and systems. our company was established in 1998 and is privately held. Precision
induction heating solutions are our specialty. Use induction heating to improve the efficiency and
effectivenesfor industrial heating process. That are used for application such as brazing. annealing,hardening,
forging, melting, shrink fitting etc.
Our induction heating machine are Available from 3kw to 1500kw deliverable output power with 0.5KHZ to1.1M
HZ operating frequency range. All our products are divided into four major series according to the frequency:
Medium frequency series (abbr. MF series):0.2-20KHZ
High frequency series (abbr. HF series):30-100KHZ
Superaudio frequency series (abbr. SF series):5-40KHZ
Ultrahigh frequency series (abbr. UF series):100-1100KHZ

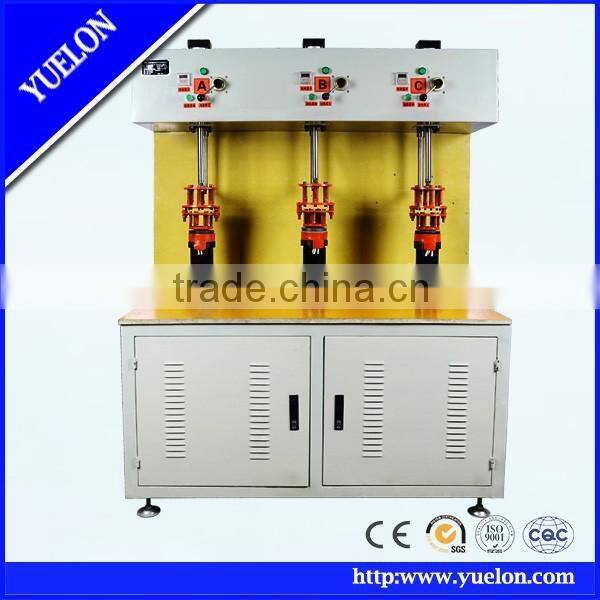

3-Station cookware induction brazing machine
3-station induction brazing machine It is applicable to the welding of such electric heating products as electric heating pan, electric water kettle, frying pan and coffee pot, which can make the stainless steel plate, aluminum sheet and tubular electric heating element of different shapes and thickness form an integral part through one-off metal braze welding.
It uses the IGBT high frequency induction heating machine to provide heating power and the pneumatic system as the drive, it has such features as stable operation, precise control, easy operation and high rate of products meeting standards, which is the most ideal equipment for manufacturing on new generation of electric heating stainless steel cookware and kitchen utensil.
Applications:

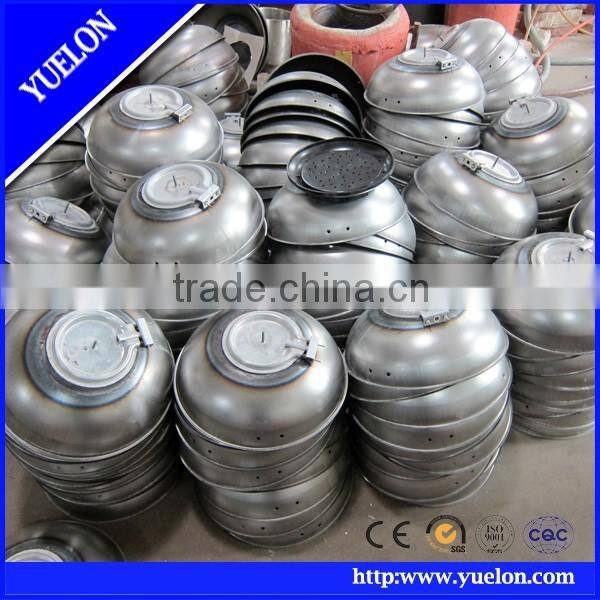

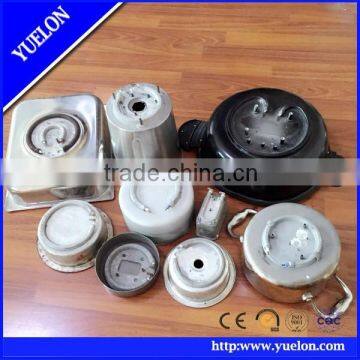

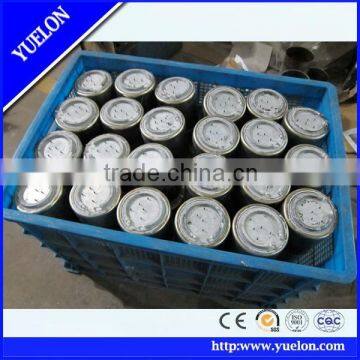

Electric kettle heating plate brazing
Stainless steel pan brazing
Electric boiler heating tube brazing
Soybean milk maker brazing
Coffee maker brazing
Cooking pot brazing
Pan bottom brazing
Pot bottom brazing
Etc.
Power : 25KW . Power option: 25KW, 30KW, 40KW, 60KW
Frequency:10-40KHz
Heating head: three heating head. Option: one /two /three /four
Brazing diameter: 80-250mm
Working process: loading pieces - heating timing - welding finished and pressure retaining till the next cycle.
Operation method: automatic control.
Main specifications:
Model |
3B-25 |
3B-30 |
3B-40 |
3B-60 |
Power |
25KW |
30KW |
40KW |
60KW |
Input voltage |
3P 380V 50-60Hz |
3P 380V 50-60Hz |
3P 380V 50-60Hz |
3P 380V 50-60Hz |
Heating current |
200-1200A |
400-1500A |
400-1800A |
400-2400A |
Cooling way |
Water cooling |
Water cooling |
Water cooling |
Water cooling |
Brazing diameter |
≤φ130mm |
≤φ140mm |
≤φ180mm |
≤φ250mm |
Aluminum thickness |
1.5-2mm |
1.5-2mm |
1.5-2mm |
1.5-2mm |
Size |
1800x1100x1800 |
1800x1100x1800 |
1800x1100x1800 |
1800x1100x1800 |
weight |
360KG |
400kg |
450kg |
500kg |
We offer complete service :
Before sales
Machine have one year quality warranty ,0ne year free replacement spare parts ( 1 set of spare parts free for your stock, in case it need replacement).
