Specifications
1.RJ45(Ethernet) GSM/GPRS Modem2.Based on Wavecom module Q24 Plus
3.TCP/IP stack
4.Services: PPP,TCP, UDP
5.Open AT
RJ45(Ethernet) GSM/GPRS Modem
Based on Wavecom module Q24 Plus
TCP/IP stack
Services: PPP,TCP, UDP
Open AT

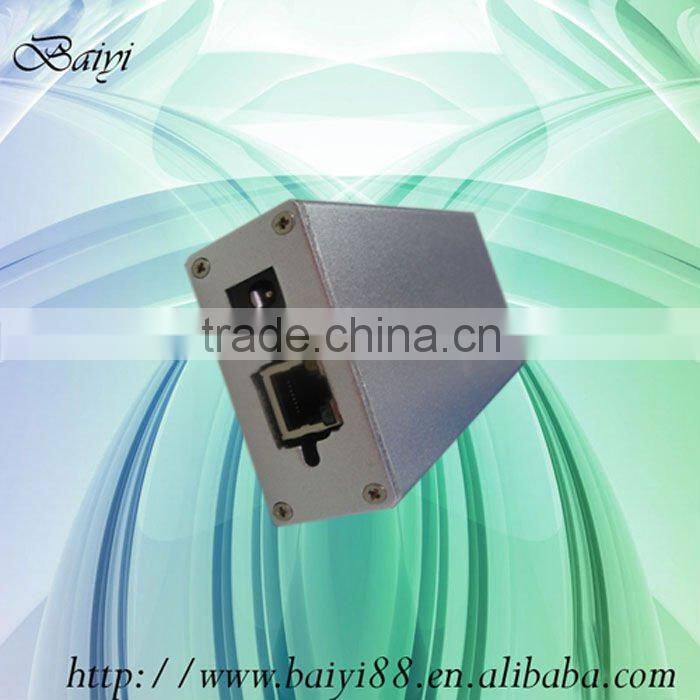

RJ45(Ethernet) GSM/GPRS Modem
General Features:
Industrial design
Aluminum casing
Wireless access to internet
Based on Wavecom module Q24 Plus
With TCP/IP stack
Internet Services: PPP,TCP, UDP
Open AT
Flash memory 32MB, PSRAM 16MB
850/900/1800/1900MHZ
3V SIM card slot
RJ45 (Ethernet) interface
RJ11 interface
Power LED
Signal LED
Data status LED
SIM Application Toolkit
Double tone multi-frequency function (DTMF)
Send and receive voice, data, e-mail, SMS
Support AT command to make remote control (GSM07.07 and 07.05)
GPRS Class 10
Antenna with high sensitivity
Always on-line
Conform with ETSI GSM Phase2+ standard
Output Power:
Class 4(2W @ 850/900MHz)
Class 1(1W @ 1800/1900MHz)
Input voltage: 12V-36V DC
Input current:1A-2A
Working temperature:-20 -+60 degrees
Storage temperature:-25 -+70 degrees
Size: 103*65*28mm
Weight: 170g
Accessories: AC/DC adaptor, RJ45 cable, antenna, CD
Specification for data
GPRS Class 10 max.85.6kbps(downlink
PBCCH support
Coding schemes CS 1,2,3,4
CSD up to 14.4kbps
USSD
Non-transparent mode
Transparent mode
Specifications for SMS via GSM/GPRS
Point to point MO and MT
SMS cell broadcast
Text and PDU mode
