3c copper conductor XLPE insulation power cable

Specifications

this XLPE insulated electric cable is used in electric transmission and distribution system operating at rated LV or HV .



i ) :The Model & Name ====>

YJV :   Cu  conductor , XLPE insulated , PVC sheathed electric cable .

YJLV :  Al conductor , XLPE insulated , PVC sheathed electric cable .

YJV22 :  Cu or Al conductor , XLPE insulated , steel tape armoured , PVC sheathed electric cable .

YJLV22 : Al conductor , XLPE insulated , steel tape armoured , PVC sheathed electric cable .

YJV32,42  : Cu  conductor , XLPE insulated , steel wire armoured PVC sheathed electric cable .

YJLV32,42 : Al conductor , XLPE insulated , steel wire armoured PVC sheathed electric cable .





ii ) : This style cable can use the voltage of 0.6/1,1.8/3 ,3.6/6 6/10 8.7/10 8.7/15 12/20 21/35 26/35KV .





iii ) : STRUCTURE SIZE   ====>

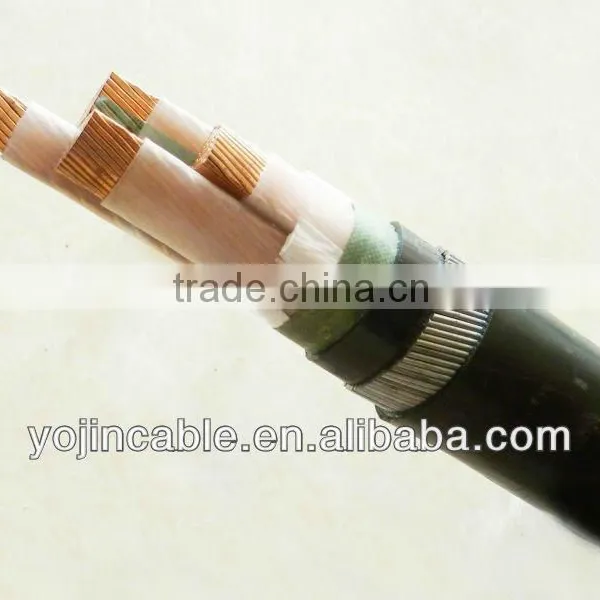

iv ) : PICTURE'S  SHOW  ====>
