Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > mv 11KV XLPE Insulation Copper Tape Screen Power Cable

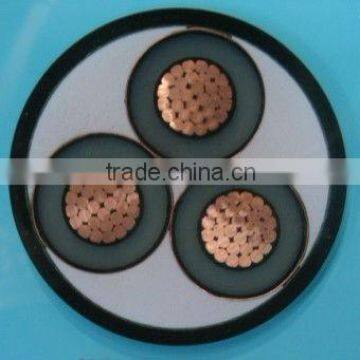

mv 11KV XLPE Insulation Copper Tape Screen Power Cable

Name: mv 11KV XLPE Insulation Copper Tape Screen Power Cable
Brand: yojin or OEM
SKU: 130258297
Availability: InStock

mv 11KV XLPE Insulation Copper Tape Screen Power Cable thumbnail-1

mv 11KV XLPE Insulation Copper Tape Screen Power Cable photo-1

US$ 0.5 - 100 MOQ: 500 Meters

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

yojin or OEM

Model Number:

CU/XLPE/CTS/PVC YJV

Contact Supplier Request Quote Chat Now

Shanghai Yongjin Cable Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name yojin or OEM

Model Number CU/XLPE/CTS/PVC YJV

Insulation Material XLPE

Type Medium Voltage

Application Power Station

Conductor Material Copper

Jacket PVC

Specifications

medium voltage 11KV power cable
ISO9001-2008
copper conductor HT power cable
yojin brand or OEM
IEC60502-2

11KV medium voltage XLPE insulation power cable

Application:
It is used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable and in partial replace of PVC insulated power cable.
Using features:
1. Rated voltage: Uo/U: 26/35kV, 21/35kV, 12/20 kV (24 kV), 8.7/10kV, 8.7/15kV, 6/6kV, 6/10kV and 0.6/1kV.
2. No. Of core: Single-core, Two-core,Three-core,Four-core,Five-core,Six-core.
3. The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit (Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degree.
4. D. C. Resistance of the conductor complies with the stipulations of international standar.
5. The environment temperature should be no lower than zero degree when lay. Otherwise it should be preheated.
6. The cable is laid without horizontal drop limit. The Min. Bending radius of cables should be no smaller than 12 times of cable outer diameter.
7. Working Frequency Voltage Test:
For cable with Uo of 3.6kV or lower: 2.5Uo+2kV/5min without puncture.
For cable with Uo of 3.6Kv~18kV: 3.5Uo/5min without puncture.
For cable with Uo of 21kV and 26 kV: 2.5Uo/30min without puncture.

11kV 3-core unarmored xlpe power cable

Nominal cross sectional area of conductor	Insulation thickness	Sheath thickness	Approx diameter of cable	Approx.weight of cable		D.C.resistance of conductor 20°C		Parcial discharge test 1.5Uo	Testing voltage(a.c.)	Current rating (A)
Nominal cross sectional area of conductor	Insulation thickness	Sheath thickness	Approx diameter of cable	Cu	Al	Cu	Al	Parcial discharge test 1.5Uo	Testing voltage(a.c.)	In air		Direct in ground
mm²	mm	mm	mm	Kg/km	Kg/km	Ω/km	Ω/km	pc	Kv/5min	Cu	Al	Cu	Al
25	4.5	2.4	48.49	2452	1985	≤0.7270	≤1.2000	≤20	22	120	90	125	100
35	4.5	2.5	50.85	2862	2207	≤0.5240	≤0.8680	≤20	22	140	110	155	120
50	4.5	2.6	53.43	3419	2484	≤0.3870	≤0.06410	≤20	22	165	130	180	140
70	4.5	2.7	57.30	4189	2881	≤0.2680	≤0.4430	≤20	22	210	165	220	170
95	4.5	2.8	60.53	5076	3291	≤0.1930	≤0.3200	≤20	22	255	200	265	210
120	4.5	2.9	63.97	5953	3710	≤0.1530	≤0.2530	≤20	22	290	225	300	235
150	4.5	3.0	67.08	6966	4162	≤0.1240	≤0.2060	≤20	22	330	255	340	260
185	4.5	3.1	71.26	8199	4741	≤0.0991	≤0.1640	≤20	22	375	295	380	300
240	4.5	3.3	76.65	10036	5550	≤0.0754	≤0.1250	≤20	22	435	345	435	345
300	4.5	3.5	82.01	12035	6427	≤0.0601	≤0.1000	≤20	22	495	390	485	390
