Specifications
1.9 year modem manafacture in china2.RS485 interface based on module SIM900
3.850/900/1800/1900MHZ
4.one year warrenty
product descriction
RS485 quad-band GSM/GPRS modem
based on Cinterion module SIM900
PPP,TCP, UDP, HTTP, FTP, SMTP, POP3
Data,SMS,internet
RS485 GSM/GPRS modem
General Features:
Industrial design
Aluminum casing
Wireless access to internet
Based on Cinterion(Siemens) module SIM900
with TCP/IP stack
Internet Services: PPP,TCP, UDP, HTTP, FTP, SMTP, POP3
850/ 900/1800/1900MHZ
Comply with ETSI GSM phase 2+
3V SIM card slot
P1 for 485+B
P2 for 485-A
SIM Application Toolkit
Double tone multi-frequency function (DTMF)
GPRS Class 10
Antenna with high sensitivity
Always on-line
Output Power
Class 42W @850/ 900MHz
Class 11W @ 1800/1900MHz
Input voltage5V-35V DC
Input current1A-2A
Standby current: 56mA
Working current: 100-140mA
Working temperature -20 to+55 degrees
Storage temperature:-25 to +70 degrees
Size85*54*25mm
Weight110g

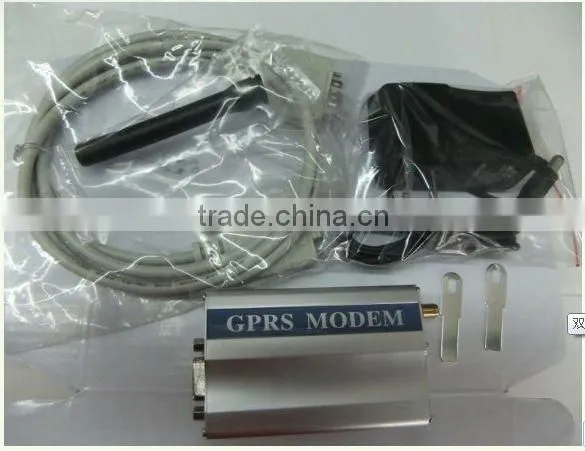

Accessories: AC/DC adaptor, RS485 cable, antenna, 2 mounting plates, CD
Specification for GPRS data
Transmission:
GPRS class 10: max. 86 kbps (DL)
Mobile station class B
PBCCH support
Coding schemes CS 1-4
Specification for CSD data
Transmission:
Up to 14.4 kbps
V.110
Non-transparent mode
USSD support
Specification for SMS:
Point-to-point MO and MT
SMS cell broadcast
Text and PDU mode
Specification for fax:
Group 3, class 2 and class 1
