Help CenterCopper Core PVC Insulation Electric Wire
Related Products
-
450/750v Copper Conductor PVC Insulated Electric WireUS$ 5 - 100MOQ: 500 Rolls -
PVC Insulation Electrical WireUS$ 1 - 50MOQ: 500 Meters
-
Halogen Free Jacket Cable and Wire for Decorative Electrical CableUS$ 0.1 - 5MOQ: 50000 Meters
-
1.5mm 2.5mm 4mm 6mm Copper Wire/electrical Wire and CableUS$ 0.1 - 5MOQ: 50000 Meters
-
Types of Electrical Wire Size 2.5mm Copper Wire PriceUS$ 0.1 - 5MOQ: 50000 Meters
Specifications
this product is fit for AC rated voltage under than 450/750v .production according to IEC or GB standard . CCC IEC certificate
BV : Copper core , PVC insulated , without sheath power line .
BLV: Al core , PVC insulated , without sheath power line .
BVR: Copper core , PVC insulated , flexible power line .
227 IEC 01 (BV) : General purpose single core solid conductor without sheath power line .
227 IEC 05 ( BV) : not more than 90°C, single core solid conductor without sheath power line .
| Nominal sectional area mm2 |
Conductor No/Dia. mm |
Nominal Insulated thick mm |
Max overall Dia. mm |
Condcutor Resistance at 20 |
Min insulated resistance at 70MΩ/km |
Weight Kg/km |
||
| Cu | Al | Cu | Al | |||||
| 1.5 | 1/1.38 | 0.7 | 3.3 | 12.1 | - | 0.011 | 19.2 | - |
| 1.5 | 7/0.52 | 0.7 | 3.5 | 12.1 | - | 0.010 | 20.6 | - |
| 2.5 | 1/1.78 | 0.8 | 3.9 | 7.41 | 11.8 | 0.010 | 30.8 | 15.0 |
| 4 | 1/2.25 | 0.8 | 4.4 | 4.61 | 7.39 | 0.0085 | 45.5 | 21.0 |
| 6 | 1/2.76 | 0.8 | 4.9 | 3.08 | 4.91 | 0.0070 | 65.0 | 29.0 |
| 10 | 7/1.35 | 1.0 | 7.0 | 1.83 | 3.08 | 0.0065 | 110.0 | 52.0 |
| 16 | 7/1.70 | 1.0 | 8.0 | 1.15 | 1.91 | 0.0050 | 170.0 | 70.0 |
| 25 | 7/2.14 | 1.2 | 10.0 | 0.727 | 1.20 | 0.0050 | 270.0 | 110.0 |
| 35 | 7/2.52 | 1.2 | 11.5 | 0.524 | 0.868 | 0.0040 | 364.0 | 150.0 |
| 50 | 19/1.78 | 1.4 | 13.0 | 0.387 | 0.641 | 0.0045 | 500.0 | 200.0 |
| 70 | 19/2.14 | 1.4 | 15.0 | 0.268 | 0.443 | 0.0035 | 688.0 | 269.0 |
| 95 | 19/2.52 | 1.6 | 17.5 | 0.193 | 0.320 | 0.0035 | 953.0 | 360.0 |
| 120 | 37/2.03 | 1.6 | 19.0 | 0.153 | 0.253 | 0.0032 | 1168.0 | 449.0 |
| 150 | 37/2.25 | 1.8 | 21.0 | 0.124 | 0.206 | 0.0032 | 1466.0 | 551.0 |
| 185 | 37/2.52 | 2.0 | 32.5 | 0.099 | 0.164 | 0.0032 | 1808.0 | 668.0 |
ii ) : BV-90 model not more than 90°C,other not more than 70°C,installation temperature not lower than 0°C.
this cable is fit for AC rated voltage below than 450/750V.
the length of cables should be in according to mutual agreements .
the number of cores is one , two ,three, four & five .
More specification provided, contact me for more certificate and more size !
my email id feiyun_yjcable@
skype id feiyun-tang

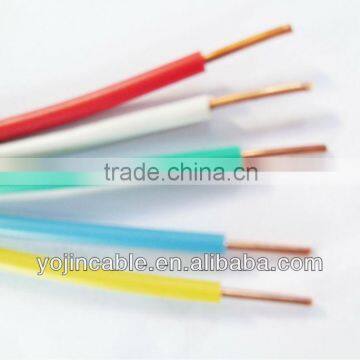

iii ) : PICTURE'S SHOW ====>
Our company has been carrying out Chinese national standard GB 5023 (equivalent to IEC60227) for PVC sheath cable wire and fire resistant cable needed by domestic customer, and for foreigner customers we can manufacture in accordance with BS, DIN and other countries standards.
In addition, we can design and manufacture PVC or XLPE insulated power cable with special characteristics according to needs of customers.
