Product |
DH-Solar 3BB Monocrystalline Silicon Solar Cell |
Model Number |
DH-S-3BB |
Material |
Monocrystalline Silicon |
Size |
156*156mm |
Number of Cells |
1pcs |
Efficiency |
18%~20.4% |
Max. Power |
4.3~4.98watt |
Thickness |
200 μm +/-20μm |

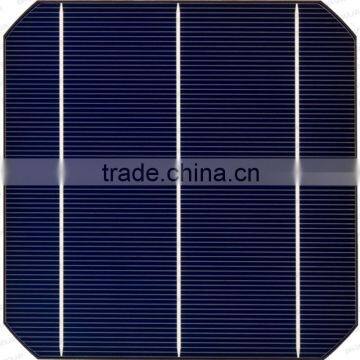

Front |
1.0mm Bus Bars(Silver);Dark Blue Silicon Nitride AR Coating. |

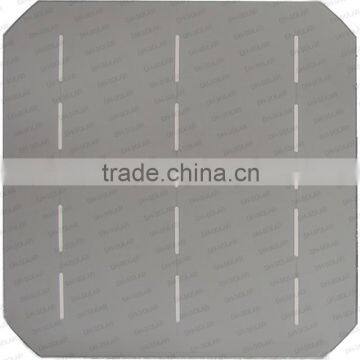

Back |
2.5mm Wide Soldering Pads(Silver);Back Surface Field (Aluminium) |
Electrical Characteristics:
Efficiency Class |
1800 |
1820 |
1840 |
1860 |
1880 |
1900 |
1920 |
1940 |
1960 |
1980 |
2000 |
2020 |
2040 |
Efficiency(%) |
18 |
18.2 |
18.4 |
18.6 |
18.8 |
19 |
19.2 |
19.4 |
19.6 |
19.8 |
20 |
20.2 |
20.4 |
Pmax (w) |
4.40 |
4.45 |
4.50 |
4.54 |
4.59 |
4.64 |
4.69 |
4.74 |
4.79 |
4.84 |
4.89 |
4.93 |
4.98 |
Voc (V) |
0.628 |
0.63 | 0.632 | 0.634 | 0.636 | 0.637 | 0.639 |
0.641 |
0.643 |
0.645 |
0.647 |
0.649 |
0.651 |
Isc (A) |
9.03 |
9.06 | 9.09 | 9.12 | 9.15 | 9.18 | 9.21 |
9.24 |
9.27 |
9.30 |
9.33 |
9.36 |
9.39 |
Vmax (V) |
0.526 |
0.528 | 0.531 | 0.533 | 0.535 | 0.537 | 0.539 |
0.541 |
0.543 |
0.535 |
0.537 |
0.539 |
0.541 |
Imax (A) |
8.39 |
8.45 | 8.51 | 8.57 | 8.62 | 8.68 | 8.74 |
8.79 |
8.83 |
8.87 |
8.91 |
8.95 |
8.99 |
Voltage |
-2.08 |
mV/K | |||||||||||
Current |
4.51 |
mA/K | |||||||||||
Current |
-0.4 |
%/K |
Feature:
Performance and Quality
Industry-Leading Efficiency on P-type Monocrystalline and Multicrystalline Silicon Solar cell
Robust Reliability Performance for Potential Mudule Benefit Beyond 25 years
Compatible with Present Module Manufactureing Process
PID Resistant Confirmed by All Major Customers and testing Labs
100% In-line Optical and Electrical Inspection
